WQ(N)L-G
STAINLESS STEEL SEWAGE SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Head:6~75m
Power:0.75~250kW
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: STAINLESS STEEL SEWAGE SUBMERSIBLE PUMP
- Commodity ID: WQ(N)L-G
Flow: 10~2800m³/h<br/> Head:6~75m<br/> Power:0.75~250kW<br/>
Product Description
1. Adopting stainless steel precision casting shell, it has the characteristics of corrosion resistance,environmental protection，high lift, and large flow rate.
2. The oil chamber adopts a double-sided mechanical seal made of fluororubber, while the outer chamber adopts a single-sided fluororubber mechanical oil seal structure, effectively reducing the problem of sealing water ingress caused by friction between the skeleton oil seal and the shaft.
3. The motor adopts high-temperature wire, F-class insulation, and thermal protection device, effectively extendina the service life of the pump.
4. According to customer requirements, a mixing device can be equipped, which generates a strong mixing force with the rotation of the motor shaft, stirring the sediment in the sewage tank into suspended solids and then discharging them. It can also be equipped with a cutting device, which can remove debris such as long fibers, plastic, paper bags, and straw from the sewage

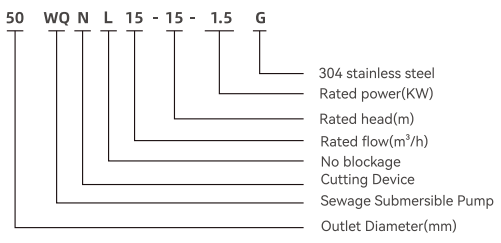

Model Description
Usage and characteristics
Suitable for buildings, hospitals, residential buildings, municipal engineering,road traffic construction, factory sewage, aquaculture，pharmaceutical industry, beverages, seawater and salt water, as well as general corrosive media containing solid particles, long fiber wastewater, and sewage.
Conditions of Use
1.Medium temperature not exceeding +40℃
2.The pH value of the medium is between 2-13
3.The maximum density of the medium is 1050kg/m³
4.The power frequency is 50Hz, and the voltage fluctuation range is 0.9-1.1 times the rated value
5.Diving depth not exceeding 5m
-
1. Class H Enameled Wire: Resistant to high temperature of 180℃ -
2.Dual Bearings: Increase service life and operate more stably -
3. Rotor Shaft: The overflow part is welded with stainless steel
-

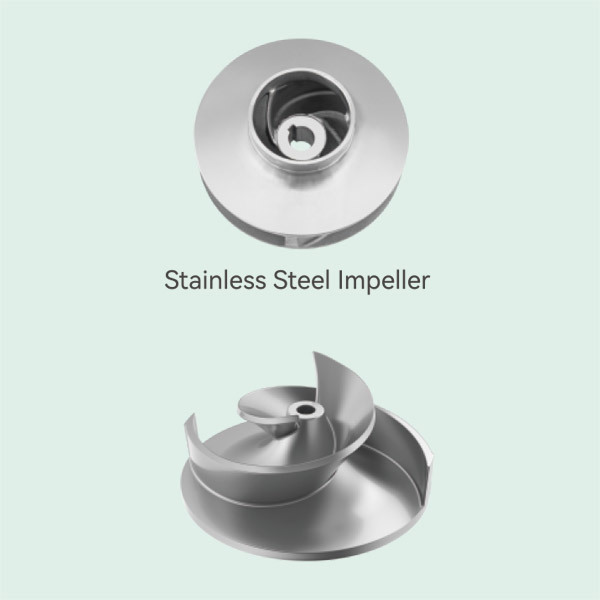

UNOBSTRUCTED IMPELLER(L)
Efficient & Energy Saving
Double helix no clogging,
Good overcurrent capacity, high efficiency -
CUTTING IMPELLER(N)
Wear Resistance
Is made of alloy steel casting
Sharp and not easily damaged
Strong cutting & Efficient drainage
Technical Parameter
NO. Model Rated flow Rated head Power Voltage Synchronous Pipe diameter (m³/h) (m) (kW) (V) (r/min) (mm) 1 50WQ10-10-0.75G 10 10 0.75 380 2900 50 2 50WQD10-10-0.75G 10 10 0.75 220 2900 50 3 65WQ15-6-0.75G 15 6 0.75 380 2900 65 4 65WQD15-6-0.75G 15 6 0.75 220 2900 65 5 50WQ15-10-1.1G 15 10 1.1 380 2900 50 6 50WQD15-10-1.1G 15 10 1.1 220 2900 50 7 65WQ20-6-1.1G 25 6 1.1 380 2900 65 8 65WQD20-6-1.1G 25 6 1.1 220 2900 65 9 50WQ15-12-1.5G 15 12 1.5 380 2900 50 10 50WQD15-12-1.5G 15 12 1.5 220 2900 50 11 65WQ25-7-1.5G 25 7 1.5 380 2900 65 12 65WQD25-7-1.5G 25 7 1.5 220 2900 65 13 50WQ15-20-2.2G 15 20 2.2 380 2900 50 14 65WQ25-15-2.2G 25 15 2.2 380 2900 65 15 80WQ40-9-2.2G 40 9 2.2 380 2900 80 16 100WQ50-7-2.2G 50 7 2.2 380 2900 100 17 50WQ15-25-3G 15 25 3 380 2900 50 18 65WQ25-20-3G 25 20 3 380 2900 65 19 80WQ40-15-3G 40 15 3 380 2900 80 20 100WQ50-10-3G 50 10 3 380 2900 100 21 50WQ15-32-4G 15 32 4 380 2900 50 22 65WQ25-25-4G 25 25 4 380 2900 65 23 80WQ40-18-4G 40 18 4 380 2900 80 24 100WQ50-15-4G 50 15 4 380 2900 100 25 50WQ20-32-5.5G 20 32 5.5 380 2900 50 26 65WQ30-25-5.5G 30 25 5.5 380 2900 65 27 80WQ50-18-5.5G 50 18 5.5 380 2900 80 28 100WQ80-10-5.5G 80 10 5.5 380 2900 100 29 150WQ100-7-5.5G 100 7 5.5 380 2900 150 30 50WQ20-40-7.5G 20 40 7.5 380 2900 50 31 65WQ30-32-7.5G 30 32 7.5 380 2900 65 32 80WQ50-22-7.5G 50 22 7.5 380 2900 80 33 100WQ80-15-7.5G 80 15 7.5 380 2900 100 34 150WQ100-10-7.5G 100 10 7.5 380 2900 150 35 50WQ20-50-11G 20 50 11 380 2900 50 36 65WQ30-50-11G 30 50 11 380 2900 65 37 80WQ45-42-11G 45 42 11 380 2900 80 38 100WQ100-20-11G 100 20 11 380 2900 100 39 150WQ180-11-11G 180 11 11 380 2900 150 40 65WQ30-60-15G 30 60 15 380 2900 65 41 80WQ45-52-15G 45 52 15 380 2900 80 42 100WQ100-25-15G 100 25 15 380 2900 100 43 150WQ180-15-15G 180 15 15 380 2900 150 44 200WQ220-10-15G 220 10 15 380 2900 200 45 50WQ20-70-18.5G 20 70 18.5 380 2900 50 46 65WQ40-60-18.5G 40 60 18.5 380 2900 65 47 80WQ70-40-18.5G 70 40 18.5 380 2900 80 48 100WQ90-35-18.5G 90 35 18.5 380 2900 100 49 150WQ180-18-18.5G 180 18 18.5 380 2900 150 50 200WQ250-15-18.5G 250 15 18.5 380 2900 200 51 50WQ20-75-22G 20 75 22 380 2900 50 52 65WQ40-70-22G 40 70 22 380 2900 65 53 80WQ70-50-22G 70 50 22 380 2900 80 54 100WQ100-40-22G 100 40 22 380 2900 100 55 150WQ180-21-22G 180 21 22 380 2900 150 56 200WQ300-15-22G 300 15 22 380 2900 200 57 100WQ100-20-11G 100 20 11 380 1450 100 58 150WQ180-11-11G 180 11 11 380 1450 150 59 200WQ250-9-11G 250 9 11 380 1450 200 60 250WQ500-3-11G 500 3 11 380 1450 250 61 100WQ100-25-15G 100 25 15 380 1450 100 62 150WQ180-15-15G 180 15 15 380 1450 150 63 200WQ250-11-15G 250 11 15 380 1450 200 64 250WQ500-5-15G 500 5 15 380 1450 250 65 100WQ100-30-18.5G 100 30 18.5 380 1450 100 66 150WQ180-18-18.5G 180 18 18.5 380 1450 150 67 200WQ250-15-18.5G 250 15 18.5 380 1450 200 68 250WQ500-7-18.5G 500 7 18.5 380 1450 250 69 100WQ100-35-22G 100 35 22 380 1450 100 70 150WQ200-20-22G 200 20 22 380 1450 150 71 200WQ300-16-22G 300 16 22 380 1450 200 72 250WQ500-9-22G 500 9 22 380 1450 250 73 100WQ100-45-30G 100 45 30 380 1450 100 74 150WQ180-30-30G 180 30 30 380 1450 150 75 200WQ250-22-30G 250 22 30 380 1450 200 76 250WQ600-9-30G 600 9 30 380 1450 250 77 300WQ800-7-30G 800 7 30 380 1450 300 78 350WQ1000-6-30G 1000 6 30 380 980 350 79 100WQ100-50-37G 100 50 37 380 1450 100 80 150WQ200-35-37G 200 35 37 380 1450 150 81 200WQ300-25-37G 300 25 37 380 1450 200 82 250WQ600-12-37G 600 12 37 380 1450 250 83 300WQ800-9-37G 800 9 37 380 1450 300 84 350WQ1000-6-37G 1000 6 37 380 1450 350 85 350WQ1200-6-37G 1200 6 37 380 980 350 86 100WQ100-55-45G 100 55 45 380 1450 100 87 150WQ200-40-45G 200 40 45 380 1450 150 88 200WQ350-28-45G 350 28 45 380 1450 200 89 250WQ600-15-45G 600 15 45 380 1450 250 90 300WQ800-12-45G 800 12 45 380 1450 300 91 350WQ1000-8-45G 1000 8 45 380 1450 350 92 350WQ1200-8-45G 1200 8 45 380 980 350 93 100WQ100-60-55G 100 60 55 380 1450 100 94 150WQ180-50-55G 180 50 55 380 1450 150 95 200WQ250-40-55G 250 40 55 380 1450 200 96 250WQ600-20-55G 600 20 55 380 1450 250 97 300WQ800-15-55G 800 15 55 380 1450 300 98 350WQ1000-10-55G 1000 10 55 380 1450 350 99 150WQ200-60-75G 200 60 75 380 1450 150 100 200WQ300-45-75G 300 45 75 380 1450 200 101 250WQ600-25-75G 600 25 75 380 1450 250 102 300WQ800-20-75G 800 20 75 380 1450 300 103 350WQ1000-15-75G 1000 15 75 380 1450 350 104 400WQ1300-13-75G 1300 13 75 380 1450 400 105 400WQ1600-10-75G 1600 10 75 380 980 400 106 150WQ200-65-90G 200 65 90 380 1450 150 107 200WQ300-50-90G 300 50 90 380 1450 200 108 250WQ600-30-90G 600 30 90 380 1450 250 109 300WQ800-25-90G 800 25 90 380 1450 300 110 350WQ1000-18-90G 1000 18 90 380 1450 350 111 400WQ1300-16-90G 1300 16 90 380 1450 400 112 150WQ200-70-110G 200 70 110 380 1450 150 113 200WQ400-55-110G 400 55 110 380 1450 200 114 250WQ600-38-110G 600 38 110 380 1450 250 115 300WQ800-30-110G 800 30 110 380 1450 300 116 350WQ1000-22-110G 1000 22 110 380 1450 350 117 400WQ1600-15-110G 1600 15 110 380 1450 400 118 150WQ200-75-132G 200 75 132 380 1450 150 119 200WQ400-60-132G 400 60 132 380 1450 200 120 250WQ600-48-132G 600 48 132 380 1450 250 121 300WQ800-35-132G 800 35 132 380 1450 300 122 350WQ1000-28-132G 1000 28 132 380 1450 350 123 400WQ1600-18-132G 1600 18 132 380 1450 400 124 250WQ600-60-160G 600 60 160 380 1450 250 125 300WQ800-40-160G 800 40 160 380 1450 300 126 350WQ1000-35-160G 1000 35 160 380 1450 350 127 400WQ1600-20-160G 1600 20 160 380 1450 400 128 500WQ2000-16-160G 2000 16 160 380 1450 500 129 250WQ600-70-185G 600 70 185 380 1450 250 130 300WQ900-40-185G 900 40 185 380 1450 300 131 350WQ1100-38-185G 1100 38 185 380 1450 350 132 400WQ1600-25-185G 1600 25 185 380 1450 400 133 500WQ2200-15-185G 2200 15 185 380 1450 500 134 250WQ750-75-200G 750 75 200 380 1450 250 135 300WQ1000-45-200G 1000 45 200 380 1450 300 136 350WQ1300-35-200G 1300 35 200 380 1450 350 137 400WQ1600-27-200G 1600 27 200 380 1450 400 138 500WQ2500-15-200G 2500 15 200 380 1450 500 139 300WQ1200-45-250G 1200 45 250 380 1450 300 140 350WQ1500-36-250G 1500 36 250 380 1450 350 141 400WQ1600-30-250G 1600 30 250 380 1450 400 142 500WQ2800-15-250G 2800 15 250 380 1450 500 -
