TDW QUICK-DISASSEMBLY PIPELINE CIRCULATION PUMP

TDW

TDW QUICK-DISASSEMBLY PIPELINE CIRCULATION PUMP

Classification:

Pipeline pumps

Max.Flow:12.5~630m³/h
Max.Head: 10~81m
Power: 1.1~132kW

Message

E-Mail:admin@lulinpump.com

Tel:400-8820-878

Detail
TDW40
TDW50
TDW65
TDW80
TDW100
TDW125
TDW150
TDW200
TDW250

Commodity name: TDW QUICK-DISASSEMBLY PIPELINE CIRCULATION PUMP
Commodity ID: TDW

Max.Flow:12.5~630m³/h<br/> Max.Head: 10~81m<br/> Power: 1.1~132kW<br/>

Equipped with standard motors and mechanical seal. Compared to similar type products, this kind of product has a wider high-efficiency zone and a higher pump efficiency. The product design allows for the rear to be pulled out for disassembly, facilitating repairs without affecting the pipeline system.

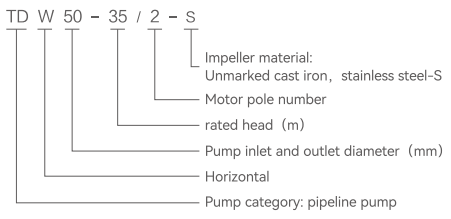

PRODUCT FEATURES

WORKING CONDITIONS

Caliber range: DN40-DN250

Flow range: 20m/h~630m/h

Head range: 10 m~81 m

Power range: 1.5kW~132kW

Power requirements: 3x380 V / 50 Hz

Speed: 2900 r/min, 1480 r/min

Medium temperature: 0~120 °C

Ambient temperature: ≤ 40 °C

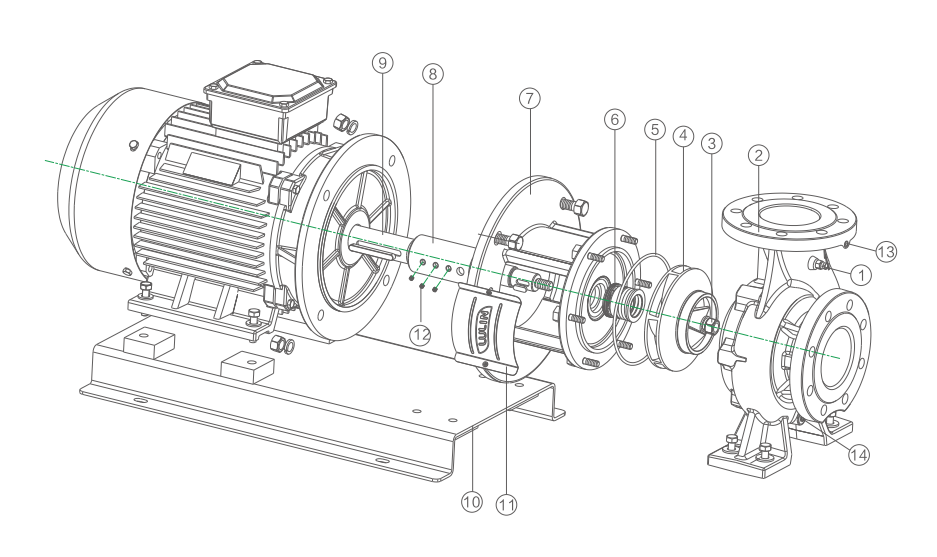

ASSEMBLY SCHEMATIC

Every product, every combination, every detail fully displays different tastes, different personalities，and different cultural connotations.

The inadvertently revealed charm adorns the harmony of the pump industry.

MAIN PARTS AND MATERIALS

The actual appearance and schematic may differ in shape.

PERFORMANCE PARAMETERS

NO.	Part name	Materials
1	Air screw assembly	Stainless steel
2	Pump body	HT200/QT450
3	Hexagon nut	Stainless steel
4	Impeller	HT200/Stainless steel
5	O-ring	Fluorine rubber/Nitrile rubber
9	Mechanical seal	Graphite, silicon carbide
7	Connection (pump cover)	HT200
8	Pump shaft	304
9	Motor	/
10	Base	A3
11	Guard board	304
12	Tightening screw	Stainless steel
13	Water injection plug	Stainless steel
14	Drain plug	Stainless steel

PERFORMANCE PARAMETERS

NO.	Model	Flow Q(m²/h)	Head H(m)	3x380V (kW)	Speed (r/min)
1	TDW40-18/2	20	18	2.2	2900
2	TDW40-25/2	20	25	3	2900
3	TDW40-30/2	25	30	4	2900
4	TDW40-36/2	25	36	5.5	2900
5	TDW40-48/2	25	48	7.5	2900

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	4	8	12.5	16	20	25	28	32
1	TDW40-18/2	2.2	H(m)	19.9	19.8	19.5	19	18	15.8
2	TDW40-25/2	3		27.7	27.5	27.1	26.4	25	22.5
3	TDW40-30/2	4		33.8	33.6	33.1	32.6	31.7	30	28.6	26.1
4	TDW40-36/2	5.5		39	38.8	38.5	38.1	37.3	36	35	32.6
5	TDW40-48/2	7.5		49.8	49.7	49.5	49.4	49	48	46.6	44.2

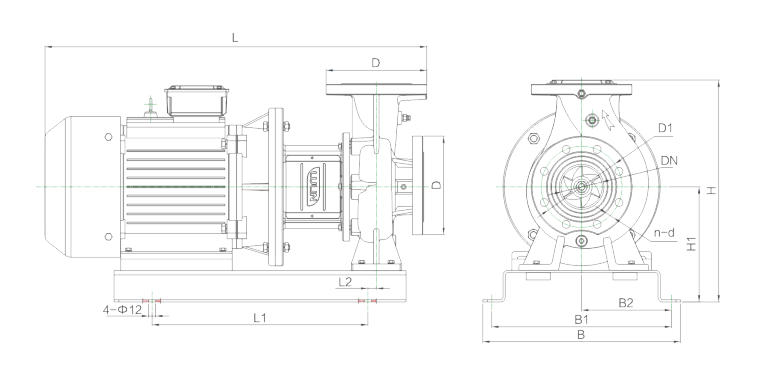

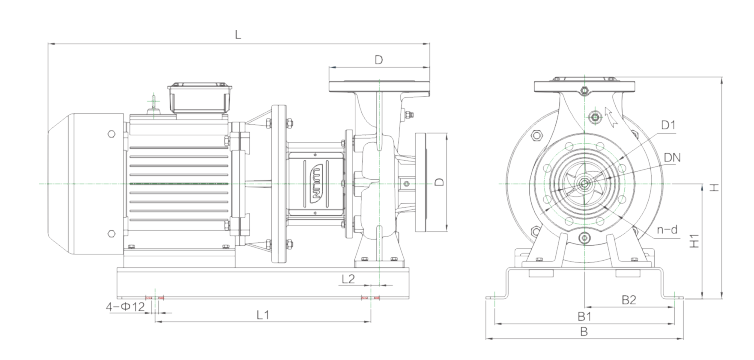

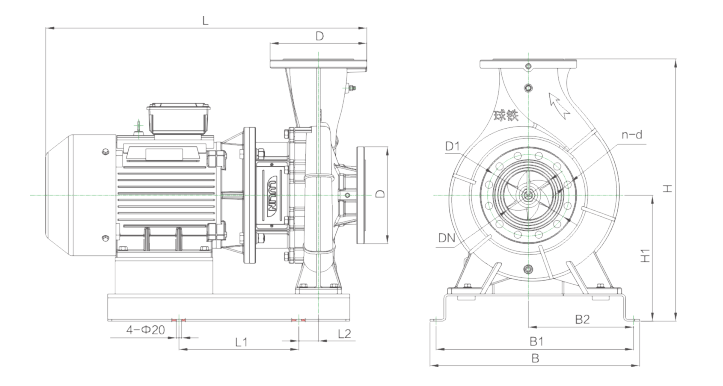

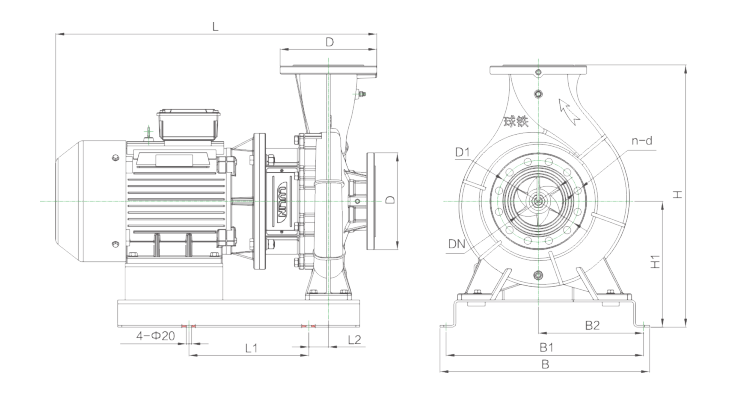

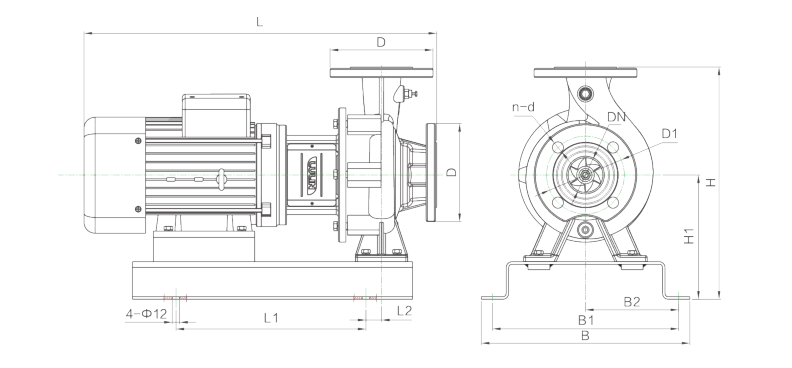

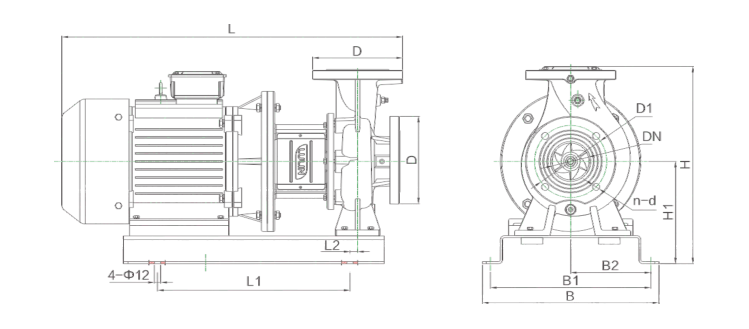

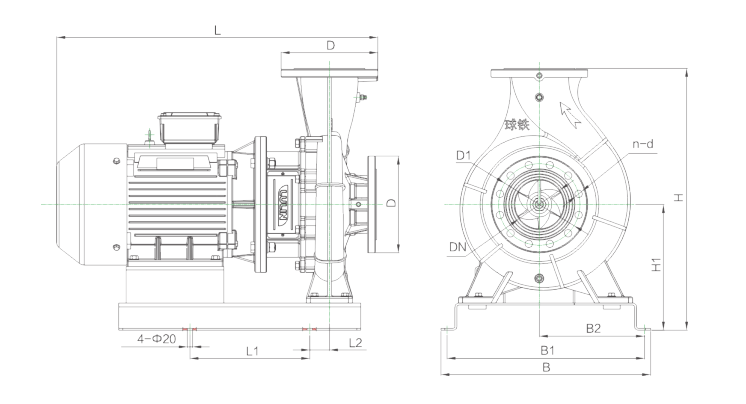

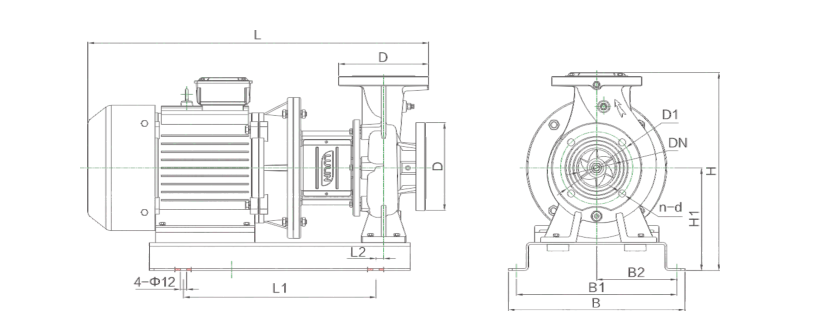

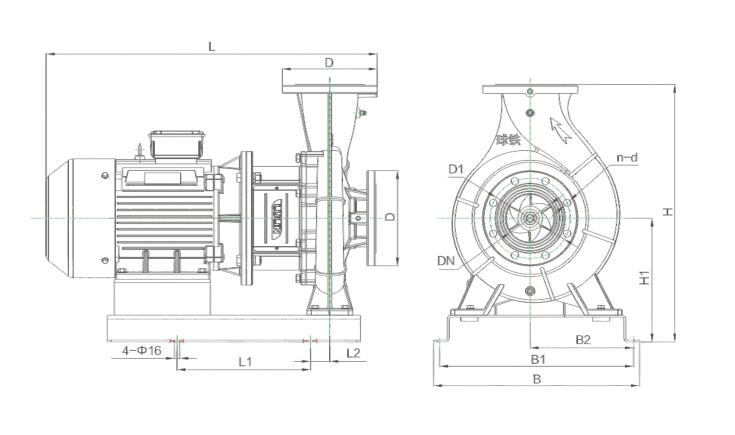

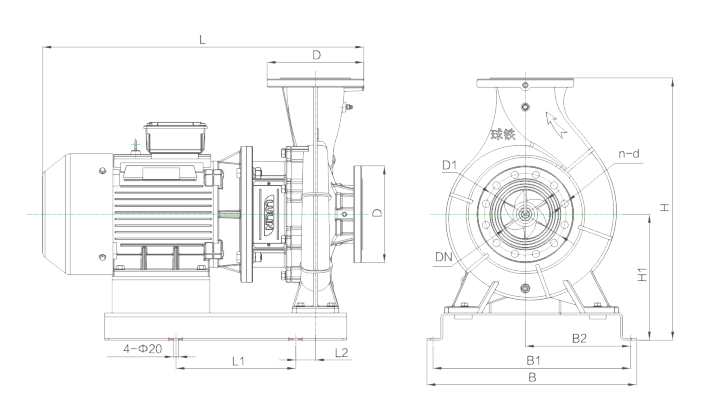

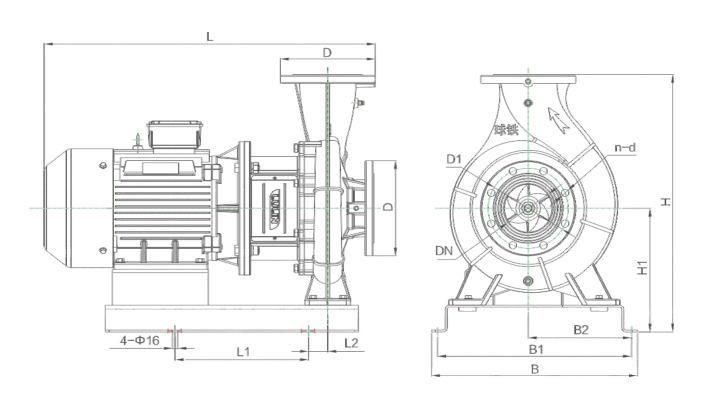

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW40-18/2	538	300	25	335	300	150	370	200	150	110	40	4-φ18
2	TDW40-25/2	582	300	25	335	300	150	370	200	150	110	40	4-φ18
3	TDW40-30/2	593	300	45	370	335	168	370	200	150	110	40	4-φ18
4	TDW40-36/2	690	315	70	380	345	172	422	230	150	110	40	4-φ18
5	TDW40-48/2	690	315	70	380	345	172	422	230	150	110	40	4-φ18

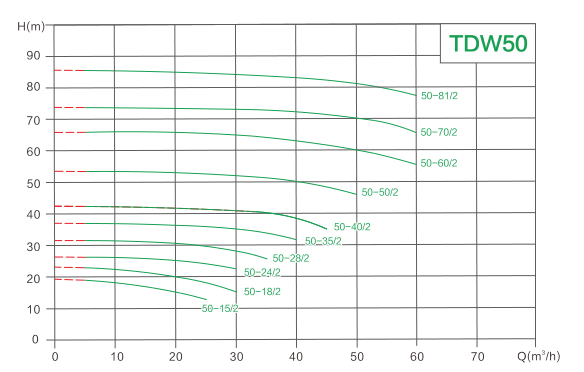

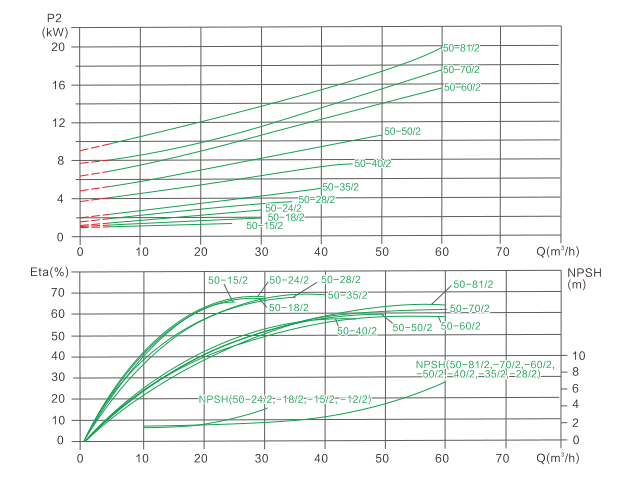

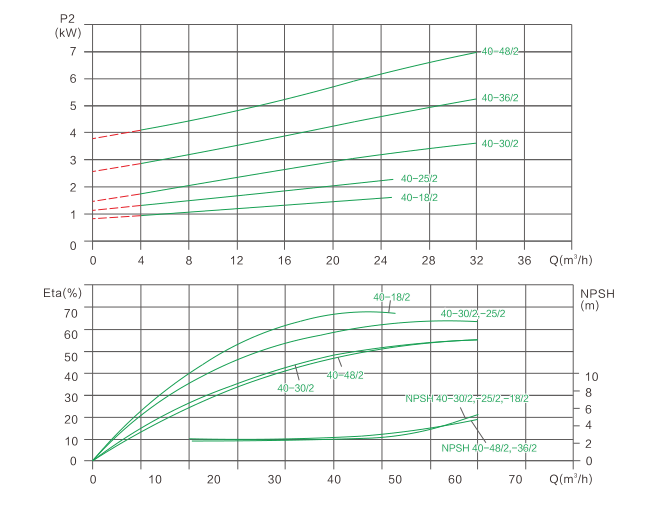

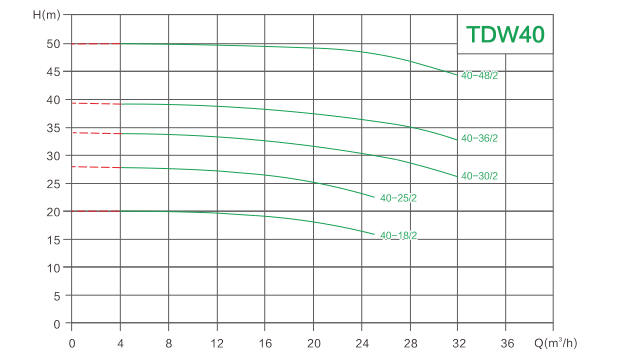

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Flow Q(m²/h)	Head H(m)	3x380V (kW)	Speed (r/min)
1	TDW50-15/2	20	15	1.5	2900
2	TDW50-18/2	25	18	2.2	2900
3	TDW50-24/2	25	24	3	2900
4	TDW50-28/2	30	28	4	2900
5	TDW50-35/2	30	35	5.5	2900
6	TDW50-40/2	35	40	7.5	2900
7	TDW50-50/2	40	50	11	2900
8	TDW50-60/2	50	60	15	2900
9	TDW50-70/2	50	70	18.5	2900
10	TDW50-81/2	50	81	22	2900

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	5	10	16	20	25	30	35	40	45	50	60
1	TDW50-15/2	1.5	H(m)	18.9	18	16.5	15	12.6
2	TDW50-18/2	2.2		22.8	22.3	21	19.8	18	15
3	TDW50-24/2	3		26.2	26	25.5	25	24	22.3
4	TDW50-28/2	4		31.5	31.3	31	30.5	29.5	28	25.5
5	TDW50-35/2	5.5		36.9	36.7	36.5	36.2	35.8	35	33.7	31.5
6	TDW50-40/2	7.5		42.3	42.2	41.9	41.7	41.3	40.8	40	38.3	35
7	TDW50-50/2	11		53.5	53.4	53.1	52.9	52.5	51.9	51.1	50	48.4	45.8
8	TDW50-60/2	15		65.7	65.8	65.7	65.6	65.3	64.7	63.9	62.8	61.6	60	55.4
9	TDW50-70/2	18.5		73.7	73.6	73.4	73.3	73.1	72.9	72.5	72	71.2	70	65.4
10	TDW50-81/2	22		85.5	85.3	85	84.8	84.5	84	83.5	82.8	82.1	81	77.1

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW50-15/2	493	300	25	335	300	150	372	200	165	125	50	4-φ18
2	TDW50-18/2	513	300	25	335	300	150	372	200	165	125	50	4-φ18
3	TDW50-24/2	577	300	25	335	300	150	372	200	165	125	50	4-φ18
4	TDW50-28/2	638	300	40	370	335	168	400	220	165	125	50	4-φ18
5	TDW50-35/2	695	380	70	380	345	172	410	230	165	125	50	4-φ18
6	TDW50-40/2	695	380	70	380	345	172	426	230	165	125	50	4-φ18
7	TDW50-50/2	841	380	70	430	395	198	523	270	165	125	50	4-φ18
8	TDW50-60/2	841	380	70	430	395	198	523	270	165	125	50	4-φ18
9	TDW50-70/2	886	380	70	430	395	198	523	270	165	125	50	4-φ18
10	TDW50-81/2	924	380	70	450	415	208	523	270	165	125	50	4-φ18

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Flow Q(m²/h)	Head H(m)	3x380V (kW)	Speed (r/min)
1	TDW65-12/2	25	12	1.5	2900
2	TDW65-15/2	30	15	2.2	2900
3	TDW65-19/2	30	19	3	2900
4	TDW65-22/2	40	22	4	2900
5	TDW65-30/2	40	30	5.5	2900
6	TDW65-34/2	50	34	7.5	2900
7	TDW65-40/2	50	40	11	2900
8	TDW65-50/2	50	50	15	2900
9	TDW65-60/2	50	60	18.5	2900
10	TDW65-70/2	60	70	22	2900
11	TDW65-80/2	70	80	30	2900

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	10	20	30	40	50	60	70	80	90
1	TDW65-12/2	1.5	H(m)	14.2	13.1	11	7.2
2	TDW65-15/2	2.2		17.9	17.0	15	10.7
3	TDW65-19/2	3		21.7	20.8	19	15.2
4	TDW65-22/2	4		25.1	24.7	23.9	22	17.5
5	TDW65-30/2	5.5		32.4	32.1	31.5	30	26.1
6	TDW65-34/2	7.5		38.6	38.2	37.6	36.4	34	29.6
7	TDW65-40/2	11		43.4	42.9	42.3	41.4	40	37.6
8	TDW65-50/2	15		53.6	53.3	52.7	51.6	50	47.3
9	TDW65-60/2	18.5		63.1	63.2	63	62.3	60	58.8	54.8
10	TDW65-70/2	22		73.4	73.1	72.8	72.7	72.1	70	67.3	65.1	59.9
11	TDW65-80/2	30		87	86.8	86.6	85.6	84.1	82.7	80	77.8	74.2

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW65-12/2	518	300	20	335	300	150	430	230	185	145	65	4-φ18
2	TDW65-15/2	558	300	20	335	300	150	430	230	185	145	65	4-φ18
3	TDW65-19/2	580	300	20	335	300	150	430	230	185	145	65	4-φ18
4	TDW65-22/2	632	300	40	370	335	168	430	230	185	145	65	4-φ18
5	TDW65-30/2	689	380	70	380	345	172	430	230	185	145	65	4-φ18
6	TDW65-34/2	689	380	70	380	345	172	430	230	185	145	65	4-φ18
7	TDW65-40/2	835	380	70	430	395	198	545	285	185	145	65	4-φ18
8	TDW65-50/2	835	380	70	430	395	198	545	285	185	145	65	4-φ18
9	TDW65-60/2	880	380	70	430	395	198	545	285	185	145	65	4-φ18
10	TDW65-70/2	918	380	70	450	415	208	545	285	185	145	65	4-φ18
11	TDW65-80/2	983	450	75	505	470	233	575	285	185	145	65	4-φ18

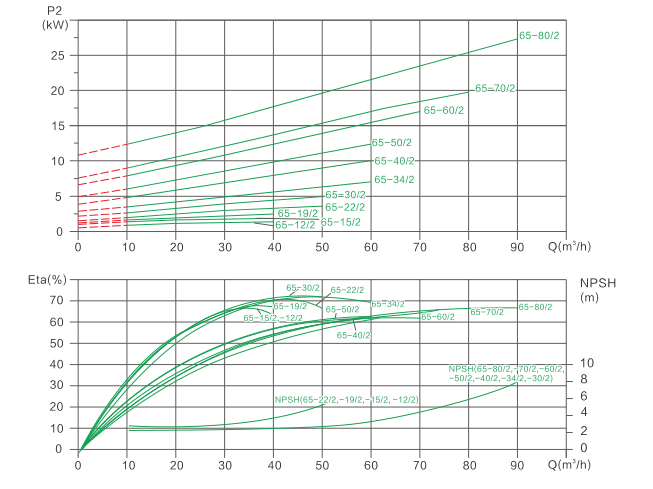

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Flow Q(m³/h)	Head H(m)	3x380V (kW)	Speed (r/ min)
1	TDW80-13/2	50	13	3	2900
2	TDW80-18/2	50	18	4	2900
3	TDW80-22/2	50	22	5.5	2900
4	TDW80-28/2	50	28	7.5	2900
5	TDW80-30/2	80	30	11	2900
6	TDW80-38/2	80	38	15	2900
7	TDW80-47/2	80	47	18.5	2900
8	TDW80-60/2	80	60	22	2900
9	TDW80-70/2	80	70	30	2900

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	10	20	30	40	50	60	70	80	90	100
1	TDW80-13/2	3	H(m)	16.1	15.8	15.2	14.3	13	10.9
2	TDW80-18/2	4		21.1	20.8	20.2	19.2	18	16.2	13.2
3	TDW80-22/2	5.5		24.4	24.1	23.7	23	22	20.5	18	14.3
4	TDW80-28/2	7.5		30.6	30.4	30	29.3	28	26.3	24	20.6
5	TDW80-30/2	11		34.8	34.5	34.2	33.8	33.2	32.4	31.3	30	27.8	24.7
6	TDW80-38/2	15		41.2	41.2	41.1	40.9	40.6	40.1	39.3	38	36	32.9
7	TDW80-47/2	18.5		50.6	50.4	50	49.8	49.6	49.1	48.3	47	44.8	41.4
8	TDW80-60/2	22		61.8	61.6	61.4	61.2	60.9	60.7	60.5	60	58.1	56.9
9	TDW80-70/2	30		71.7	71.5	71.3	71.1	70.9	70.8	70.5	70	68.9	67.1

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW80-13/2	589	300	20	335	300	150	435	230	200	160	80	8-φ18
2	TDW80-18/2	641	300	40	370	335	168	435	230	200	160	80	8-φ18
3	TDW80-22/2	698	380	70	380	345	172	435	230	200	160	80	8-φ18
4	TDW80-28/2	698	380	70	380	345	172	435	230	200	160	80	8-φ18
5	TDW80-30/2	840	380	70	430	395	198	545	285	200	160	80	8-φ18
6	TDW80-38/2	840	380	70	430	395	198	545	285	200	160	80	8-φ18
7	TDW80-47/2	885	380	70	430	395	198	545	285	200	160	80	8-φ18
8	TDW80-60/2	923	380	70	450	415	208	545	285	200	160	80	8-φ18
9	TDW80-70/2	988	450	75	505	470	233	575	285	200	160	80	8-φ18

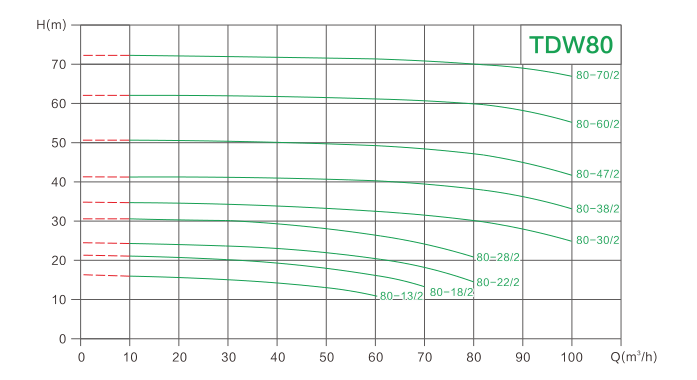

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Flow Q(m³/h)	Head H(m)	3x380V (kW)	Speed (r/ min)
1	TDW100-10/2	60	10	3	2900
2	TDW100-15/2	60	15	4	2900
3	TDW100-17/2	80	17	5.5	2900
4	TDW100-22/2	80	22	7.5	2900
5	TDW100-27/2	100	27	11	2900
6	TDW100-33/2	100	33	15	2900
7	TDW100-40/2	100	40	18.5	2900
8	TDW100-48/2	100	48	22	2900
9	TDW100-52/2	130	52	30	2900

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	10	20	30	40	50	60	70	80	90	100	110	120	130	145	160
1	TDW100-10/2	3	H(m)	14.6	14	13.2	12.3	11.1	10	8.7	6.8
2	TDW100-15/2	4		18.6	18.2	17.7	17.1	16.2	15	13.4	11
3	TDW100-17/2	5.5		21.7	21.5	21.1	20.7	20	19.2	18.3	17	15.3	13	10.4
4	TDW100-22/2	7.5		26.8	26.6	26.3	25.9	25.3	24.5	23.4	22	20.3	18.2	15.8
5	TDW100-27/2	11		31.5	31.3	31.1	30.9	30.7	30.3	29.8	29.2	28.2	27	25.5	23.6	20.8
6	TDW100-33/2	15		37.1	37	36.8	36.6	36.2	35.8	35.3	34.7	33.9	33	31.7	30.1	27.9
7	TDW100-40/2	18.5		43.3	43.2	43.1	42.9	42.7	42.4	42.1	41.6	40.9	40	38.9	37.4	35.3
8	TDW100-48/2	22		51.2	51.1	51	50.8	50.6	50.3	49.9	49.4	48.8	48	46.9	45.3	43.2
9	TDW100-52/2	30		55.3	55.3	55.3	55.3	55.2	55.1	54.8	54.6	54.4	54.2	53.8	53.1	52	49	43.5

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW100-10/2	599	300	20	335	300	150	413	210	220	180	100	8-φ18
2	TDW100-15/2	651	300	40	370	335	168	413	210	220	180	100	8-φ18
3	TDW100-17/2	708	380	70	380	345	172	430	230	220	180	100	8-φ18
4	TDW100-22/2	708	380	70	380	345	172	430	230	220	180	100	8-φ18
5	TDW100-27/2	850	380	70	430	395	198	530	255	220	180	100	8-φ18
6	TDW100-33/2	850	380	70	430	395	198	530	255	220	180	100	8-φ18
7	TDW100-40/2	895	380	70	430	395	198	540	285	220	180	100	8-φ18
8	TDW100-48/2	933	380	70	450	415	208	540	285	220	180	100	8-φ18
9	TDW100-52/2	998	450	75	505	470	233	575	285	220	180	100	8-φ18

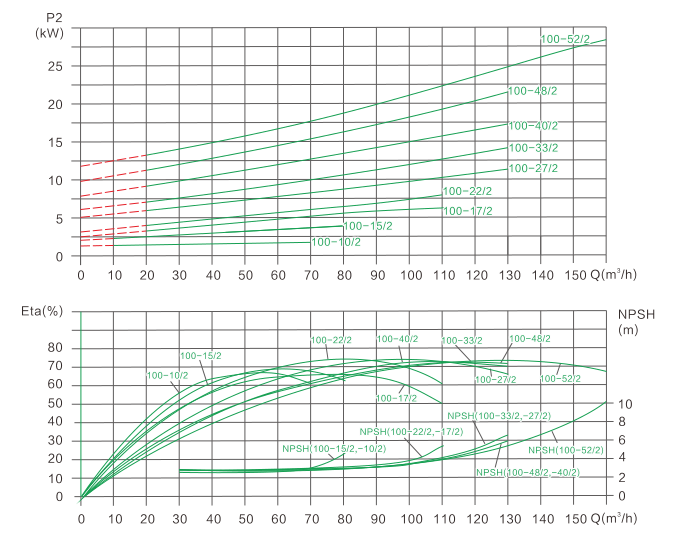

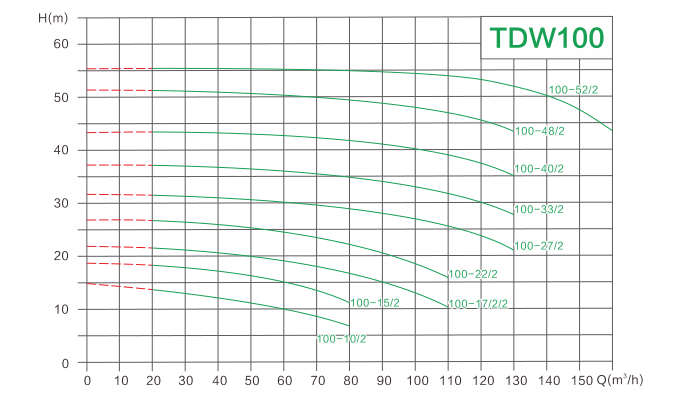

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Flow Q(m³/h)	Head H(m)	3x380V (kW)	Speed (r/ min)
1	TDW125-11/4	120	11	5.5	1450
2	TDW125-14/4	120	14	7.5	1450
3	TDW125-18/4	160	18	11	1480
4	TDW125-22/4	160	22	15	1480
5	TDW125-28/4	160	28	18.5	1480
6	TDW125-32/4	160	32	22	1480
7	TDW125-40/4	160	40	30	1480
8	TDW125-48/4	160	48	37	1480

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	40	60	80	100	120	140	160	180	200
1	TDW125-11/4	5.5	H(m)	12.9	12.7	12.4	11.8	11	9.9	8
2	TDW125-14/4	8		16.2	15.9	15.5	14.9	14	12.8	11.2
3	TDW125-18/4	11		21.5	21.3	21	20.6	19.9	19.1	18	16.4	14.1
4	TDW125-22/4	15		26.7	26.5	26.2	25.7	24.9	23.7	22	19.8	16.7
5	TDW125-28/4	18.5		30.9	30.8	30.7	30.5	30.1	29.3	28	25.8	22.2
6	TDW125-32/4	22		34.6	34.6	34.5	34.4	34	33.3	32	30.2	27.3
7	TDW125-40/4	30		43.9	43.6	43.3	42.9	42.2	41.3	40	38	35.4
8	TDW125-48/4	37		51.5	51.3	51	50.5	49.9	49.1	48	46.4	44.2

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW125-11/4	723	330	55	455	420	230	600	290	250	210	125	8-φ18
2	TDW125-14/4	723	330	55	455	420	230	600	290	250	210	125	8-φ18
3	TDW125-18/4	880	400	90	515	480	240	660	330	250	210	125	8-φ18
4	TDW125-22/4	925	400	90	515	480	240	660	330	250	210	125	8-φ18
5	TDW125-28/4	995	430	105	540	505	257	685	333	250	210	125	8-φ18
6	TDW125-32/4	1035	430	105	540	505	257	685	333	250	210	125	8-φ18
7	TDW125-40/4	1055	430	110	620	585	305	760	360	250	210	125	8-φ18
8	TDW125-48/4	1100	460	120	620	585	305	760	360	250	210	125	8-φ18

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Flow Q(m³/h)	Head H(m)	3x380V (kW)	Speed (r/ min)
1	TDW150-12.5/4	200	12.5	11	1480
2	TDW150-17/4	200	17	15	1480
3	TDW150-21/4	200	21	18.5	1480
4	TDW150-25/4	200	25	22	1480
5	TDW150-33/4	200	33	30	1480
6	TDW150-40/4	200	40	37	1480
7	TDW150-50/4	200	50	45	1480

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	50	80	110	140	170	200	220	240
1	TDW150-12.5/4	11	H(m)	14.6	14.5	14.4	14.2	13.7	12.5	11.1	9.2
2	TDW150-17/4	15		18.8	18.8	18.7	18.5	18	17	16.1	15
3	TDW150-21/4	18.5		23.3	23.1	22.9	22.6	22	21	19.8	17.9
4	TDW150-25/4	22		28	28	27.8	27.3	26.5	25	23.5	21.3
5	TDW150-33/4	30		35.5	35.4	35.2	34.8	34.2	33	31.5	29.6
6	TDW150-40/4	37		43.1	43	42.8	42.4	41.6	40	38.4	36.2
7	TDW150-50/4	45		52.4	52.2	52	51.7	51.1	50	48.7	46.7

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW150-12.5/4	895	400	90	560	525	270	685	330	285	240	150	8-φ22
2	TDW150-17/4	940	400	90	560	525	270	685	330	285	240	150	8-φ22
3	TDW150-21/4	980	400	90	560	525	270	685	330	285	240	150	8-φ22
4	TDW150-25/4	1035	430	110	620	585	315	760	360	285	240	150	8-φ22
5	TDW150-33/4	1060	430	110	620	585	315	760	360	285	240	150	8-φ22
6	TDW150-40/4	1100	460	120	620	585	315	785	360	285	240	150	8-φ22
7	TDW150-50/4	1130	460	120	620	585	315	785	360	285	240	150	8-φ22

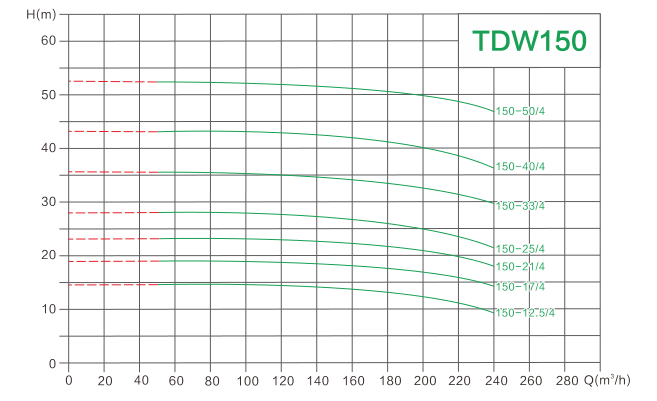

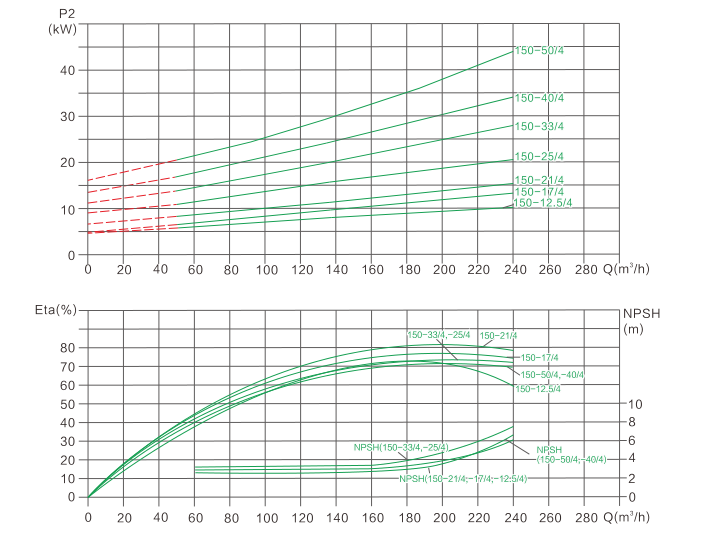

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Flow Q(m³/h)	Head H(m)	3x380V (kW)	Speed (r/ min)
1	TDW200-16/4	300	16	18.5	1480
2	TDW200-19/4	300	19	22	1480
3	TDW200-24/4	300	24	30	1480
4	TDW200-31/4	300	31	37	1480
5	TDW200-36/4	300	36	45	1480
6	TDW200-47/4	300	47	55	1480
7	TDW200-53/4	300	53	75	1480
8	TDW200-12.5/4	400	12.5	22	1480
9	TDW200-20/4	400	20	30	1480
10	TDW200-23/4	400	23	37	1480
11	TDW200-27/4	400	27	45	1480
12	TDW200-32/4	400	32	55	1480
13	TDW200-43/4	400	43	75	1480
14	TDW200-50/4	400	50	90	1480

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	160	200	240	280	320	360	400	440	480
1	TDW200-12.5/4	22	H(m)	17.2	16.9	16.5	15.9	15.1	14	12.5	10.7	8
2	TDW200-20/4	30		24.6	24.4	24	23.6	22.8	21.7	20	17.5	14.2
3	TDW200-23/4	37		28.1	27.8	27.4	26.8	25.9	24.8	23	20.9	18.2
4	TDW200-27/4	45		32.1	31.7	30.2	30.5	29.6	28.4	27	24.9	22.5
5	TDW200-32/4	55		37.5	37.1	36.5	35.7	34.7	33.3	32	29.9	27.7
6	TDW200-43/4	75		47	46.7	46.4	45.9	45.3	44.4	43	41.1	38.6
7	TDW200-50/4	90		52.9	52.8	52.6	52.2	51.7	51	50	48.3	45.5

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW200-12.5/4	1055	430	80	640	600	300	785	360	340	295	200	12-φ22
2	TDW200-20/4	1080	430	75	675	635	318	785	360	340	295	200	12-φ22
3	TDW200-23/4	1105	500	75	675	635	318	860	410	340	295	200	12-φ22
4	TDW200-27/4	1130	500	75	675	635	318	860	410	340	295	200	12-φ22
5	TDW200-32/4	1185	580	105	675	635	318	860	410	340	295	200	12-φ22
6	TDW200-43/4	1255	580	105	675	635	318	935	410	340	295	200	12-φ22
7	TDW200-50/4	1306	640	105	675	635	318	935	410	340	295	200	12-φ22

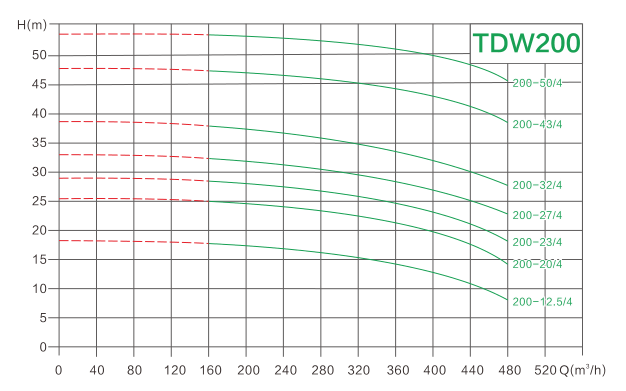

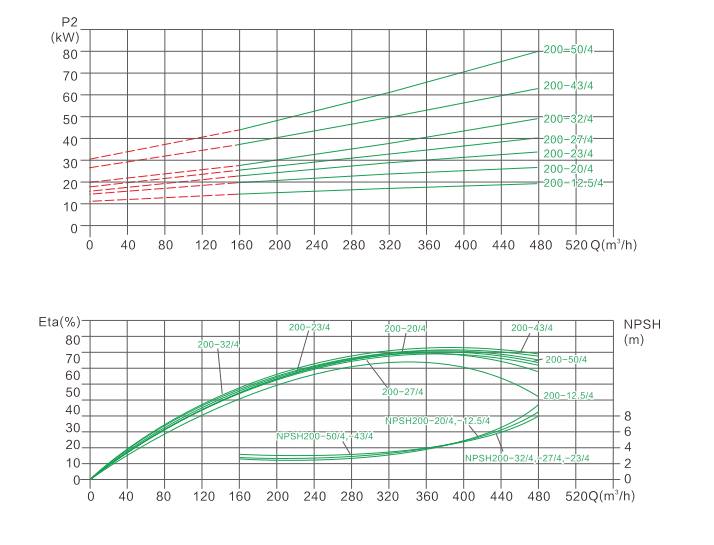

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	90	120	150	180	210	240	270	300	330	360
1	TDW200-16/4	18.5	H(m)	19.6	19.4	19.3	18.9	18.6	17.9	16.8	16	14.9	13.8
2	TDW200-19/4	22		22.5	22.4	22.1	21.6	20.7	20.4	19.8	19	17.2	16.3
3	TDW200-24/4	30		26.1	26	25.8	25.7	25.4	25.1	24.6	24	23.1	21.9
4	TDW200-31/4	37		33.4	33.2	33	32.6	32.2	31.6	31.3	31	29.4	27.7
5	TDW200-36/4	45		38.4	38.2	38	37.9	37.7	37.1	36.4	36	33.8	32.2
6	TDW200-47/4	55		48.7	48.5	48.4	48.2	48.1	47.7	47.5	47	44.9	41.3
7	TDW200-53/4	75		55.7	55.7	55.7	55.5	55.3	54.8	54	53	51.6	50

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW200-16/4	1020	430	80	640	600	300	785	360	340	295	200	12-φ22
2	TDW200-19/4	1055	430	80	640	600	300	785	360	340	295	200	12-φ22
3	TDW200-24/4	1075	500	75	675	635	318	860	410	340	295	200	12-φ22
4	TDW200-31/4	1105	500	75	675	635	318	860	410	340	295	200	12-φ22
5	TDW200-36/4	1130	500	75	675	635	318	860	410	340	295	200	12-φ22
6	TDW200-47/4	1185	580	105	675	635	318	935	410	340	295	200	12-φ22
7	TDW200-53/4	1255	580	105	675	635	318	935	410	340	295	200	12-φ22

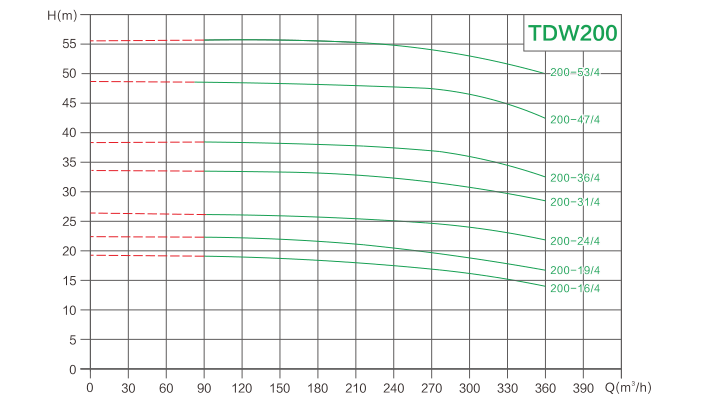

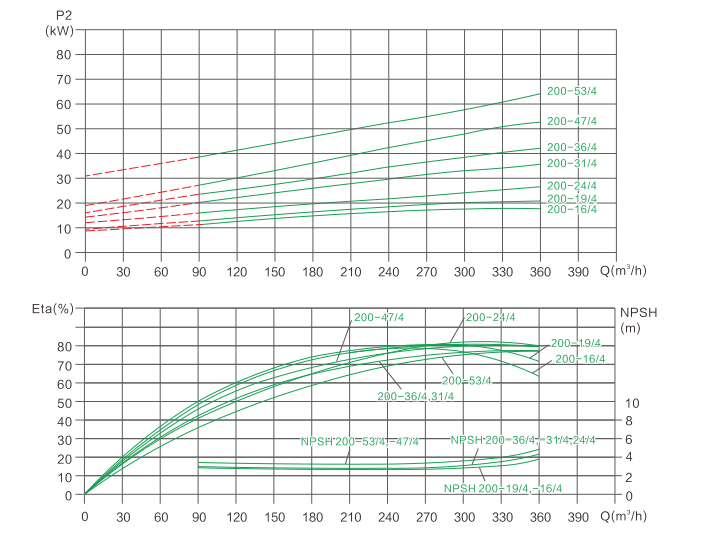

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Flow Q(m³/h)	Head H(m)	3x380V (kW)	Speed (r/ min)
1	TDW250-16/4	500	16	30	1480
2	TDW250-19/4	500	19	37	1480
3	TDW250-22/4	500	22	45	1480
4	TDW250-29/4	500	29	55	1480
5	TDW250-36/4	500	36	75	1480
6	TDW250-47/4	500	47	90	1480
7	TDW250-56/4	500	56	110	1480
8	TDW250-12.5/4	630	12.5	30	1480
9	TDW250-14/4	630	14	37	1480
10	TDW250-17/4	630	17	45	1480
11	TDW250-20/4	630	20	55	1480
12	TDW250-26/4	630	26	75	1480
13	TDW250-32/4	630	32	90	1480
14	TDW250-40/4	630	40	110	1480
15	TDW250-50/4	630	50	132	1480

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	240	300	250	360	420	480	540	600	630	660	720	750
1	TDW250-12.5/4	30	H(m)	18.4	17.9	17.2	17.2	16.4	15.5	14.5	13.2	12.5	11.8	9.9	8.7
2	TDW250-14/4	37		20	19.5	18.9	18.9	18.2	17.5	16.6	15.6	14	13.4	12.6	11.6
3	TDW250-17/4	45		21.8	21.3	20.8	20.8	20.1	19.4	18.6	17.6	17	16.3	14.4	13.4
4	TDW250-20/4	55		24.5	24.1	23.7	23.7	23.1	22.4	21.5	20.5	20	19.3	17.6	16.5
5	TDW250-26/4	75		31.7	31.1	30.6	30.6	29.9	29.1	28.2	26.8	26	25.2	23.1	21.9
6	TDW250-32/4	90		36.7	36.3	35.7	35.7	35.1	34.3	33.5	32.6	32	31.3	29.5	28.4
7	TDW250-40/4	110		46	45.5	44.9	44.9	44.2	43.4	42.3	40.8	40	39.1	36.8	35.5
8	TDW250-50/4	132		55.6	55.2	54.6	54.6	53.9	53.2	52.3	50.9	50	49	46.7	45.4

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW250-12.5/4	1104	430	75	675	635	318	920	410	405	355	250	12-φ26
2	TDW250-14/4	1131	500	75	675	635	318	920	410	405	355	250	12-φ26
3	TDW250-17/4	1159	500	75	675	635	318	920	410	405	355	250	12-φ26
4	TDW250-20/4	1184	580	105	675	635	318	920	410	405	355	250	12-φ26
5	TDW250-26/4	1310	640	105	675	635	318	960	410	405	355	250	12-φ26
6	TDW250-32/4	1360	640	105	675	635	318	960	410	405	355	250	12-φ26
7	TDW250-40/4	1510	640	105	750	710	355	1027	437	405	355	250	12-φ26
8	TDW250-50/4	1620	700	105	750	710	355	1027	437	405	355	250	12-φ26

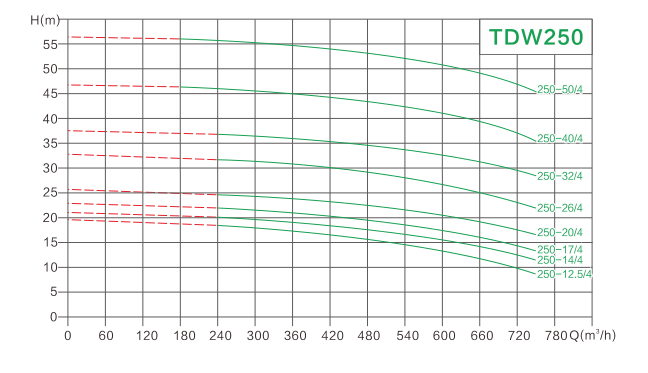

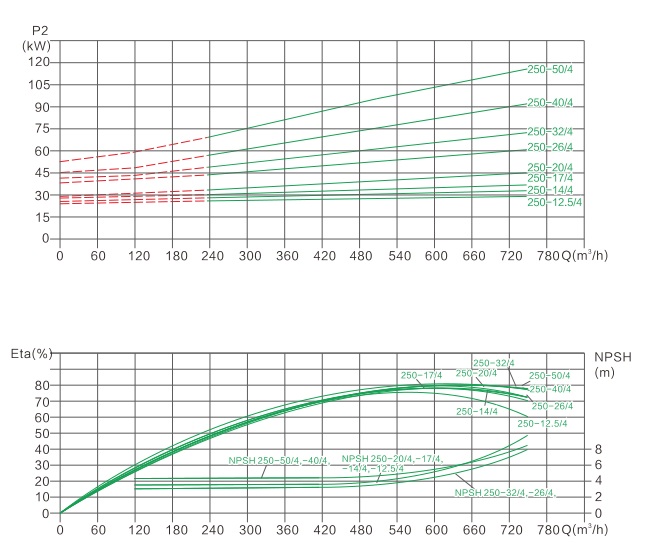

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	150	200	250	300	350	400	450	500	550	600
1	TDW250-16/4	30	H(m)	20.5	20.4	20.1	19.6	19	18.2	17.3	16	14.7	13.3
2	TDW250-19/4	37		22.7	22.4	22.1	21.7	21.3	20.8	20.1	19	18	16.6
3	TDW250-22/4	45		25.7	25.3	25.1	24.7	24.3	23.8	23.1	22	21	19.7
4	TDW250-29/4	55		34.6	34.4	34	33.1	32.6	31.8	30.6	29	26.8	23.9
5	TDW250-36/4	75		39.1	38.8	38.5	38.2	37.8	37.3	36.8	36	34.3	32.5
6	TDW250-47/4	90		53.3	53.1	52.9	52.4	51.8	50.6	49.2	47	44.9	42.5
7	TDW250-56/4	110		61.6	61.4	60.9	60.2	59.5	58.6	57.4	56	53.8	51

DIMENSIONS

NO.	Model	L	L1	L2	B	B1	B2	H	H1	D	D1	DN	n-d
1	TDW250-16/4	1104	430	75	675	635	318	920	410	405	355	250	12-φ26
2	TDW250-19/4	1131	500	75	675	635	318	920	410	405	355	250	12-φ26
3	TDW250-22/4	1159	500	75	675	635	318	920	410	405	355	250	12-φ26
4	TDW250-29/4	1184	580	105	675	635	318	960	410	405	355	250	12-φ26
5	TDW250-36/4	1310	640	105	675	635	318	960	410	405	355	250	12-φ26
6	TDW250-47/4	1360	640	105	725	685	343	1027	437	405	355	250	12-φ26
7	TDW250-56/4	1510	640	105	750	710	355	1027	437	405	355	250	12-φ26

PERFORMANCE GRAPH

Keywords:

Pipeline pumps

COOKIES

required

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

analyze

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

Feature

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

advertise

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.

TDW QUICK-DISASSEMBLY PIPELINE CIRCULATION PUMP

COOKIES

Sorry，当前栏目暂无内容!

Sorry，The current column has no content!
