BWQ-G
STAINLESS STEEL EXPLOSION-PROOF SEWAGE SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Head: 6-60m
Power:0.75-15kw
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: STAINLESS STEEL EXPLOSION-PROOF SEWAGE SUBMERSIBLE PUMP
- Commodity ID: BWQ-G
Flow:7-220m³/h <br/> Head: 6-60m<br/> Power:0.75-15kw
Product Description
1.Adopting stainless steel precision casting shell, it has the characteristics of corrosion resistance, environmental protection,high lift, and large flow rate.
2. The oil chamber adopts a double-sided mechanical seal made of fluororubber, while the outer chamber adopts a single-sided fluororubber mechanical oil seal structure, effectively reducing the problem of sealing water ingress caused by friction between the skeleton oil seal and the shaft.
3. The motor adopts high-temperature wire, F-class insulation, and a thermal protection device, effectively extending the service life of the pump.
4、According to customer requirements, a mixing device can be equipped, which generates a strong mixing force with the rotation of the motor shaft, stirring the sediment in the sewage tank into suspended solids and then discharging them. It can also be equipped with a cutting device, which can remove debris such as long fibers, plastic, paper bags, and straw from the sewage.
5. The explosion-proof level is Ex db llB T4 Gb.

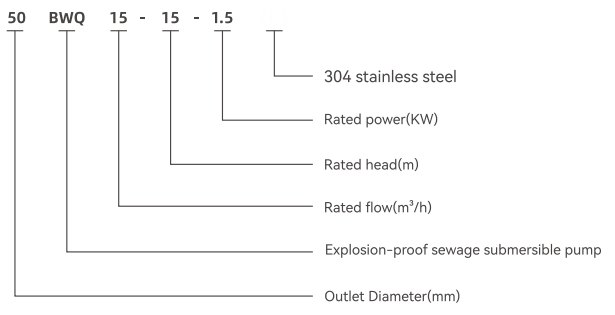

Model Description
Usage and characteristics
Suitable for buildings, hospitals, residential buildings, municipal engineering, road traffic construction, factory sewage, aquaculture， pharmaceutical industry, beverages, seawater, er and saltwater, as well as general corrosive media containing solid particles, long fiber wastewater, and sewage.
Conditions of Use
1. Medium temperature not exceeding +40℃
2. The pH value of the medium is between 2-13
3. The maximum density of the medium is 1050kg/m³
4. The power frequency is 50Hz, and the voltage fluctuation range is 0.9-1.1 times the rated value
5. Diving depth not exceeding 5m
-

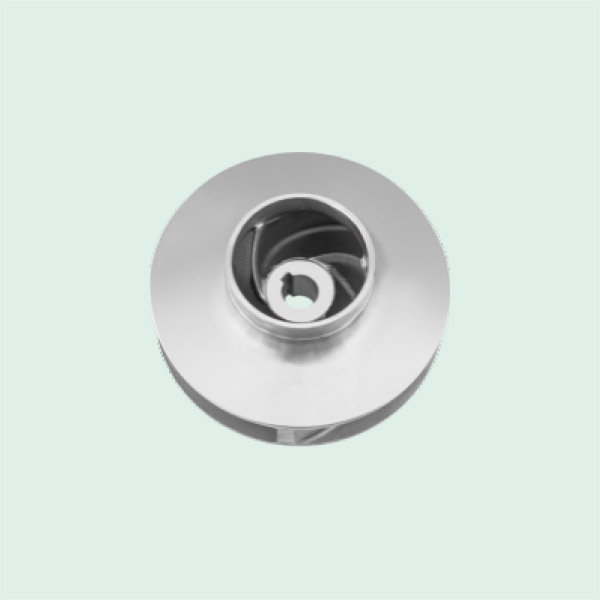

CUTTING IMPELLER
Efficient & Energy Saving
Double helix no clogging,
Good overcurrent capacity, high efficiency
Technical Parameter
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous (mm) (m³/h) (m) (KW) (V) (r/ min) 1 50BWQ10-10-0.75G 50 10 10 0.75 380 2850 2 65BWQ15-6-0.75G 65 15 6 0.75 380 2850 3 50BWQ7-15-1.1G 50 7 15 1.1 380 2850 4 65BWQ20-6-1.1G 65 20 6 1.1 380 2850 5 50BWQ15-15-1.5G 50 15 15 1.5 380 2850 6 65BWQ25-7-1.5G 65 25 7 1.5 380 2850 7 50BWQ15-20-2.2G 50 15 20 2.2 380 2850 8 65BWQ25-15-2.2G 65 25 15 2.2 380 2850 9 80BWQ40-9-2.2G 80 40 9 2.2 380 2850 10 100BWQ50-7-2.2G 100 50 7 2.2 380 2850 11 50BWQ15-25-3G 50 15 25 3 380 2850 12 65BWQ25-20-3G 65 25 20 3 380 2850 13 80BWQ40-15-3G 80 40 15 3 380 2850 14 100BWQ50-10-3G 100 50 10 3 380 2850 15 50BWQ15-32-4G 50 15 32 4 380 2850 16 65BWQ25-25-4G 65 25 25 4 380 2850 17 80BWQ40-18-4G 80 40 18 4 380 2850 18 100BWQ50-15-4G 100 50 15 4 380 2850 19 50BWQ15-40-5.5G 50 15 40 5.5 380 2850 20 65BWQ30-25-5.5G 65 30 25 5.5 380 2850 21 80BWQ50-18-5.5G 80 50 18 5.5 380 2850 22 100BWQ80-10-5.5G 100 80 10 5.5 380 2850 23 150BWQ100-8-5.5G 150 100 8 5.5 380 2850 24 50BWQ20-40-7.5G 50 20 40 7.5 380 2850 25 65BWQ30-32-7.5G 65 30 32 7.5 380 2850 26 80BWQ45-22-7.5G 80 45 22 7.5 380 2850 27 100BWQ80-18-7.5G 100 80 18 7.5 380 2850 28 150BWQ100-10-7.5G 150 100 10 7.5 380 2850 29 50BWQ20-55-11G 50 20 55 11 380 2850 30 65BWQ40-45-11G 65 40 45 11 380 2850 31 80BWQ70-30-11G 80 70 30 11 380 2850 32 100BWQ100-20-11G 100 100 20 11 380 2850 33 150BWQ150-15-11G 150 150 15 11 380 2850 34 200BWQ220-8-11G 200 220 8 11 380 2850 35 50BWQ20-60-15G 50 20 60 15 380 2850 36 65BWQ40-50-15G 65 40 50 15 380 2850 37 80BWQ70-35-15G 80 70 35 15 380 2850 38 100BWQ100-25-15G 100 100 25 15 380 2850 39 150BWQ150-20-15G 150 150 20 15 380 2850 40 200BWQ220-10-15G 200 220 10 15 380 2850 -
