WQ(N)L TYPE B
SEWAGE SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Flow:10~3500m³/h
Head: 10~110m
Power: 0.75~220kW
Head: 10~110m
Power: 0.75~220kW
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail

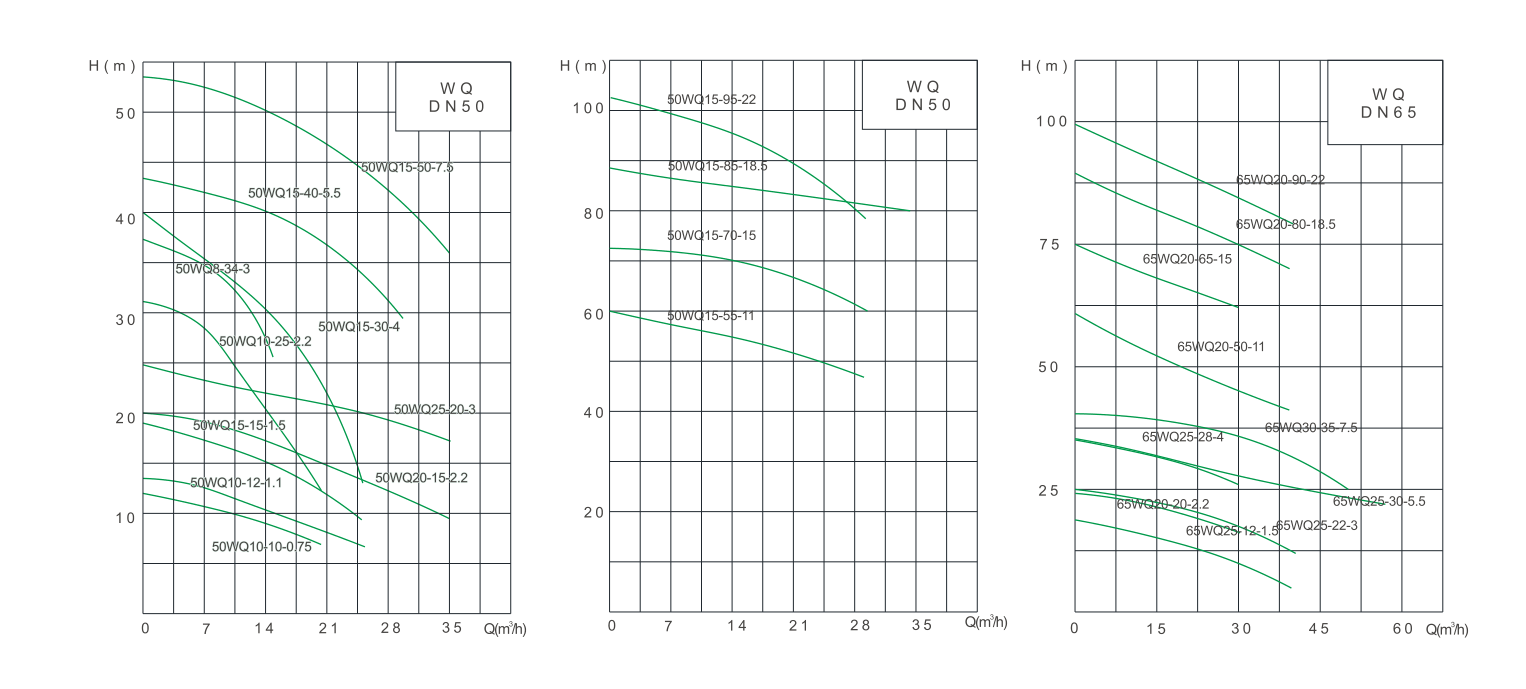

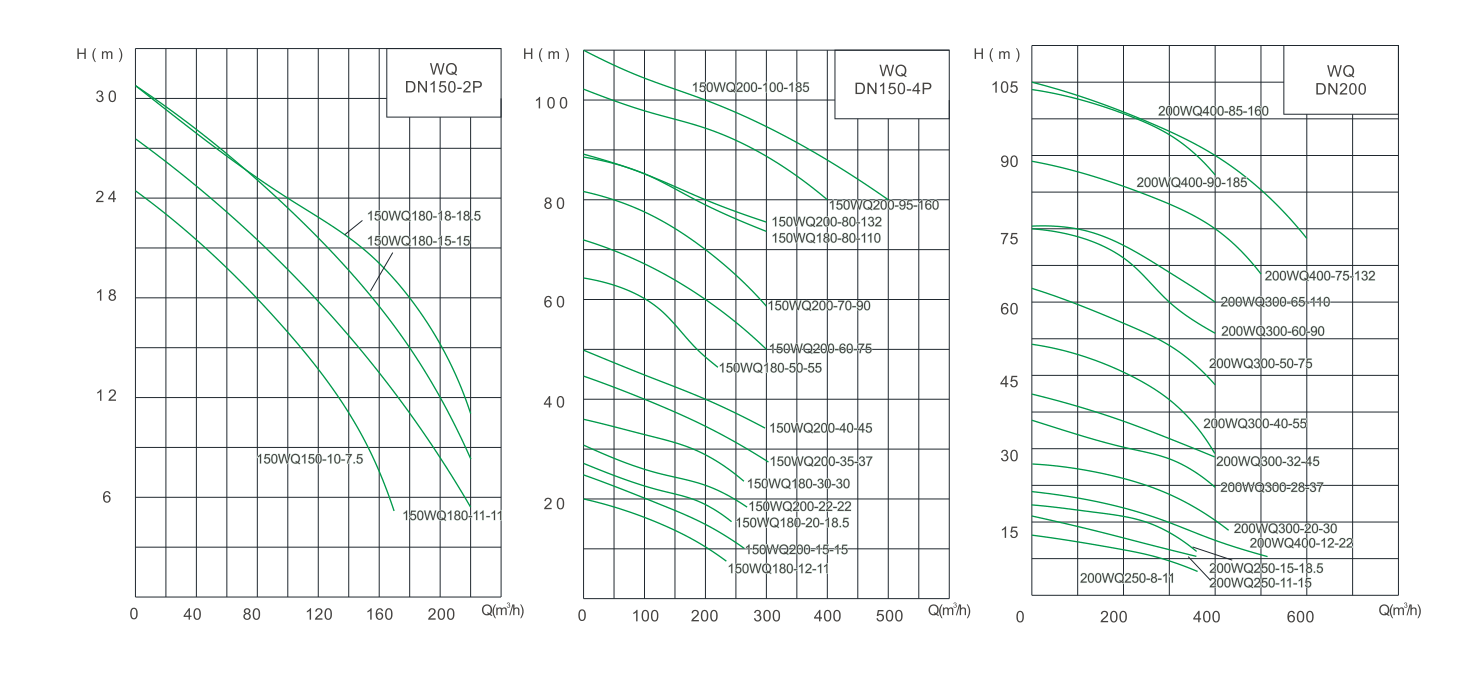

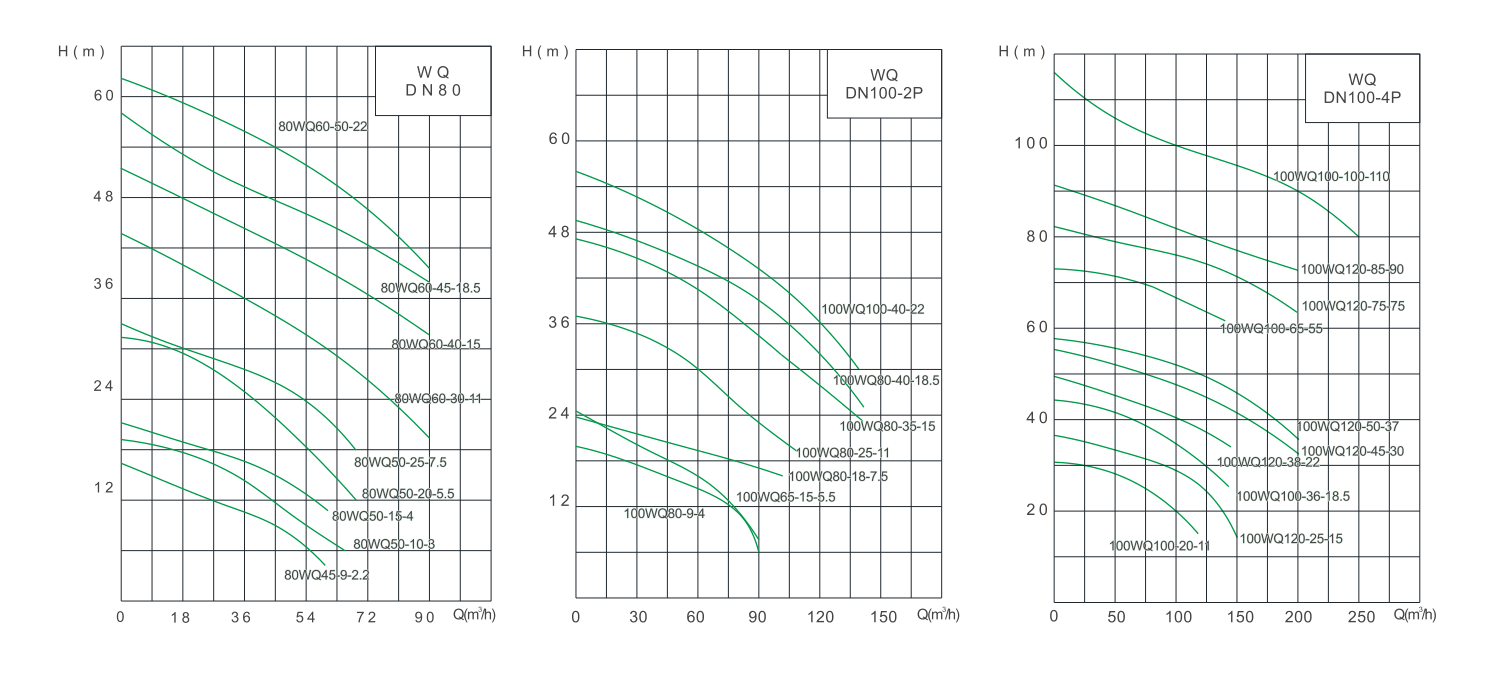

- Curve chart
- Installation diagram
-
- Commodity name: SEWAGE SUBMERSIBLE PUMP
- Commodity ID: WQ(N)L TYPE B
Flow:10~3500m³/h<br/> Head: 10~110m<br/> Power: 0.75~220kW<br/>
Product Description
The WQ sewage submersible electric pump (hereinafter referred to as the electric pump) follows the GBT 24674-2021 standard, and the pump motor is manufactured using advanced technology imported from abroad, featuring efficient non-standard design, reliable operation, and low cost.The motor casing is made of high-quality stainless steel material, and the motor is self-cooled by water. When the pump is working, the motor part can be exposed to the water for long-term operation, avoiding the fatal problem of only allowing a small part of the motor to be exposed during the operation of domestic sewage pumps, otherwise it may cause the motor to burn out. Unique pump design: The channel impeller has high efficiency and non clogging characteristics, with a maximum particle diameter of up to 100 mm.

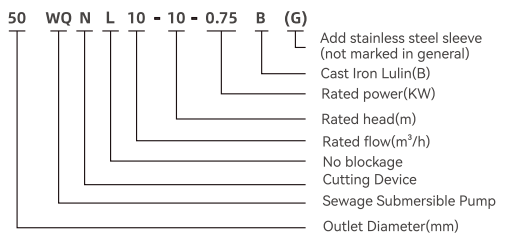

Model Description
Uses and characteristics
This series of electric pumps is a self-developed product with efficient and energy-saving effects,widely used in industrial, agricultural,construction, municipal environmental protection and other places. It has the following characteristics:
1. Imported NSK bearings;
2. 304 stainless steel rotor shaft, 304 stainless steel screws;
3. Motor insulation level F;
4. Stainless steel self-cooling system; Compared to ordinary water pumps, this pump has advantages such as stable performance, high work efficiency, and long service life.
Conditions of Use
1. Medium temperature not exceeding +40 ℃
2. The pH value of the medium is between 4 and 10
3. The maximum density of the medium is 1050 kg/m³
4. The power frequency is 50 Hz, and the voltage fluctuation range is 0.9 - 1.1 times the rated value
5. Diving depth not exceeding 5 m
-

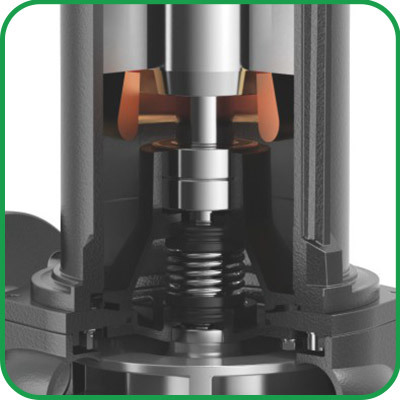

1. Dual Bearings: Longer service life &more stable operation -

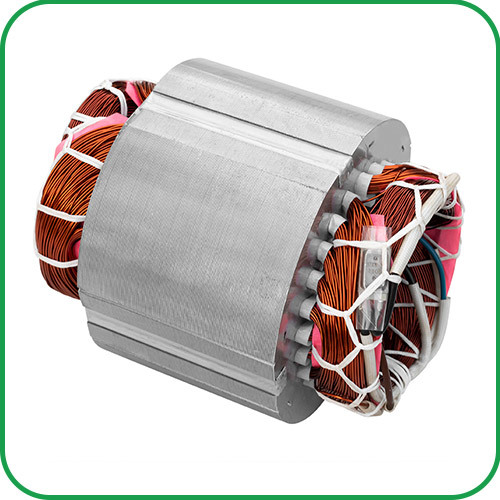

2. Class H Enameled Wire: Resistant to high temperature of 180℃ -
3.Rotor Shaft: The overflow part is welded with stainless steel
-

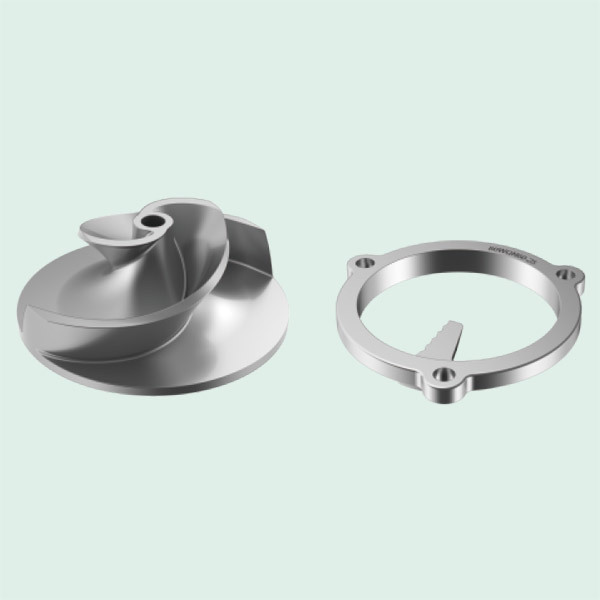

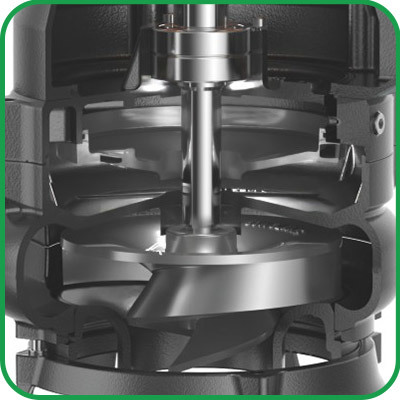

UNOBSTRUCTED IMPELLER(L)
Efficient & Energy Saving
Double helix no clogging,
Good overcurrent capacity, high efficiency -
CUTTING IMPELLER(N)
Wear Resistance
It is made of alloy steel casting
Sharp and not easily damaged
Strong cutting & Efficient drainage
-

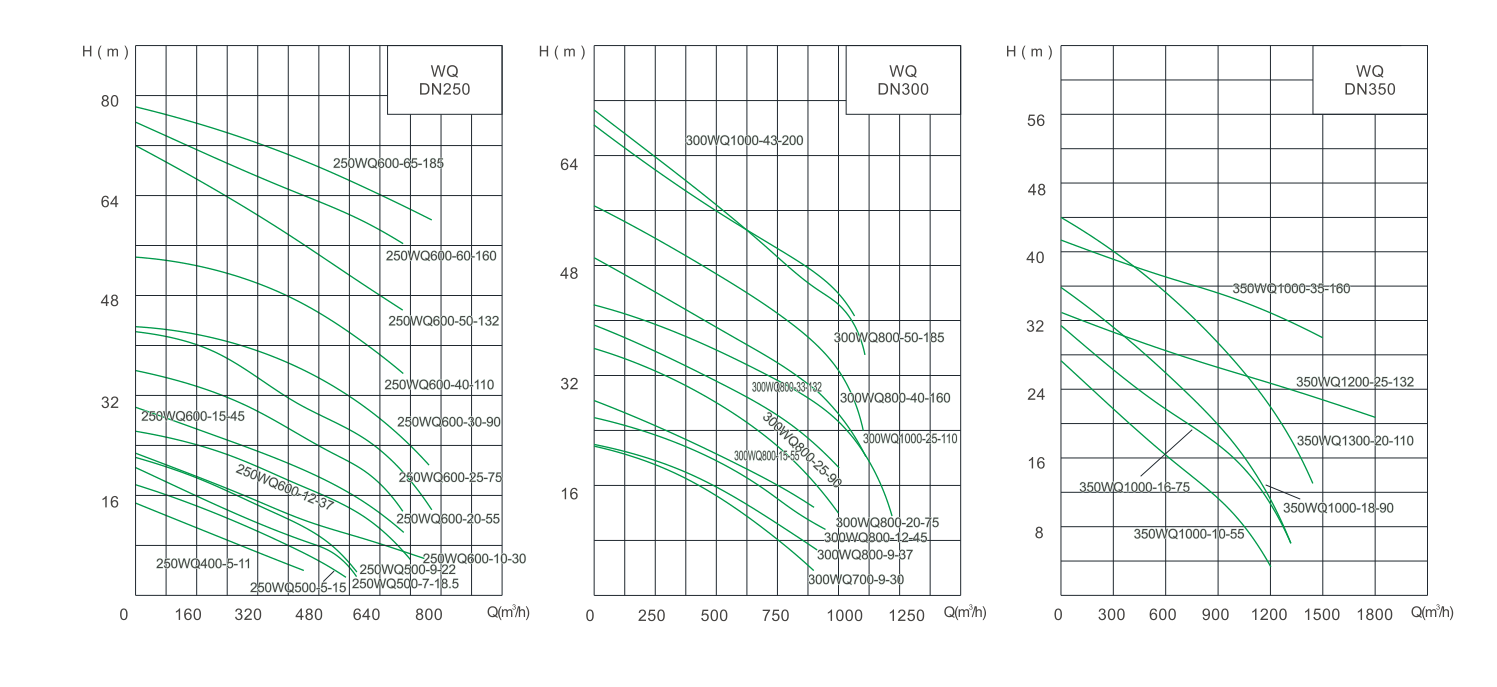

Graph
Technical Parameter
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous (mm) (m³/h) (m) (KW) (V) (r/ min) 1 50WQ10-10-0.75B(G) 50 10 10 0.75 380 3000 2 50WQD10-10-0.75B(G) 50 10 10 0.75 220 3000 3 50WQ10-12-1.1B(G) 50 10 12 1.1 380 3000 4 50WQD10-12-1.1B(G) 50 10 12 1.1 220 3000 5 50WQ15-15-1.5B(G) 50 15 15 1.5 380 3000 6 50WQD15-15-1.5B(G) 50 15 15 1.5 220 3000 7 65WQ25-12-1.5B(G) 65 25 12 1.5 380 3000 8 65WQD25-12-1.5B(G) 65 25 12 1.5 220 3000 9 50WQ20-15-2.2B(G) 50 20 15 2.2 380 3000 10 50WQD20-15-2.2B(G) 50 20 15 2.2 220 3000 11 50WQ10-25-2.2B(G) 50 10 25 2.2 380 3000 12 50WQD10-25-2.2B(G) 50 10 25 2.2 220 3000 13 65WQ20-20-2.2B(G) 65 20 20 2.2 380 3000 14 65WQD20-20-2.2B(G) 65 20 20 2.2 220 3000 15 80WQ45-9-2.2B(G) 80 45 9 2.2 380 3000 16 80WQD45-9-2.2B(G) 80 45 9 2.2 220 3000 17 50WQ8-34-3B(G) 50 8 34 3 380 3000 18 50WQ25-20-3B(G) 50 25 20 3 380 3000 19 65WQ25-22-3B(G) 65 25 22 3 380 3000 20 80WQ50-10-3B(G) 80 50 10 3 380 3000 21 50WQ15-30-4B(G) 50 15 30 4 380 3000 22 65WQ25-28-4B(G) 65 25 28 4 380 3000 23 80WQ50-15-4B(G) 80 40 16 4 380 3000 24 100WQ80-10-4B(G) 100 80 10 4 380 3000 25 50WQ15-40-5.5B(G) 50 15 40 5.5 380 3000 26 65WQ25-30-5.5B(G) 65 25 30 5.5 380 3000 27 80WQ50-20-5.5B(G) 80 50 20 5.5 380 3000 28 100WQ65-15-5.5B(G) 100 65 15 5.5 380 3000 29 50WQ15-50-7.5B(G) 50 15 50 7.5 380 3000 30 65WQ30-35-7.5B(G) 65 30 35 7.5 380 3000 31 80WQ50-25-7.5B(G) 80 50 25 7.5 380 3000 32 100WQ80-18-7.5B(G) 100 80 18 7.5 380 3000 33 150WQ150-10-7.5B(G) 150 150 10 7.5 380 3000 34 50WQ15-55-11B(G) 50 15 55 11 380 3000 35 65WQ20-50-11B(G) 65 20 50 11 380 3000 36 80WQ60-30-11B(G) 80 60 30 11 380 3000 37 100WQ80-25-11B(G) 100 80 25 11 380 3000 38 150WQ180-11-11B(G) 150 180 11 11 380 3000 39 50WQ15-70-15B(G) 50 15 70 15 380 3000 40 65WQ20-65-15B(G) 65 20 65 15 380 3000 41 80WQ60-40-15B(G) 80 60 40 15 380 3000 42 100WQ80-35-15B(G) 100 80 35 15 380 3000 43 150WQ180-15-15B(G) 150 180 15 15 380 3000 44 50WQ15-85-18.5B(G) 50 15 85 18.5 380 3000 45 65WQ20-80-18.5B(G) 65 20 80 18.5 380 3000 46 80WQ60-45-18.5B(G) 80 60 45 18.5 380 3000 47 100WQ80-40-18.5B(G) 100 80 40 18.5 380 3000 48 150WQ180-18-18.5B(G) 150 180 18 18.5 380 3000 49 50WQ15-95-22B(G) 50 15 95 22 380 3000 50 65WQ20-90-22B(G) 65 20 90 22 380 3000 51 80WQ60-50-22B(G) 80 60 50 22 380 3000 52 100WQ100-40-22B(G) 100 100 40 22 380 3000 53 100WQ100-20-11B(G) 100 100 20 11 380 1500 54 150WQ180-12-11B(G) 150 180 12 11 380 1500 55 200WQ250-8-11B(G) 200 250 8 11 380 1500 56 250WQ400-5-11B(G) 250 400 5 11 380 1500 57 100WQ120-25-15B(G) 100 120 25 15 380 1500 58 150WQ200-15-15B(G) 150 200 15 15 380 1500 59 200WQ250-11-15B(G) 200 250 11 15 380 1500 60 250WQ500-5-15B(G) 250 500 5 15 380 1500 61 100WQ100-36-18.5B(G) 100 100 36 18.5 380 1500 62 150WQ180-20-18.5B(G) 150 180 20 18.5 380 1500 63 200WQ250-15-18.5B(G) 200 250 15 18.5 380 1500 64 250WQ500-7-18.5B(G) 250 500 7 18.5 380 1500 65 100WQ120-38-22B(G) 100 120 38 22 380 1500 66 150WQ200-22-22B(G) 150 200 22 22 380 1500 67 200WQ400-12-22B(G) 200 400 12 22 380 1500 68 250WQ500-9-22B(G) 250 500 9 22 380 1500 69 100WQ120-45-30B(G) 100 120 45 30 380 1500 70 150WQ180-30-30B(G) 150 180 30 30 380 1500 71 200WQ300-20-30B(G) 200 300 20 30 380 1500 72 250WQ600-10-30B(G) 250 600 10 30 380 1500 73 300WQ700-9-30B(G) 300 700 9 30 380 1500 74 300WQ700-9-30B(G) 100 700 10 30 380 1500 75 150WQ200-35-37B(G) 150 200 35 37 380 1500 76 200WQ300-28-37B(G) 200 300 28 37 380 1500 77 250WQ600-12-37B(G) 250 600 12 37 380 1500 78 300WQ800-9-37B(G) 300 800 9 37 380 1500 79 100WQ100-57-45B(G) 100 100 57 45 380 1500 80 150WQ200-40-45B(G) 150 200 40 45 380 1500 81 200WQ300-32-45B(G) 200 300 32 45 380 1500 82 250WQ600-15-45B(G) 250 600 15 45 380 1500 83 300WQ800-12-45B(G) 300 800 12 45 380 1500 84 100WQ100-65-55B(G) 100 100 65 55 380 1500 85 150WQ180-50-55B(G) 150 180 50 55 380 1500 86 200WQ300-40-55B(G) 200 300 40 55 380 1500 87 250WQ600-20-55B(G) 250 600 20 55 380 1500 88 300WQ800-15-55B(G) 300 800 15 55 380 1500 89 350WQ1000-10-55B(G) 350 1000 10 55 380 1500 90 100WQ120-75-75B(G) 100 120 75 75 380 1500 91 150WQ200-60-75B(G) 150 200 60 75 380 1500 92 200WQ300-50-75B(G) 200 300 50 75 380 1500 93 250WQ600-25-75B(G) 250 600 25 75 380 1500 94 300WQ800-20-75B(G) 300 800 20 75 380 1500 95 350WQ1000-16-75B(G) 350 1000 16 75 380 1500 96 100WQ120-85-90B(G) 100 120 85 90 380 1500 97 150WQ200-70-90B(G) 150 200 70 90 380 1500 98 200WQ300-60-90B(G) 200 300 60 90 380 1500 99 250WQ600-30-90B(G) 250 600 30 90 380 1500 100 300WQ800-25-90B(G) 300 800 25 90 380 1500 101 350WQ1000-18-90B(G) 350 1000 18 90 380 1500 102 100WQ100-100-110B(G) 100 100 100 110 380 1500 103 150WQ180-80-110B(G) 150 180 80 110 380 1500 104 200WQ300-65-110B(G) 200 300 65 110 380 1500 105 250WQ600-40-110B(G) 250 600 40 110 380 1500 106 300WQ1000-25-110B(G) 300 1000 25 110 380 1500 107 350WQ1300-20-110B(G) 350 1300 20 110 380 1500 108 150WQ200-80-132B(G) 150 200 80 132 380 1500 109 200WQ400-75-132B(G) 200 400 75 132 380 1500 110 250WQ600-50-132B(G) 250 600 50 132 380 1500 111 300WQ800-33-132B(G) 300 800 33 132 380 1500 112 350WQ1200-25-132B(G) 350 1200 25 132 380 1500 113 400WQ1500-20-132B(G) 400 1500 20 132 380 1000 114 500WQ2800-10-132/6B(G) 500 2800 10 132 380 1000 115 150WQ200-95-160B(G) 150 200 95 160 380 1500 116 200WQ300-95-160B(G) 200 300 95 160 380 1500 117 250WQ600-60-160B(G) 250 600 60 160 380 1500 118 300WQ800-40-160B(G) 300 800 40 160 380 1500 119 350WQ1000-35-160B(G) 350 1000 35 160 380 1500 120 400WQ1600-22-160/6B(G) 400 1600 22 160 380 1000 121 500WQ2600-160-160/6B(G) 500 2600 16 160 380 1000 122 150WQ200-100-185B(G) 150 200 100 185 380 1500 123 200WQ400-90-185B(G) 200 400 90 185 380 1500 124 250WQ600-65-185B(G) 250 600 65 185 380 1500 125 300WQ800-50-185B(G) 300 800 50 185 380 1500 126 350WQ1100-38-185B(G) 350 1100 38 185 380 1500 127 400WQ2000-20-185/6B(G) 400 2000 20 185 380 1000 128 500WQ3000-15-185/6B(G) 500 3000 15 185 380 1000 129 250WQ750-75-200B(G) 250 750 75 200 380 1500 130 300WQ1000-43-200B(G) 300 1000 43 200 380 1500 131 350WQ1300-35-200B(G) 350 1300 35 200 380 1500 132 400WQ2300-22-200/6B(G) 400 2300 22 200 380 1000 133 500WQ3500-15-200/6B(G) 500 3500 15 200 380 1000 Note:WQ can be upgraded to automatic mixing or equipped with a mixing impeller or stainless steel impeller.
-

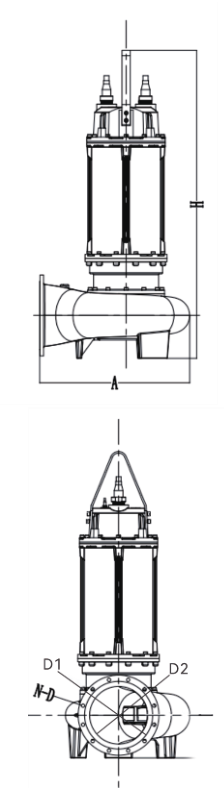

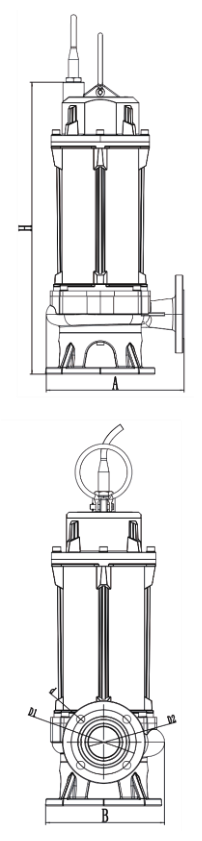

Overall dimension
NO. Model A(mm) B(mm) H(mm) D1 D2 n-d 1 50WQ10-10-0.75B(G) 245 210 425 φ110 φ50 4-φ14 2 50WQ10-12-1.1B(G) 245 210 425 φ110 φ50 4-φ14 3 50WQ15-15-1.5B(G) 255 200 520 φ110 φ50 4-φ14 4 65WQ18-15-1.5B(G) 255 200 520 φ130 φ65 4-φ14 5 50WQ15-20-2.2B(G) 255 200 520 φ110 φ50 4-φ14 6 50WQ10-30-2.2B(G) 265 240 530 φ110 φ50 4-φ14 7 65WQ25-18-2.2B(G) 255 200 520 φ130 φ65 4-φ14 8 80WQ45-9-2.2B(G) 290 250 550 φ150 φ80 4-φ18 9 50WQ25-20-3B(G) 255 200 520 φ110 φ50 4-φ14 10 50WQ8-34-3B(G) 265 240 530 φ110 φ50 4-φ14 11 65WQ35-17-3B(G) 255 200 520 φ130 φ65 4-φ14 12 80WQ50-10-3B(G) 290 250 550 φ150 φ80 4-φ18 13 50WQ15-30-4B(G) 265 240 530 φ110 φ50 4-φ14 14 65WQ25-28-4B(G) 270 240 525 φ130 φ65 4-φ14 15 80WQ50-17-4B(G) 290 250 550 φ150 φ80 4-φ18 16 100WQ80-10-4B(G) 290 250 550 φ170 φ100 4-φ18 17 50WQ10-40-5.5B(G) 305 245 560 φ110 φ50 4-φ14 18 65WQ25-32-5.5B(G) 305 245 570 φ130 φ65 4-φ14 19 80WQ50-20-5.5B(G) 305 245 570 φ150 φ80 4-φ18 20 100WQ65-15-5.5B(G) 320 270 585 φ170 φ100 4-φ18 21 50WQ15-50-7.5B(G) 305 245 640 φ110 φ50 4-φ14 22 65WQ40-30-7.5B(G) 305 245 640 φ130 φ65 4-φ14 23 80WQ50-25-7.5B(G) 305 240 640 φ150 φ80 4-φ18 24 100WQ80-21-7.5B(G) 325 265 650 φ170 φ100 4-φ18 25 150WQ150-10-7.5B(G) 340 295 680 φ225 φ150 8-φ18 26 100WQ120-16-11B(G) 575 477 1157 φ170 φ100 4-φ18 27 150WQ180-12-11B(G) 627 489 1183 φ225 φ150 8-φ18 28 200WQ300-7-11B(G) 607 492 1207 φ280 φ200 8-φ18 29 250WQ400-5-11B(G) 645 542 1235 φ335 φ250 12-φ18 30 100WQ130-20-15B(G) 575 477 1157 φ170 φ100 4-φ18 31 150WQ200-15-15B(G) 627 489 1183 φ225 φ150 8-φ18 32 200WQ250-11-15B(G) 607 492 1207 φ280 φ200 8-φ18 33 250WQ500-5-15B(G) 645 542 1235 φ335 φ250 12-φ18 34 100WQ150-26-18.5B(G) 575 477 1157 φ170 φ100 4-φ18 35 150WQ180-20-18.5B(G) 627 489 1183 φ225 φ150 8-φ18 36 200WQ250-15-18.5B(G) 607 492 1207 φ280 φ200 8-φ18 37 250WQ500-7-18.5B(G) 645 542 1235 φ335 φ250 12-φ18 38 300WQ650-5-18.5B(G) 636 525 1265 φ395 φ300 12-φ22 39 100WQ150-28-22B(G) 575 477 1157 φ170 φ100 4-φ18 40 150WQ200-22-22B(G) 627 489 1183 φ225 φ150 8-φ18 41 200WQ300-16-22B(G) 607 492 1207 φ280 φ200 8-φ18 42 250WQ500-9-22B(G) 645 542 1235 φ335 φ250 12-φ18 43 300WQ650-7-22B(G) 636 525 1265 φ395 φ300 12-φ22 44 100WQ120-45-30B(G) 620 520 1257 φ170 φ100 4-φ18 45 150WQ180-30-30B(G) 610 520 1235 φ225 φ150 8-φ18 46 200WQ250-22-30B(G) 630 520 1235 φ280 φ200 8-φ18 47 250WQ600-9-30B(G) 701 563 1277 φ335 φ250 12-φ18 48 300WQ800-7-30B(G) 795 620 1310 φ400 φ300 12-φ22 49 100WQ120-50-37B(G) 620 520 1317 φ170 φ100 4-φ18 50 150WQ200-35-37B(G) 626 487 1305 φ225 φ150 8-φ18 51 200WQ350-25-37B(G) 686 527 1320 φ280 φ200 8-φ18 52 300WQ800-9-37B(G) 795 620 1400 φ400 φ300 12-φ22 53 100WQ100-57-45B(G) 650 525 1280 φ170 φ100 4-φ18 54 150WQ200-40-45B(G) 626 487 1305 φ225 φ150 8-φ18 55 200WQ300-32-45B(G) 686 527 1320 φ280 φ200 8-φ18 56 250WQ600-15-45B(G) 693 578 1340 φ335 φ250 12-φ18 57 300WQ800-12-45B(G) 795 620 1400 φ400 φ300 12-φ22 58 100WQ100-65-55B(G) 794 638 1800 φ180 φ100 12-φ22 59 150WQ180-50-55B(G) 799 645 1796 φ240 φ150 12-φ22 60 200WQ300-40-55B(G) 818 676 1805 φ295 φ200 12-φ22 61 250WQ600-20-55B(G) 773 623 1810 φ335 φ250 12-φ22 62 300WQ800-15-55B(G) 806 665 1845 φ395 φ300 12-φ22 63 350WQ1000-10-55B(G) 903 757 1865 φ445 φ350 12-φ22 64 100WQ120-75-75B(G) 794 638 1800 φ180 φ100 12-φ22 65 150WQ200-60-75B(G) 799 645 1796 φ240 φ150 12-φ22 66 200WQ350-45-75B(G) 818 676 1805 φ295 φ200 12-φ22 67 250WQ600-25-75B(G) 773 623 1810 φ335 φ250 12-φ22 68 300WQ800-20-75B(G) 806 665 1845 φ395 φ300 12-φ22 69 350WQ1000-15-75B(G) 903 757 1865 φ445 φ350 12-φ22 70 100WQ120-85-90B(G) 794 638 1800 φ180 φ100 12-φ22 71 150WQ200-70-90B(G) 799 645 1796 φ240 φ150 12-φ22 72 200WQ300-60-90B(G) 818 676 1805 φ295 φ200 12-φ22 73 250WQ600-30-90B(G) 773 623 1810 φ335 φ250 12-φ22 74 300WQ800-25-90B(G) 806 665 1845 φ395 φ300 12-φ22 75 350WQ1000-18-90B(G) 903 757 1865 φ445 φ350 12-φ22
