ABK
SEMI-OPEN IMPELLER STAINLESS STEEL PUMP
Classification:
Surface pump
Head: 5.5-22M
Power: 0.37-7.5KW
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: SEMI-OPEN IMPELLER STAINLESS STEEL PUMP
- Commodity ID: ABK
Flow: 2-80 m³h<br/> Head: 5.5-22M<br/> Power: 0.37-7.5KW
PURPOSE
The hydraulic components of the pump are semi-open impellers, which are suitable for the food industry, the circulation cleaning systems in industrial production, or the cleaning equipment in the washing industry. It can transport non-flammable and non-explosive liquids containing suspended solid particles or liquids that have no obvious corrosive effect on stainless steel (SS304).

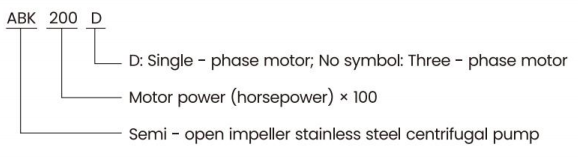

MODEL DESCRIPTION
MATERIAL
The flow-through components are all made of SS304 stainless steel, including the pump body, impeller, rear cover, motor shaft extension, etc.
Mechanical seal: Graphite/Silicon carbide/Ethylene propylene diene monomer (Other materials for mechanical seals can be provided according to requirements).
Conventional seal (O-ring): Ethylene propylene diene monomer
CHARACTERISTICS
It is horizontally installed with a horizontal inlet and a vertical outlet, Both the inlet and the outlet can be connected with hoses. The maximum working pressure is 8 bar,the maximum liquid temperature is 80℃, and the maximum diameter of the solid particles that can pass through is 27 mm.
MOTOR
2-pole asynchronous motor, adopting SI continuous duty system, with F-class insulation and lP55 protection level. The motor bracket and the shell are made of aluminum alloy.
PERFORMANCE PARAMETER TABLE
Model Power Flow Single-
phaseThree-

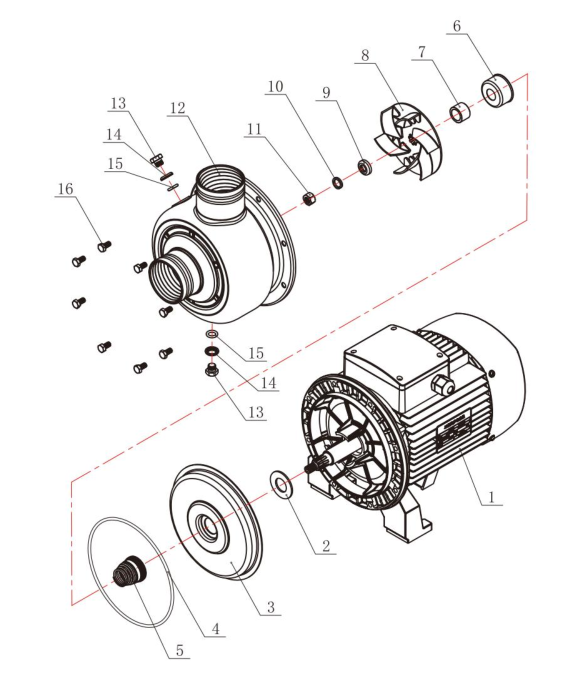

phaseI/ min 33 50 67 83 100 200 300 400 550 700 800 950 220V/50HZ 380V/50HZ KW HP m³h 2 3 4 5 6 12 18 24 33 42 48 54 Head ABK50D ABK50 0.37 0.5 11 10 9.5 9 8.5 ABK100D ABK100 0.75 1.0 10.5 8 5.5 ABK120D ABK120 0.9 1.2 12.5 10 7 ABK150D ABK150 1.1 1.5 10 9 8 7 5 ABK200D ABK200 1.5 2.0 12.5 12 11 10 8.5 ABK300D ABK300 2.2 3.0 15.5 15 14.5 13.5 12 10.5 9 8 - ABK400 3.0 4.0 18 17.5 16.5 15.5 14.5 13.5 12 11 Model Power Flow Single-phase Three-phase m³h 20 30 40 50 60 70 80 220V/50HZ 380V/50HZ KW HP - ABK600 4.5 6 18.5 17 15.5 14 12.5 - ABK750 5.5 7.5 20.5 19.5 18.5 17 15 13 - ABK1000 7.5 10 22 21 20 19 17 15 13 EXPLODED VIEW
PARTS LIST
NO. Name Material NO. Name Material 1 Motor Components 9 Impeller fixed shaft
sleeveStainless steel SS304 2 Water retaining ring Nitrile rubber 10 Spring washer Stainless steel SS304 3 Rear cover Stainless steel SS304 11 Impeller fixing nut Stainless steel SS304 4 O-ring EPDM rubber 12 Pump body Stainless steel SS304 5 Mechanical seal Silicon carbide/ graphite/ EPDM 13 Filling and draining bolt Stainless steel SS304 6 Mechanical seal cover Stainless steel SS304 14 Concave washer Stainless steel SS304 7 Shaft sleeve Stainless steel SS304 15 O-ring EPDM rubber 8 Impeller Stainless steel SS304 16 Hexagon socket head
cap screwStainless steel SS304 -

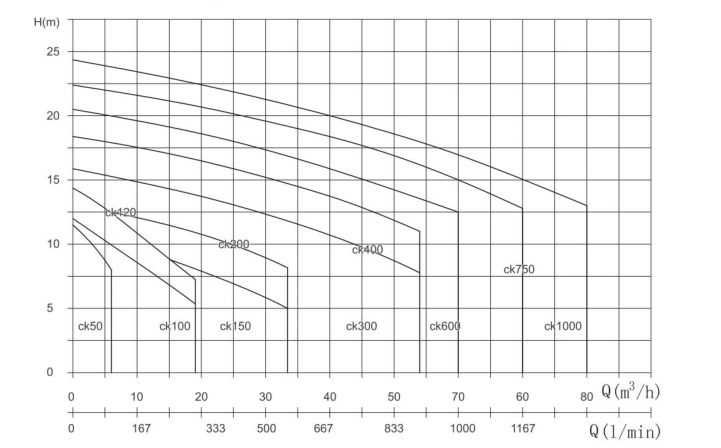

PERFORMANCE CURVE CHART
-

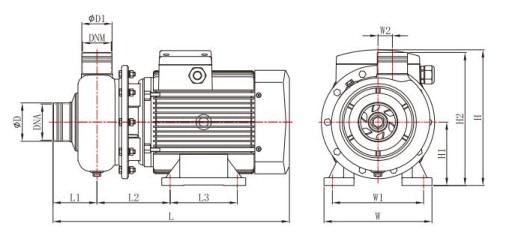

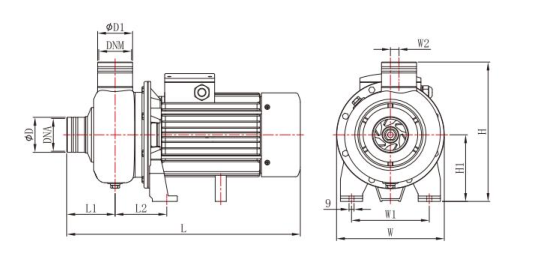

INSTALLATION DIMENSION TABLE
Model D D1 DNA DNM H H1 L L1 L2 W W1 W2 ABK50 46 36 G1 G1 183 88 310 56 78 170 100 — ABK100 52 46 G2½ G11/4 226 108 340 76 86 172 120 13 ABK120 52 46 G2½ G11/4 226 108 340 76 86 172 120 13 ABK150 63 63 G2 G2 251 120 420 87 97 192 140 16 ABK200 63 63 G2 G2 251 120 420 87 97 192 140 16 ABK300 80 63 G2½ G2 251 120 440 87 97 194 140 16 ABK400 80 63 G2½ G2 251 120 460 87 97 194 140 16 Model D D1 DNA DNM H H1 L L1 L2 L3 W W1 W2 ABK600 80 63 G2½ G2 285 132 515 92 153 140 225 190 30 ABK700 80 63 G2½ G2 305 132 560 92 172 140 260 216 30 ABK1000 80 63 G2 G2 305 132 560 92 172 140 260 216 30
