QUICK-DISASSEMBLY PIPELINE CIRCULATION PUMP

Classification:

Pipeline pumps

Max.Flow: 12.5~630m³/h
Max.Head:10~81m
Power: 1.1~132kW

Message

E-Mail:admin@lulinpump.com

Tel:400-8820-878

Detail
TD40
TD50
TD65
TD80
TD100
TD125
TD150
TD200
TD250

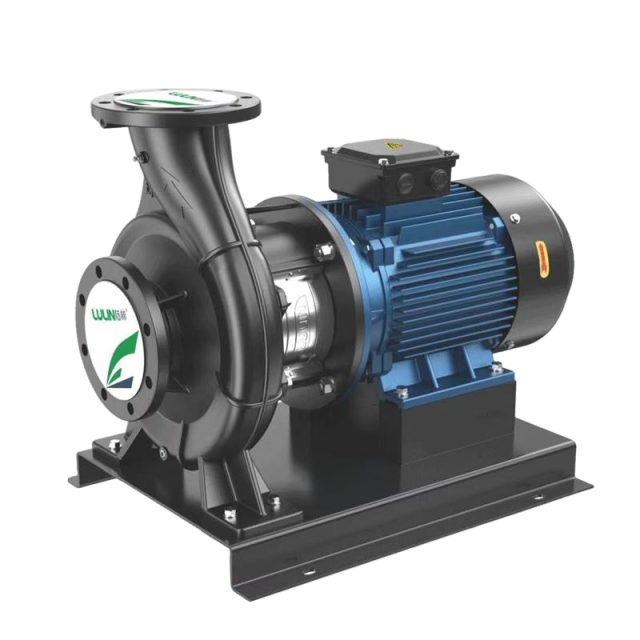

Commodity name: QUICK-DISASSEMBLY PIPELINE CIRCULATION PUMP
Commodity ID: TD

Max.Flow: 12.5~630m³/h<br/> Max.Head:10~81m<br/> Power: 1.1~132kW

The TD quick-disassembly pipeline circulation pump, equipped with an efficient standard motor and optimized for hydraulics and structure, features energy efficiency, stable performance, low noise, no overload, high flow rate, wide efficient range, and aesthetic appearance. Its structure is compact, easy to install, and disassemble. The product is designed with a top pull-out disassembly format, which allows the pump to be repaired without affecting the pipeline system. This product can replace similar foreign products.

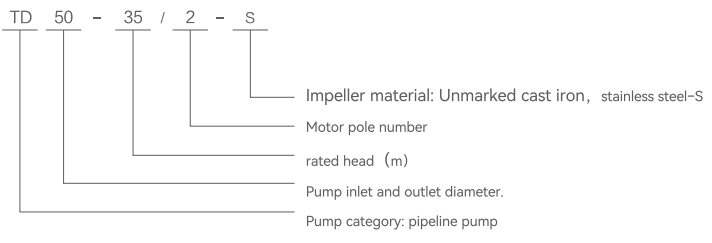

PRODUCT FEATURES

WORKING CONDITIONS
Caliber range: DN40 - DN250
Flow range: 12.5 m³/h ~ 630 m³/h
Head range: 10 m~81 m
Power range: 1.1 kW ~ 132 kW
Power requirements: 1x220V 50Hz, 3x380V 50Hz
Speed: 2900 r/min, 1480 r/min
medium temperature: 0~120 ℃
Ambient temperature: ≤ 40 ℃

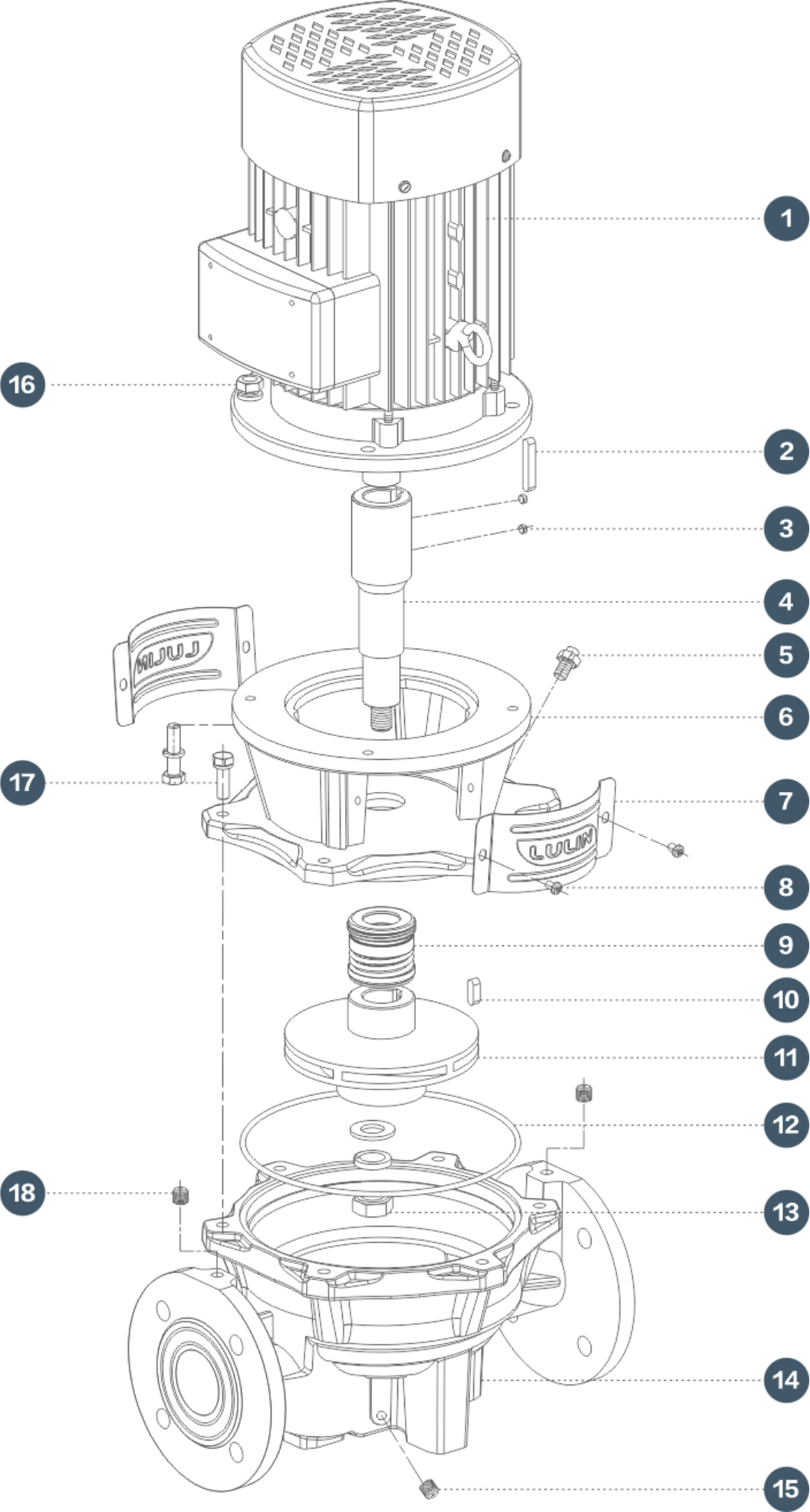

ASSEMBLY SCHEMATIC
Every product, every combination, every detail fully displays different tastes, personalities, and cultural connotations.
The inadvertently revealed charm adorns the harmony of the pump industry.

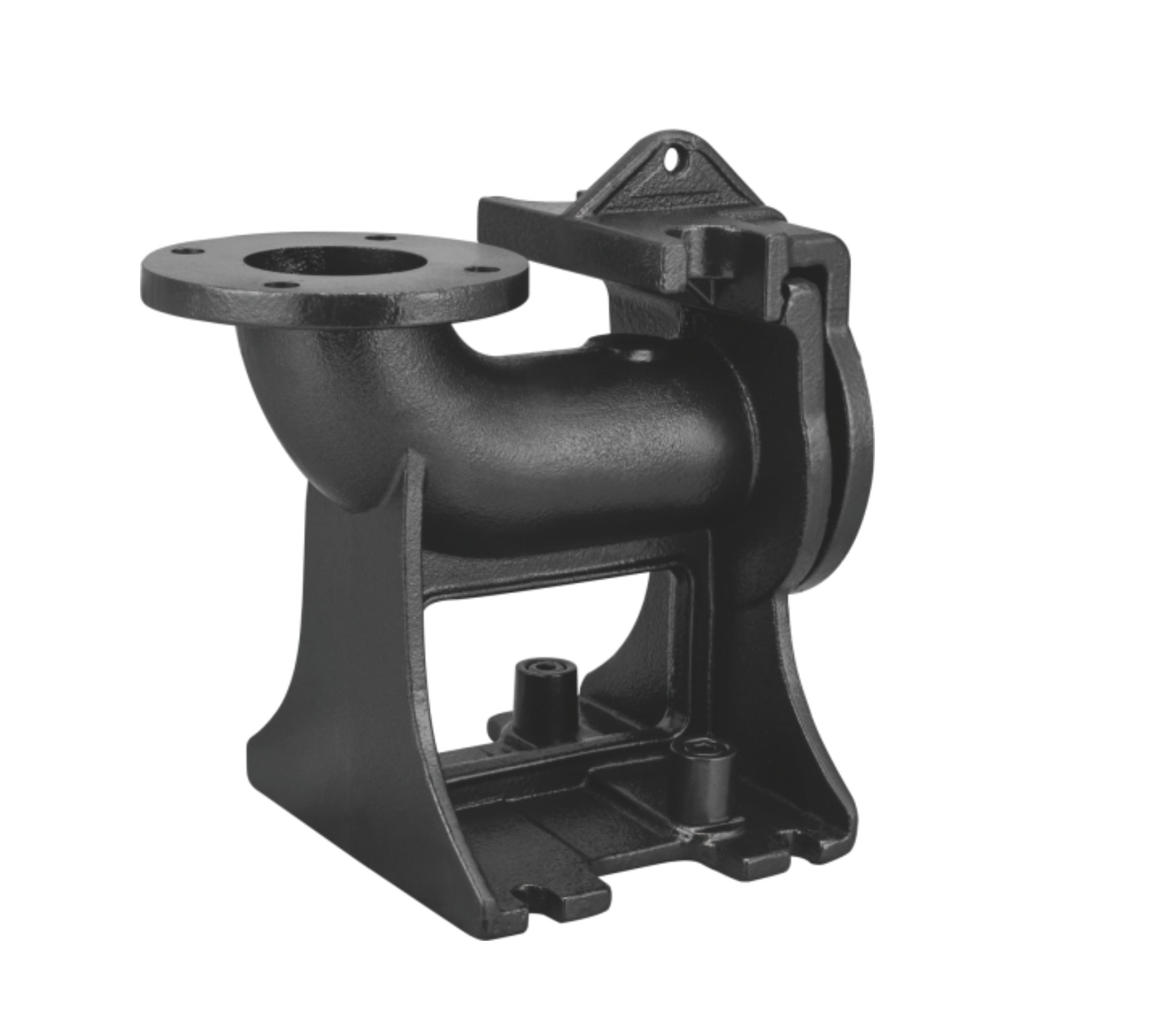

MAIN COMPONENTS AND MATERIALS
The actual appearance and schematic may differ in shape.

NO.	Part Name	Materials
1	Motor	/
2	Flat key	/
3	Tightening screw	Q235A
4	Pump shaft	304
5	Air screw assembly	304
6	Connection (pump cover)	HT200
7	Guard board	304
8	Crosshead screw	304
9	mechanical seal	Graphite silicon carbide
10	Flat key	/
11	Impeller	HT200 Stainless steel
12	O-ring	Fluorine rubber Nitrile rubber
13	Lock nut	Stainless steel
14	Pump body	HT200/QT450
15	Drain plug	Stainless steel
16	outer hexagon nut	Stainless steel
17	outer hexagon bolt	Stainless steel
18	Water injection plug	Stainless steel

PERFORMANCE PARAMETERS

NO.	Model	flow Q(m³/h)	Head H(m)	1×220V (kW)	3×380V (kW)	Speed (r/ min)
1	TD40-16/2	12.5	16	1.1	1.1	2900
2	TD40-20/2	12.5	20	1.5	1.5	2900
3	TD40-18/2	20	18	2.2	2.2	2900
4	TD40-25/2	20	25	/	3	2900
5	TD40-30/2	25	30	/	4	2900
6	TD40-36/2	25	36	/	5.5	2900
7	TD40-48/2	25	48	/	7.5	2900

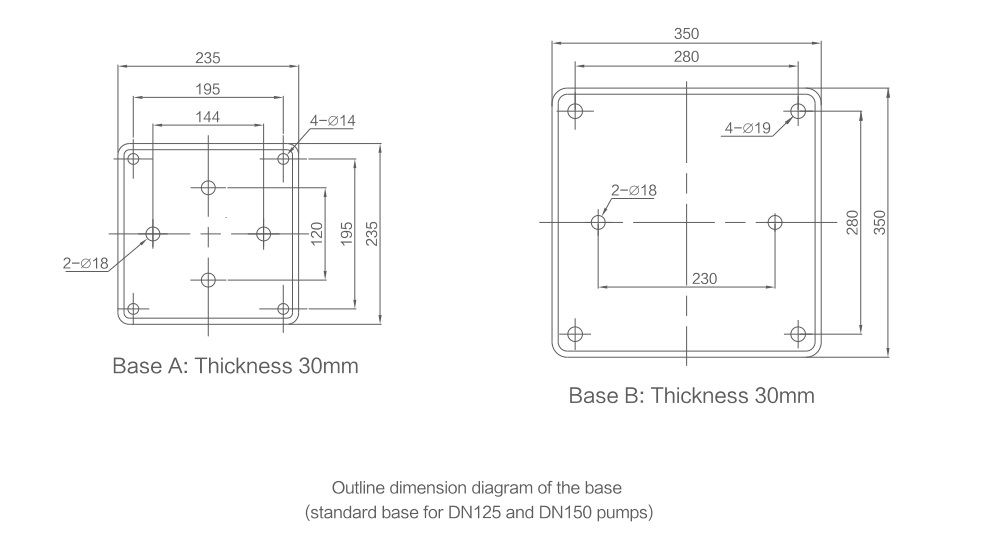

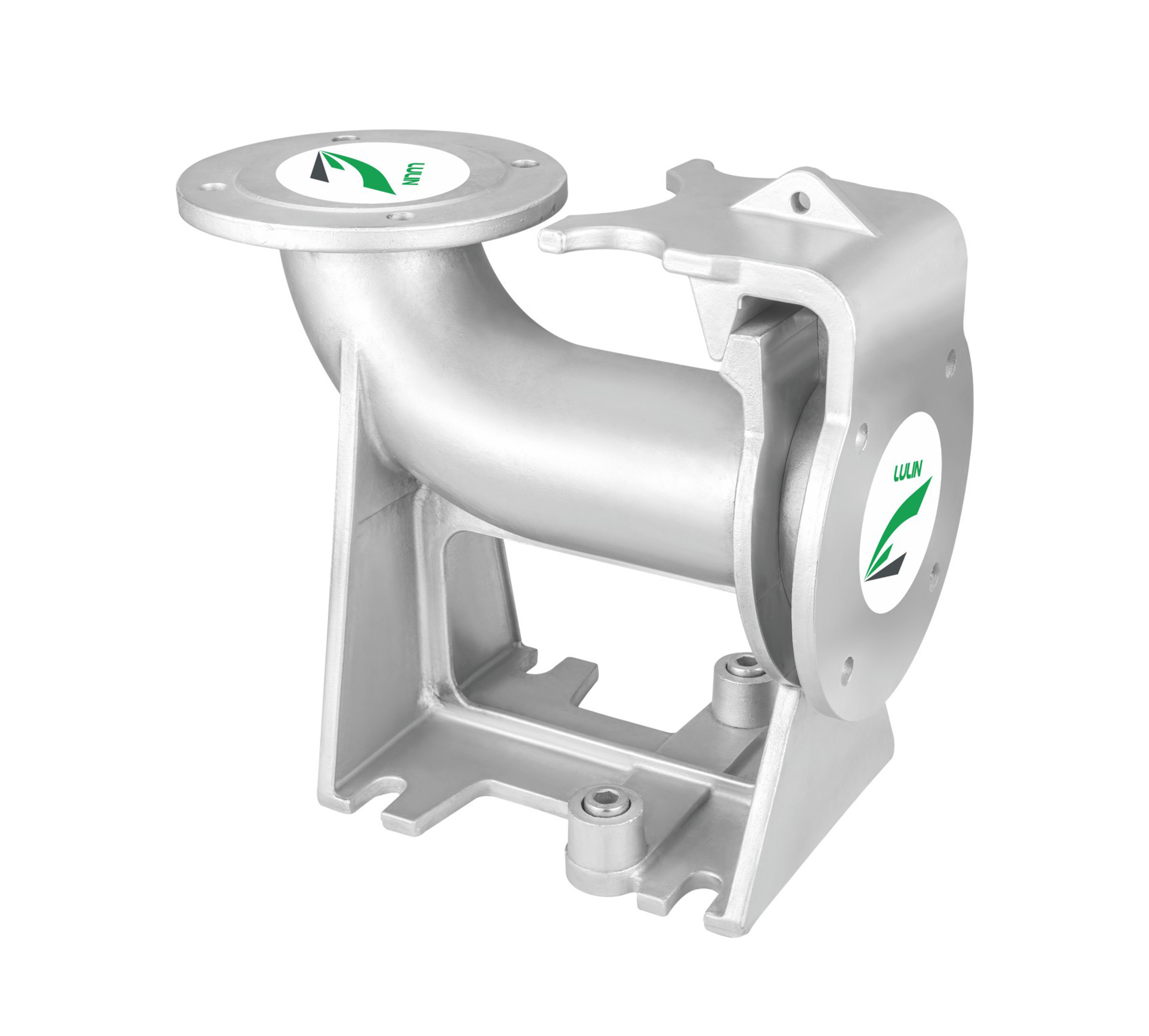

BASE DIMENSION CHART

NO.	Model	Base model
1	TD40-16/2	Base A
2	TD40-20/2	Base A
3	TD40-18/2	Base A
4	TD40-25/2	Base A
5	TD40-30/2	Base A
6	TD40-36/2	Base A
7	TD40-48/2	Base A

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	4	8	12.5	16	20	25	28	32
1	TD40-16/2	1.1	H(m)	17.8	17.3	16	12.5
2	TD40-20/2	1.5		21.5	21.1	20	17.2
3	TD40-18/2	2.2		19.9	19.8	19.5	19	18	15.8
4	TD40-25/2	3		27.7	27.5	27.1	26.4	25	22.5
5	TD40-30/2	4		33.8	33.6	33.1	32.6	31.7	30	28.6	26.1
6	TD40-36/2	5.5		39	38.8	38.5	38.1	37.3	36	35	32.6
7	TD40-48/2	7.5		49.8	49.7	49.5	49.4	49	48	46.6	44.2

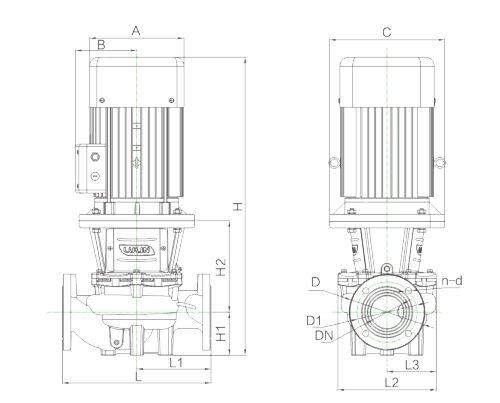

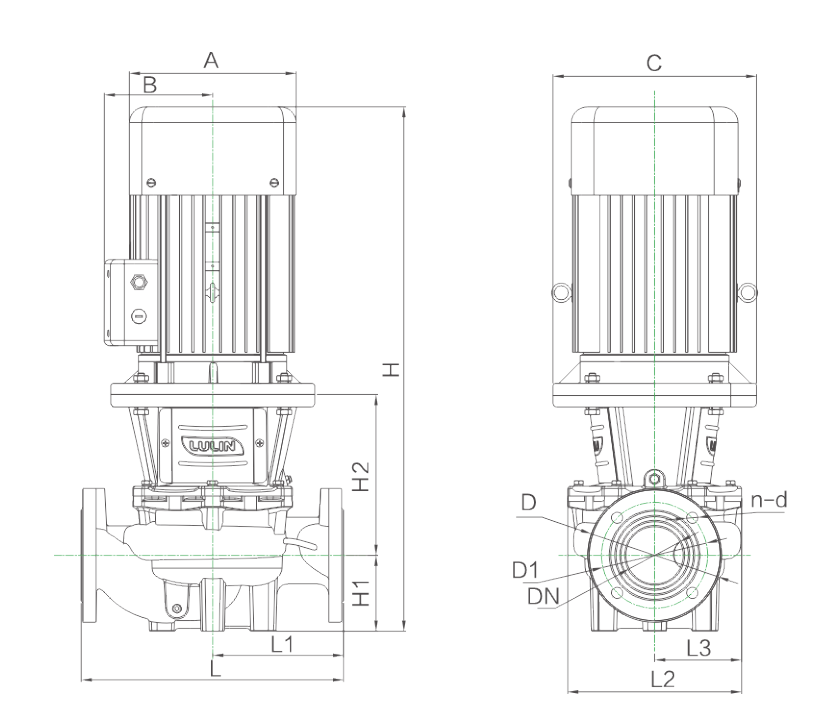

DIMENSIONS

NO.	Model	L	L1	L2	L3	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD40-16/2	320	160	240	120	510	68	167	167	112	200	150	110	40	4-φ18
2	TD40-20/2	320	160	240	120	520	68	167	175	118	200	150	110	40	4-φ18
3	TD40-18/2	340	170	240	120	590	100	168	175	118	200	150	110	40	4-φ18
4	TD40-25/2	340	170	240	120	612	100	168	197	128	250	150	110	40	4-φ18
5	TD40-30/2	340	170	240	120	665	100	188	215	134	250	150	110	40	4-φ18
6	TD40-36/2	380	190	270	135	682	90	195	255	158	300	150	110	40	4-φ18
7	TD40-48/2	380	190	270	135	682	90	195	255	158	300	150	110	40	4-φ18

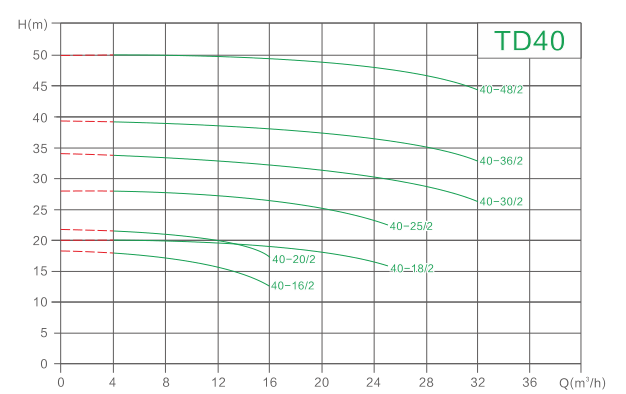

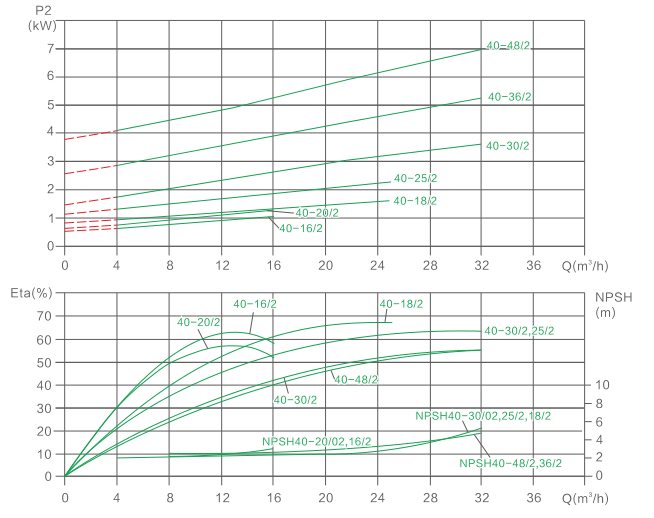

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	flow Q(m³/h)	Head H(m)	1×220V (kW)	3×380V (kW)	Speed (r/ min)
1	TD50-12/2	16	12	1.1	1.1	2900
2	TD50-15/2	20	15	1.5	1.5	2900
3	TD50-18/2	25	18	2.2	2.2	2900
4	TD50-24/2	25	24	/	3	2900
5	TD50-28/2	30	28	/	4	2900
6	TD50-35/2	30	35	/	5.5	2900
7	TD50-40/2	35	40	/	7.5	2900
8	TD50-50/2	40	50	/	11	2900
9	TD50-60/2	50	60	/	15	2900
10	TD50-70/2	50	70	/	18.5	2900
11	TD50-81/2	50	81	/	22	2900

BASE DIMENSION CHART

NO.	Model	Base model
1	TD50-12/2	Base A
2	TD50-15/2	Base A
3	TD50-18/2	Base A
4	TD50-24/2	Base A
5	TD50-28/2	Base A
6	TD50-35/2	Base A
7	TD50-40/2	Base A
8	TD50-50/2	Base A
9	TD50-60/2	Base A
10	TD50-70/2	Base A
11	TD50-81/2	Base A

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	5	10	16	20	25	30	35	40	45	50	60
1	TD50-12/2	1.1	H(m)	15.2	14.2	12	10
2	TD50-15/2	1.5		18.9	18	16.5	15	12.6
3	TD50-18/2	2.2		22.8	22.3	21	19.8	18	15
4	TD50-24/2	3		26.2	26	25.5	25	24	22.3
5	TD50-28/2	4		31.5	31.3	31	30.5	29.5	28	25.5
6	TD50-35/2	5.5		36.9	36.7	36.5	36.2	35.8	35	33.7	31.5
7	TD50-40/2	7.5		42.3	42.2	41.9	41.7	41.3	40.8	40	38.3	35
8	TD50-50/2	11		53.5	53.4	53.1	52.9	52.5	51.9	51.1	50	48.4	45.8
9	TD50-60/2	15		65.7	65.8	65.7	65.6	65.3	64.7	63.9	62.8	61.6	60	55.4
10	TD50-70/2	18.5		73.7	73.6	73.4	73.3	73.1	72.9	72.5	72	71.2	70	65.4
11	TD50-81/2	22		85.5	85.3	85	84.8	84.5	84	83.5	82.8	82.1	81	77.1

DIMENSIONS

NO.	Model	L	L1	L2	L3	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD50-12/2	340	170	240	120	535	115	146	167	112	200	165	125	50	4-φ18
2	TD50-15/2	340	170	240	120	545	115	146	175	118	200	165	125	50	4-φ18
3	TD50-18/2	340	170	240	120	585	115	146	175	118	200	165	125	50	4-φ18
4	TD50-24/2	340	170	240	120	606	115	166	197	128	250	165	125	50	4-φ18
5	TD50-28/2	340	170	240	120	670	115	177	215	134	250	165	125	50	4-φ18
6	TD50-35/2	340	170	240	120	726	115	202	255	158	300	165	125	50	4-φ18
7	TD50-40/2	400	200	280	142	710	115	187	255	158	300	165	125	50	4-φ18
8	TD50-50/2	440	220	326	163	856	115	225	312	186	350	165	125	50	4-φ18
9	TD50-60/2	440	220	326	163	856	115	225	312	186	350	165	125	50	4-φ18
10	TD50-70/2	440	220	326	163	900	115	225	312	186	350	165	125	50	4-φ18
11	TD50-81/2	440	220	326	163	940	115	225	350	280	350	165	125	50	4-φ18

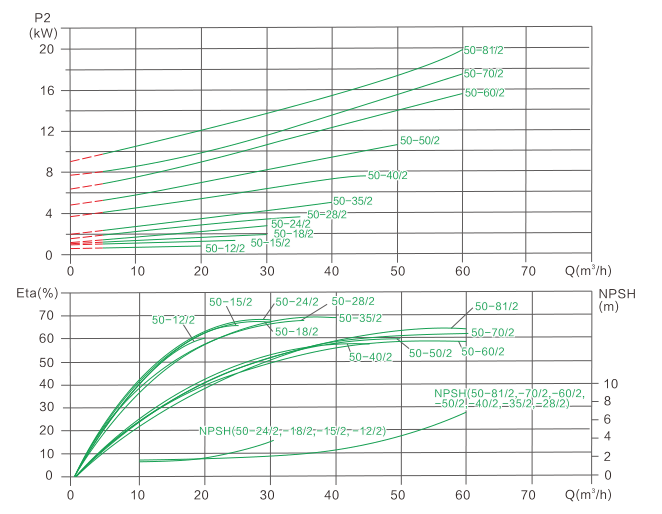

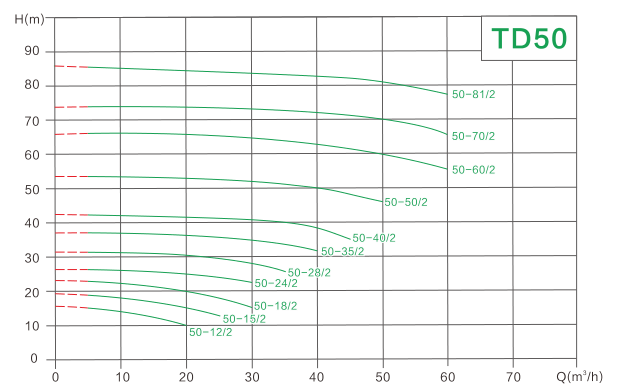

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	flow Q(m³/h)	Head H(m)	1×220V (kW)	3×380V (kW)	Speed (r/ min)
1	TD65-12/2	25	12	1.5	1.5	2900
2	TD65-15/2	30	15	2.2	2.2	2900
3	TD65-19/2	30	19	/	3	2900
4	TD65-22/2	40	22	/	4	2900
5	TD65-30/2	40	30	/	5.5	2900
6	TD65-34/2	50	34	/	7.5	2900
7	TD65-40/2	50	40	/	11	2900
8	TD65-50/2	50	50	/	15	2900
9	TD65-60/2	50	60	/	18.5	2900
10	TD65-70/2	60	70	/	22	2900
11	TD65-80/2	70	80	/	30	2900

BASE DIMENSION CHART

NO.	Model	Base model
1	TD65-12/2	Base A
2	TD65-15/2	Base A
3	TD65-19/2	Base A
4	TD65-22/2	Base A
5	TD65-30/2	Base A
6	TD65-34/2	Base A
7	TD65-40/2	Base A
8	TD65-50/2	Base A
9	TD65-60/2	Base A
10	TD65-70/2	Base A
11	TD65-80/2	Base A

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	10	20	30	40	50	60	70	80	90
1	TD65-12/2	1.5	H(m)	14.2	13.1	11	7.2
2	TD65-15/2	2		17.9	17.0	15	10.7
3	TD65-19/2	3		21.7	20.8	19	15.2
4	TD65-22/2	4		25.1	24.7	23.9	22	17.5
5	TD65-30/2	5.5		32.4	32.1	31.5	30	26.1
6	TD65-34/2	7.5		38.6	38.2	37.6	36.4	34	29.6
7	TD65-40/2	11		43.4	42.9	42.3	41.4	40	37.6
8	TD65-50/2	15		53.6	53.3	52.7	51.6	50	47.3
9	TD65-60/2	18.5		63.1	63.2	63	62.3	60	58.8	54.8
10	TD65-70/2	22		73.4	73.1	72.8	72.7	72.1	70	67.3	65.1	59.9
11	TD65-80/2	30		87	86.8	86.6	85.6	84.1	82.7	80	77.8	74.2

DIMENSIONS

NO.	Model	L	L1	L2	L3	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD65-12/2	360	180	253	132	552	105	165	175	118	200	185	145	65	4-φ18
2	TD65-15/2	360	180	253	132	592	105	165	175	118	200	185	145	65	4-φ18
3	TD65-19/2	360	180	253	132	615	105	185	197	128	250	185	145	65	4-φ18
4	TD65-22/2	360	180	253	132	666	105	185	215	134	250	185	145	65	4-φ18
5	TD65-30/2	360	180	253	132	723	105	210	255	158	300	185	145	65	4-φ18
6	TD65-34/2	360	180	253	132	723	105	210	255	158	300	185	145	65	4-φ18
7	TD65-40/2	475	238	332	170	881	125	240	312	186	350	185	145	65	4-φ18
8	TD65-50/2	475	238	332	170	881	125	240	312	186	350	185	145	65	4-φ18
9	TD65-60/2	475	238	332	170	925	125	240	312	186	350	185	145	65	4-φ18
10	TD65-70/2	475	238	332	170	965	125	240	350	280	350	185	145	65	4-φ18
11	TD65-80/2	475	238	332	170	1030	125	240	400	310	400	185	145	65	4-φ18

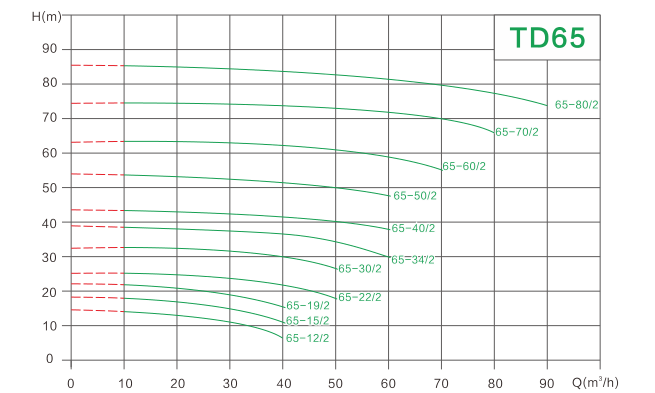

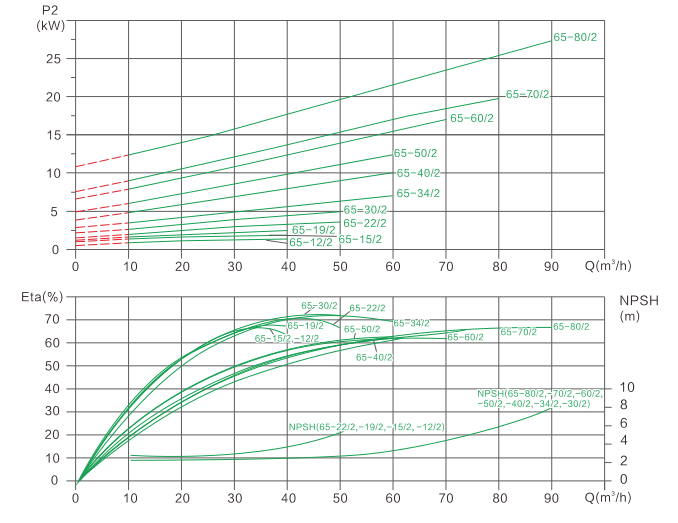

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	flow Q(m³/h)	Head H(m)	1×220V (kW)	3×380V (kW)	Speed (r/ min)
1	TD80-13/2	50	13	/	3	2900
2	TD80-18/2	50	18	/	4	2900
3	TD80-22/2	50	22	/	5.5	2900
4	TD80-28/2	50	28	/	7.5	2900
5	TD80-30/2	80	30	/	11	2900
6	TD80-38/2	80	38	/	15	2900
7	TD80-47/2	80	47	/	18.5	2900
8	TD80-60/2	80	60	/	22	2900
9	TD80-70/2	80	70	/	30	2900

BASE DIMENSION CHART

NO.	Model	Base model
1	TD80-13/2	Base A
2	TD80-18/2	Base A
3	TD80-22/2	Base A
4	TD80-28/2	Base A
5	TD80-30/2	Base A
6	TD80-38/2	Base A
7	TD80-47/2	Base A
8	TD80-60/2	Base A
9	TD80-70/2	Base A

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	10	20	30	40	50	60	70	80	90	100
1	TD80-13/2	3	H(m)	16.1	15.8	15.2	14.3	13	10.9
2	TD80-18/2	4		21.1	20.8	20.2	19.2	18	16.2	13.2
3	TD80-22/2	5.5		24.4	24.1	23.7	23	22	20.5	18	14.3
4	TD80-28/2	7.5		30.6	30.4	30	29.3	28	26.3	24	20.6
5	TD80-30/2	11		34.8	34.5	34.2	33.8	33.2	32.4	31.3	30	27.8	24.7
6	TD80-38/2	15		41.2	41.2	41.1	40.9	40.6	40.1	39.3	38	36	32.9
7	TD80-47/2	18.5		50.6	50.4	50	49.8	49.6	49.1	48.3	47	44.8	41.4
8	TD80-60/2	22		61.8	61.6	61.4	61.2	60.9	60.7	60.5	60	58.1	56.9
9	TD80-70/2	30		71.7	71.5	71.3	71.1	70.9	70.8	70.5	70	68.9	67.1

DIMENSIONS

NO.	Model	L	L1	L2	L3	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD80-13/2	440	220	260	133	620	100	196	197	128	250	200	160	80	8-φ18
2	TD80-18/2	440	220	260	133	675	100	196	215	134	250	200	160	80	8-φ18
3	TD80-22/2	440	220	260	133	730	100	220	255	158	300	200	160	80	8-φ18
4	TD80-28/2	440	220	260	133	730	100	220	255	158	300	200	160	80	8-φ18
5	TD80-30/2	500	250	340	171	891	115	260	312	186	350	200	160	80	8-φ18
6	TD80-38/2	500	250	340	171	891	115	260	312	186	350	200	160	80	8-φ18
7	TD80-47/2	500	250	340	171	935	115	260	312	186	350	200	160	80	8-φ18
8	TD80-60/2	500	250	340	171	975	115	260	350	280	350	200	160	80	8-φ18
9	TD80-70/2	500	250	340	171	1040	115	260	400	310	400	200	160	80	8-φ18

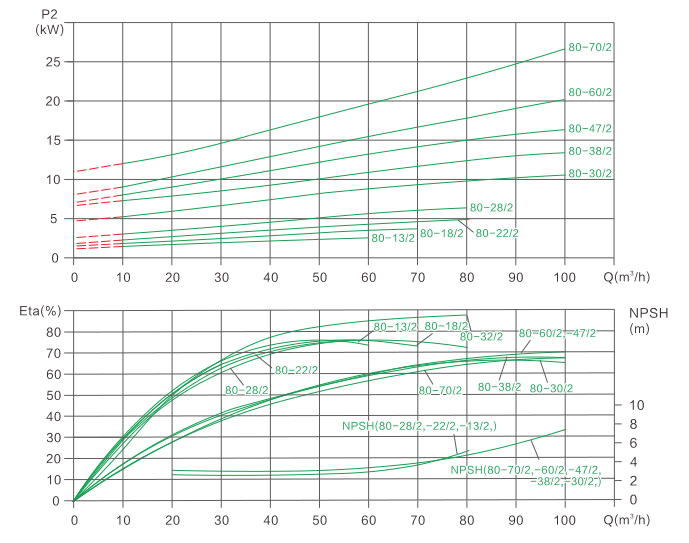

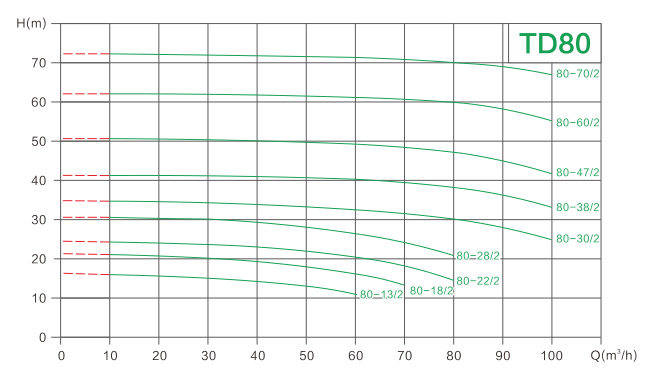

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	flow Q(m³/h)	Head H(m)	1×220V (kW)	3×380V (kW)	Speed (r/ min)
1	TD100-10/2	60	10	/	3	2900
2	TD100-15/2	60	15	/	4	2900
3	TD100-17/2	80	17	/	5.5	2900
4	TD100-22/2	80	22	/	7.5	2900
5	TD100-27/2	100	27	/	11	2900
6	TD100-33/2	100	33	/	15	2900
7	TD100-40/2	100	40	/	18.5	2900
8	TD100-48/2	100	48	/	22	2900
9	TD100-52/2	130	52	/	30	2900

BASE DIMENSION CHART

NO.	Model	Base model
1	TD100-10/2	Base A
2	TD100-15/2	Base A
3	TD100-17/2	Base A
4	TD100-22/2	Base A
5	TD100-27/2	Base A
6	TD100-33/2	Base A
7	TD100-40/2	Base B
8	TD100-48/2	Base B
9	TD100-52/2	Base B

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	10	20	30	40	50	60	70	80	90	100	110	120	130	145	160
1	TD100-10/2	3	H(m)	14.6	14	13.2	12.3	11.1	10	8.7	6.8
2	TD100-15/2	4		18.6	18.2	17.7	17.1	16.2	15	13.4	11
3	TD100-17/2	5.5		21.7	21.5	21.1	20.7	20	19.2	18.3	17	15.3	13	10.4
4	TD100-22/2	7.5		26.8	26.6	26.3	25.9	25.3	24.5	23.4	22	20.3	18.2	15.8
5	TD100-27/2	11		31.5	31.3	31.1	30.9	30.7	30.3	29.8	29.2	28.2	27	25.5	23.6	20.8
6	TD100-33/2	15		37.1	37	36.8	36.6	36.2	35.8	35.3	34.7	33.9	33	31.7	30.1	27.9
7	TD100-40/2	18.5		43.3	43.2	43.1	42.9	42.7	42.4	42.1	41.6	40.9	40	38.9	37.4	35.3
8	TD100-48/2	22		51.2	51.1	51	50.8	50.6	50.3	49.9	49.4	48.8	48	46.9	45.3	43.2
9	TD100-52/2	30		55.3	55.3	55.3	55.3	55.2	55.1	54.8	54.6	54.4	54.2	53.8	53.1	52	49	43.5

DIMENSIONS

NO.	Model	L	L1	L2	L3	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD100-10/2	450	225	275	147	616	105	185	197	128	250	220	180	100	8-φ18
2	TD100-15/2	450	225	275	147	670	105	185	215	134	250	220	180	100	8-φ18
3	TD100-17/2	500	250	275	147	763	140	215	255	158	300	220	180	100	8-φ18
4	TD100-22/2	500	250	275	147	763	140	215	255	158	300	220	180	100	8-φ18
5	TD100-27/2	550	275	280	150	905	140	248	312	186	350	220	180	100	8-φ18
6	TD100-33/2	550	275	280	150	905	140	248	312	186	350	220	180	100	8-φ18
7	TD100-40/2	550	275	335	172	955	140	253	312	186	350	220	180	100	8-φ18
8	TD100-48/2	550	275	335	172	995	140	253	350	280	350	220	180	100	8-φ18
9	TD100-52/2	550	275	335	172	1060	140	253	400	310	400	220	180	100	8-φ18

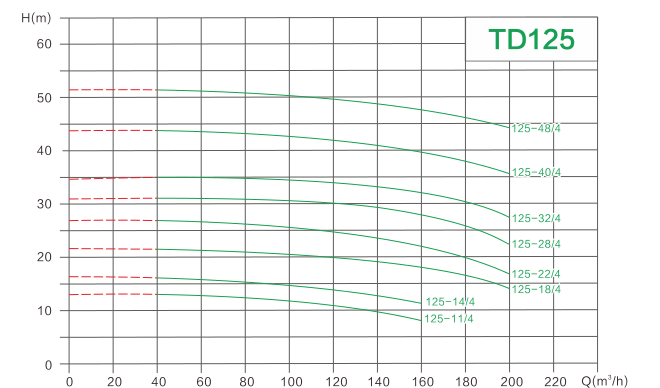

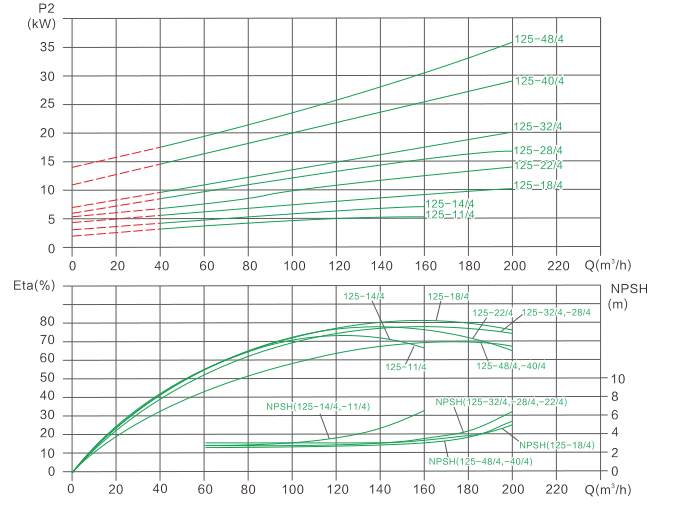

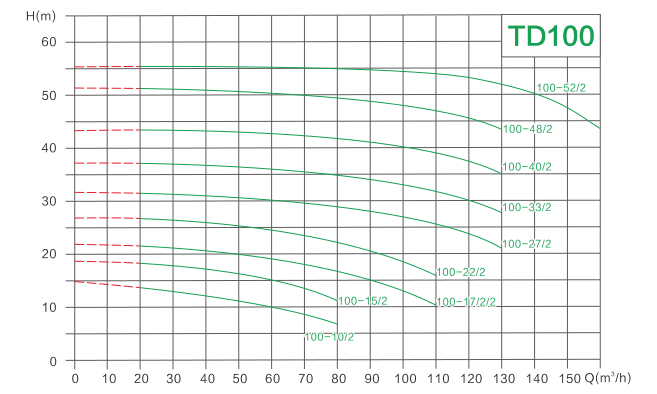

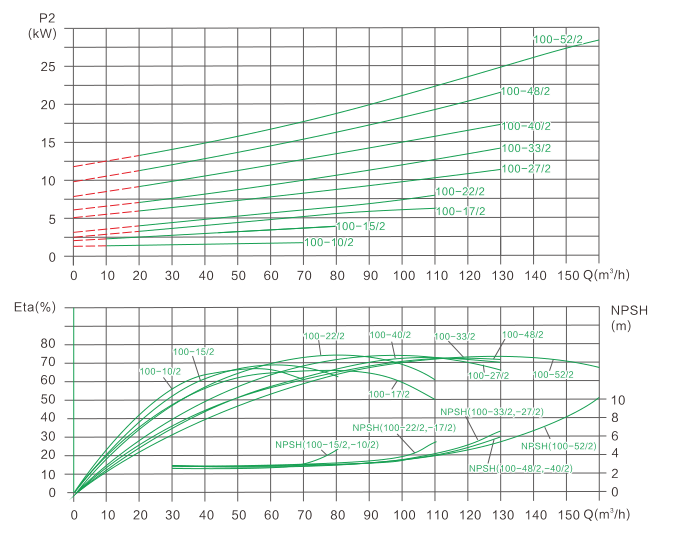

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	flow Q(m³/h)	Head H(m)	1×220V (kW)	3×380V (kW)	Speed (r/ min)
1	TD125-11/4	120	11	/	5.5	1450
2	TD125-14/4	120	14	/	7.5	1450
3	TD125-18/4	160	18	/	11	1480
4	TD125-22/4	160	22	/	15	1480
5	TD125-28/4	160	28	/	18.5	1480
6	TD125-32/4	160	32	/	22	1480
7	TD125-40/4	160	40	/	30	1480
8	TD125-48/4	160	48	/	37	1480

BASE DIMENSION CHART

NO.	Model	Base model
1	TD125-11/4	Base B
2	TD125-14/4	Base B
3	TD125-18/4	Base B
4	TD125-22/4	Base B
5	TD125-28/4	Base B
6	TD125-32/4	Base B
7	TD125-40/4	Base B
8	TD125-48/4	Base B

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	40	60	80	100	120	140	160	180	200
1	TD125-11/4	5.5	H(m)	12.9	12.7	12.4	11.8	11	9.9	8
2	TD125-14/4	7.5		16.2	15.9	15.5	14.9	14	12.8	11.2
3	TD125-18/4	11		21.5	21.3	21	20.6	19.9	19.1	18	16.4	14.1
4	TD125-22/4	15		26.7	26.5	26.2	25.7	24.9	23.7	22	19.8	16.7
5	TD125-28/4	18.5		30.9	30.8	30.7	30.5	30.1	29.3	28	25.8	22.2
6	TD125-32/4	22		34.6	34.6	34.5	34.4	34	33.3	32	30.2	27.3
7	TD125-40/4	30		43.9	43.6	43.3	42.9	42.2	41.3	40	38	35.4
8	TD125-48/4	37		51.5	51.3	51	50.5	49.9	49.1	48	46.4	44.2

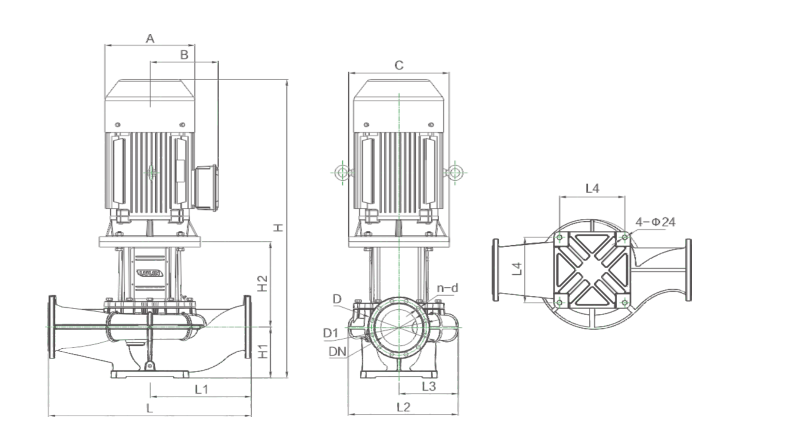

DIMENSIONS

NO.	Model	L	L1	L2	L3	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD125-11/4	620	310	380	205	840	220	215	255	158	300	250	210	125	8-φ18
2	TD125-14/4	620	310	380	205	840	220	215	255	158	300	250	210	125	8-φ18
3	TD125-18/4	800	400	425	225	1001	220	270	312	186	350	250	210	125	8-φ18
4	TD125-22/4	800	400	425	225	1001	220	270	312	186	350	250	210	125	8-φ18
5	TD125-28/4	800	400	480	255	1101	220	280	330	255	350	250	210	125	8-φ18
6	TD125-32/4	800	400	480	255	1136	220	280	330	255	350	250	210	125	8-φ18
7	TD125-40/4	800	400	545	280	1170	220	285	400	310	400	250	210	125	8-φ18
8	TD125-48/4	800	400	545	280	1216	220	305	450	325	450	250	210	125	8-φ18

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	flow Q(m³/h)	Head H(m)	1×220V (kW)	3×380V (kW)	Speed (r/ min)
1	TD150-10/4	200	10	/	7.5	1480
2	TD150-12.5/4	200	12.5	/	11	1480
3	TD150-17/4	200	17	/	15	1480
4	TD150-21/4	200	21	/	18.5	1480
5	TD150-25/4	200	25	/	22	1480
6	TD150-33/4	200	33	/	30	1480
7	TD150-40/4	200	40	/	37	1480
8	TD150-50/4	200	50	/	45	1480

BASE DIMENSION CHART

NO.	Model	Base model
1	TD150-10/4	Base B
2	TD150-12/4	Base B
3	TD150-17/4	Base B
4	TD150-21/4	Base B
5	TD150-25/4	Base B
6	TD150-33/4	Base B
7	TD150-40/4	Base B
8	TD150-50/4	Base B

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	50	80	110	140	170	200	220	240
1	TD150-10/4	7.5	H(m)	13.53	13.29	12.36	11.82	10.33	10	8.93	7.16
2	TD150-12.5/4	11		14.6	14.5	14.4	14.2	13.7	12.5	11.1	9.2
3	TD150-17/4	15		18.8	18.8	18.7	18.5	18	17	16.1	15
4	TD150-21/4	18.5		23.3	23.1	22.9	22.6	22	21	19.8	17.9
5	TD150-25/4	22		28	28	27.8	27.3	26.5	25	23.5	21.3
6	TD150-33/4	30		35.5	35.4	35.2	34.8	34.2	33	31.5	29.6
7	TD150-40/4	37		43.1	43	42.8	42.4	41.6	40	38.4	36.2
8	TD150-50/4	45		52.4	52.2	52	51.7	51.1	50	48.7	46.7

DIMENSIONS

NO.	Model	L	L1	L2	L3	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD150-10/4	800	400	407	227	818	170	240	255	158	300	285	240	150	8-φ22
2	TD150-12.5/4	800	400	447	240	991	220	255	312	186	350	285	240	150	8-φ22
3	TD150-17/4	800	400	447	240	1035	220	270	312	186	350	285	240	150	8-φ22
4	TD150-21/4	800	400	447	240	1091	220	270	330	255	350	285	240	150	8-φ22
5	TD150-25/4	800	400	505	270	1136	220	280	330	255	350	285	240	150	8-φ22
6	TD150-33/4	800	400	505	270	1163	220	280	400	310	400	285	240	150	8-φ22
7	TD150-40/4	900	450	580	285	1196	235	270	450	325	450	285	240	150	8-φ22
8	TD150-50/4	900	450	580	285	1221	235	270	450	325	450	285	240	150	8-φ22

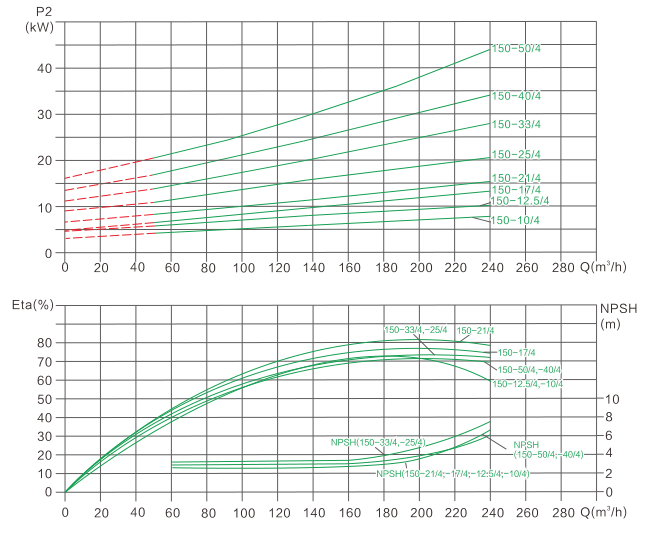

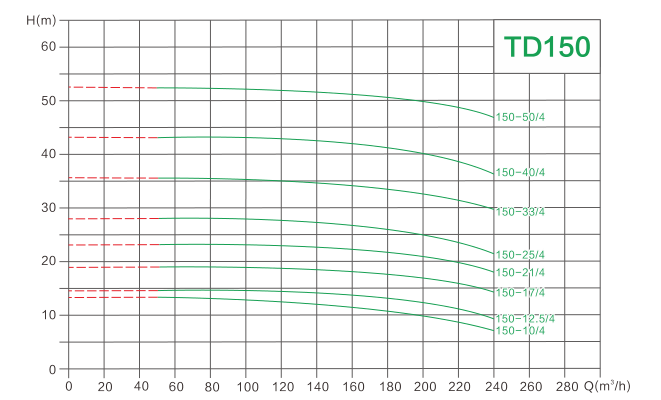

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	flow Q(m³/h)	Head H(m)	1×220V (kW)	3×380V (kW)	Speed (r/ min)
1	TD200-16/4	300	16	/	18.5	1480
2	TD200-19/4	300	19	/	22	1480
3	TD200-24/4	300	24	/	30	1480
4	TD200-31/4	300	31	/	37	1480
5	TD200-36/4	300	36	/	45	1480
6	TD200-47/4	300	47	/	55	1480
7	TD200-53/4	300	53	/	75	1480
8	TD200-12.5/4	400	12.5	/	22	1480
9	TD200-20/4	400	20	/	30	1480
10	TD200-23/4	400	23	/	37	1480
11	TD200-27/4	400	27	/	45	1480
12	TD200-32/4	400	32	/	55	1480
13	TD200-43/4	400	43	/	75	1480
14	TD200-50/4	400	50	/	90	1480

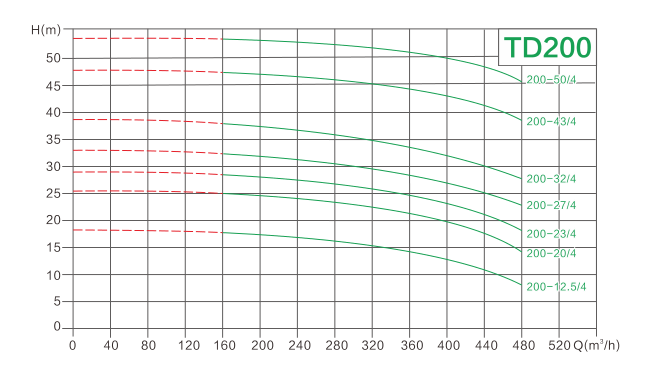

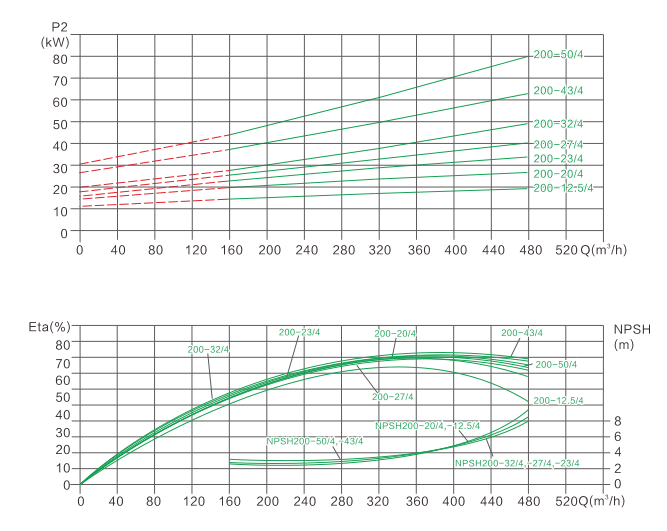

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	160	200	240	280	320	360	400	440	480
1	TD200-12.5/4	22	H(m)	17.2	16.9	16.5	15.9	15.1	14	12.5	10.7	8
2	TD200-20/4	30		24.6	24.4	24	23.6	22.8	21.7	20	17.5	14.2
3	TD200-23/4	37		28.1	27.8	27.4	26.8	25.9	24.8	23	20.9	18.2
4	TD200-27/4	45		32.1	31.7	30.2	30.5	29.6	28.4	27	24.9	22.5
5	TD200-32/4	55		37.5	37.1	36.5	35.7	34.7	33.3	32	29.9	27.7
6	TD200-43/4	75		47	46.7	46.4	45.9	45.3	44.4	43	41.1	38.6
7	TD200-50/4	90		52.9	52.8	52.6	52.2	51.7	51	50	48.3	45.5

DIMENSIONS

NO.	Model	L	L1	L2	L3	L4	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD200-12.5/4	1000	500	523	291	360	1326	270	420	360	280	350	340	295	200	12-φ22
2	TD200-20/4	1000	500	523	291	360	1353	270	420	400	305	400	340	295	200	12-φ22
3	TD200-23/4	1100	550	581	316	360	1408	270	450	450	335	450	340	295	200	12-φ22
4	TD200-27/4	1100	550	581	316	360	1433	270	450	450	335	450	340	295	200	12-φ22
5	TD200-32/4	1100	550	581	316	360	1487	270	457	490	365	550	340	295	200	12-φ22
6	TD200-43/4	1100	550	610	328	360	1570	270	457	550	400	550	340	295	200	12-φ22
7	TD200-50/4	1100	550	610	328	360	1621	270	457	550	400	550	340	295	200	12-φ22

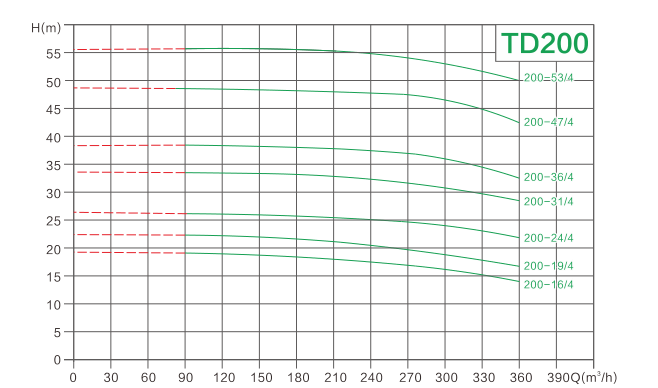

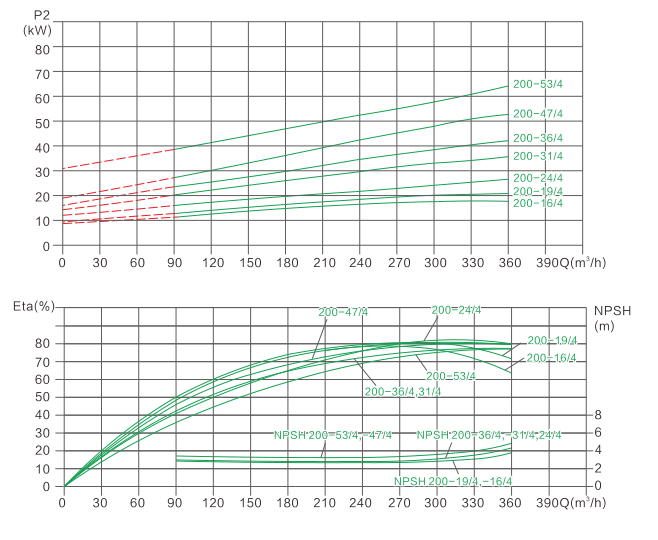

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	90	120	150	180	210	240	270	300	330	360
1	TD200-16/4	18.5	H(m)	19.6	19.4	19.3	18.9	18.6	17.9	16.8	16	14.9	13.8
2	TD200-19/4	22		22.5	22.4	22.1	21.6	20.7	20.4	19.8	19	17.2	16.1
3	TD200-24/4	30		26.1	26	25.8	25.7	25.4	25.1	24.6	24	23.1	21.9
4	TD200-31/4	37		34.1	33.7	33.4	33.3	33.2	33	32.1	31	29.3	27.4
5	TD200-36/4	45		38.4	38.2	38	37.9	37.7	37.1	36.4	36	33.8	32.2
6	TD200-47/4	55		48.7	48.5	48.4	48.2	48.1	47.9	47.7	47	44.1	42.4
7	TD200-53/4	75		55.7	55.7	55.7	55.5	55.3	54.8	54	53	51.6	50

DIMENSIONS

NO.	Model	L	L1	L2	L3	L4	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD200-16/4	1000	500	523	291	360	1290	270	420	360	280	350	340	295	200	12-φ22
2	TD200-19/4	1000	500	523	291	360	1326	270	420	360	280	350	340	295	200	12-φ22
3	TD200-24/4	1100	550	581	316	360	1350	270	420	400	305	400	340	295	200	12-φ22
4	TD200-31/4	1100	550	581	316	360	1410	270	450	450	335	450	340	295	200	12-φ22
5	TD200-36/4	1100	550	581	316	360	1431	270	450	450	335	450	340	295	200	12-φ22
6	TD200-47/4	1100	550	610	328	360	1487	270	457	490	365	550	340	295	200	12-φ22
7	TD200-53/4	1100	550	610	328	360	1570	270	457	550	400	550	340	295	200	12-φ22

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	flow Q(m³/h)	Head H(m)	1×220V (kW)	3×380V (kW)	Speed (r/ min)
1	TD250-16/4	500	16	/	30	1480
2	TD250-19/4	500	19	/	37	1480
3	TD250-22/4	500	22	/	45	1480
4	TD250-29/4	500	29	/	55	1480
5	TD250-36/4	500	36	/	75	1480
6	TD250-47/4	500	47	/	90	1480
7	TD250-56/4	500	56	/	110	1480
8	TD250-12.5/4	630	12.5	/	30	1480
9	TD250-14/4	630	14	/	37	1480
10	TD250-17/4	630	17	/	45	1480
11	TD250-20/4	630	20	/	55	1480
12	TD250-26/4	630	26	/	75	1480
13	TD250-32/4	630	32	/	90	1480
14	TD250-40/4	630	40	/	110	1480
15	TD250-50/4	630	50	/	132	1480

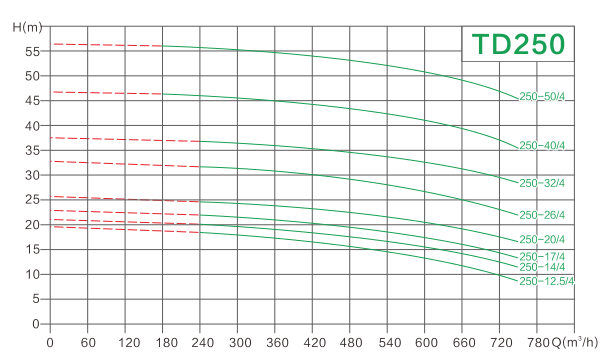

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	240	300	360	420	480	540	600	630	660	720	750
1	TD250-12.5/4	30	H(m)	18.4	17.9	17.2	16.4	15.5	14.5	13.2	12.5	11.8	9.9	8.7
2	TD250-14/4	37		20	19.5	18.9	18.2	17.5	16.6	15.6	14	13.4	12.6	11.6
3	TD250-17/4	45		21.8	21.3	20.8	20.1	19.4	18.6	17.6	17	16.3	14.4	13.4
4	TD250-20/4	55		24.5	24.1	23.7	23.1	22.4	21.5	20.5	20	19.3	17.6	16.5
5	TD250-26/4	75		31.7	31.1	30.6	29.9	29.1	28.2	26.8	26	25.2	23.1	21.9
6	TD250-32/4	90		36.7	36.3	35.7	35.1	34.3	33.5	32.6	32	31.3	29.5	28.4
7	TD250-40/4	110		46	45.5	44.9	44.2	43.4	42.3	40.8	40	39.1	36.8	35.5
8	TD250-50/4	132		55.6	55.2	54.6	53.9	53.2	52.3	50.9	50	49	46.7	45.4

DIMENSIONS

NO.	Model	L	L1	L2	L3	L4	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD250-12.5/4	1100	550	585	329	390	1428	300	465	397	314	400	405	355	250	12-φ26
2	TD250-14/4	1100	550	585	329	390	1486	300	495	445	334	450	405	355	250	12-φ26
3	TD250-17/4	1100	550	585	329	390	1511	300	495	445	334	450	405	355	250	12-φ26
4	TD250-20/4	1100	550	585	329	390	1580	300	495	485	367	550	405	355	250	12-φ26
5	TD250-26/4	1100	550	619	342	440	1650	300	507	547	407	550	405	355	250	12-φ26
6	TD250-32/4	1100	550	619	342	440	1701	300	507	547	407	550	405	355	250	12-φ26
7	TD250-40/4	1200	600	665	360	440	1840	305	525	645	535	660	405	355	250	12-φ26
8	TD250-50/4	1200	600	665	360	440	1990	305	525	645	535	660	405	355	250	12-φ26

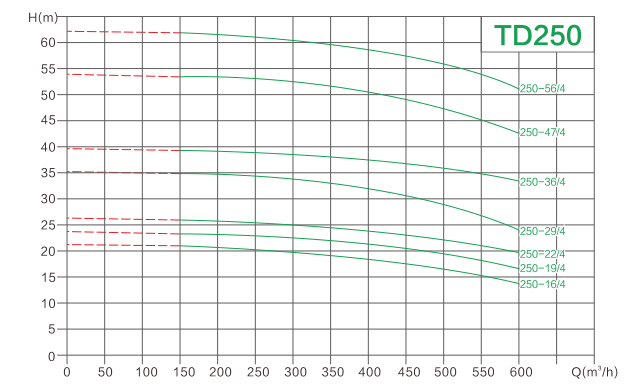

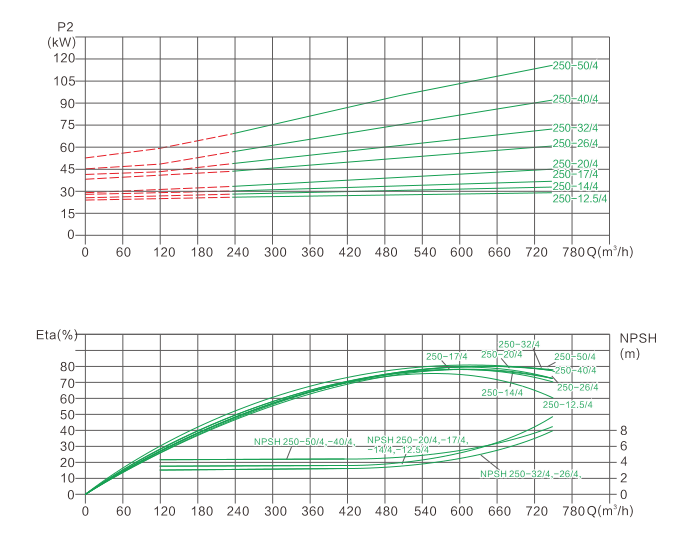

PERFORMANCE GRAPH

PERFORMANCE PARAMETERS

NO.	Model	Motor(kW)	Q(m³/h)	150	200	250	300	350	400	450	500	550	600
1	TD250-16/4	30	H(m)	20.5	20.4	20.1	19.6	19	18.2	17.3	16	14.7	13.3
2	TD250-19/4	37		22.7	22.4	22.1	21.7	21.3	20.8	20.1	19	17.9	16.6
3	TD250-22/4	45		25.7	25.3	25.1	24.7	24.3	23.8	23.1	22	21	19.7
4	TD250-29/4	55		34.6	34.4	34	33.1	32.6	31.8	30.6	29	26.8	23.9
5	TD250-36/4	75		39.1	38.8	38.5	38.2	37.8	37.3	36.8	36	34.3	32.5
6	TD250-47/4	90		53.3	53.1	52.9	52.4	51.8	50.6	49.2	47	45	42.5
7	TD250-56/4	110		61.6	61.4	60.9	60.2	59.5	58.6	57.4	56	53.8	51

DIMENSIONS

NO.	Model	L	L1	L2	L3	L4	H	H1	H2	A	B	C	D	D1	DN	n-d
1	TD250-16/4	1100	550	585	329	390	1428	300	465	397	314	400	405	355	250	12-φ26
2	TD250-19/4	1100	550	585	329	390	1486	300	495	445	334	450	405	355	250	12-φ26
3	TD250-22/4	1100	550	585	329	390	1511	300	495	445	334	450	405	355	250	12-φ26
4	TD250-29/4	1100	550	619	342	440	1580	300	507	485	367	550	405	355	250	12-φ26
5	TD250-36/4	1100	550	619	342	440	1650	300	507	547	407	550	405	355	250	12-φ26
6	TD250-47/4	1200	600	665	360	440	1701	305	507	547	407	550	405	355	250	12-φ26
7	TD250-56/4	1200	600	665	360	440	1840	305	525	645	535	660	405	355	250	12-φ26

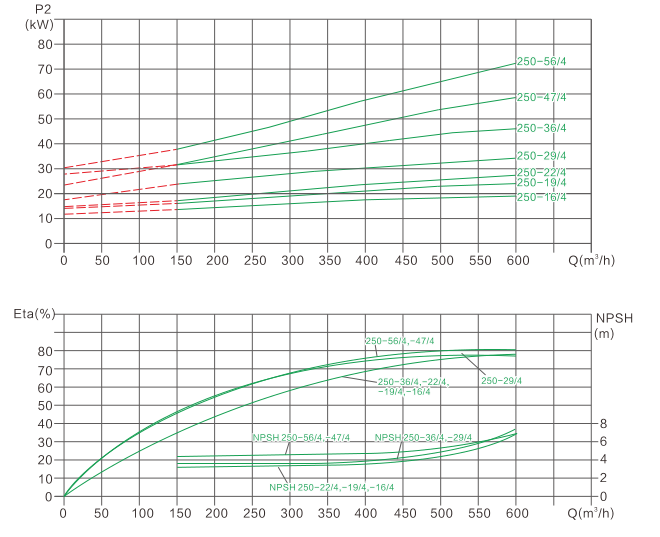

PERFORMANCE GRAPH

Keywords:

Pipeline pumps

COOKIES

required

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

analyze

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

Feature

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

advertise

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.

QUICK-DISASSEMBLY PIPELINE CIRCULATION PUMP

COOKIES

Sorry，当前栏目暂无内容!

Sorry，The current column has no content!
