QDX(S)/QX(S)
NEW STAINLESS STEEL SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Head: 7-32m
Power:0.37-1.5kw
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: NEW STAINLESS STEEL SUBMERSIBLE PUMP
- Commodity ID: QDX(S)/QX(S)
Flow: 1.5-40m³/h<br/> Head: 7-32m<br/> Power:0.37-1.5kw
Product Description
QDX and QX submersible electric pumps (hereinater referred to as electric pumps) comply with the GB/T25409-2010 standard, and the production license number is: (Shanghai)XK06-003-003. The electric pump consists of three parts: a water pump, a seal, and an electric motor. The electric motor is located at the upper part of the electric pump and is a single-phase or three-phase asynchronous motor. The water pump is located at the lower part of the electric pump and has a centrifugal impeller and volute structure. A double-end mechanical seal is used between the water pump and the motor sealing. Each fixed-stop seal uses an "O"-shaped oil-resistant rubber sealing ring for static sealing.

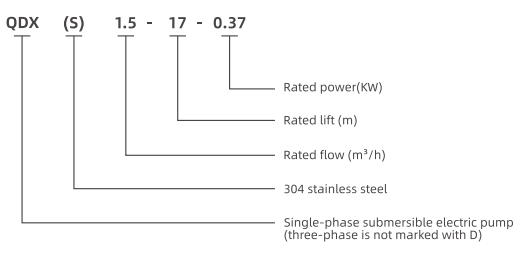

Model Description
Uses and characteristics
Due to its small size and light weight, this series of electric pumps is particularly suitable for rural farmland drainage and irrigation, domestic water use, garden sprinkler irrigation, well water lifting, aquaculture water supply and drainage, etc; it can be used to eliminate industrial water and drainage in building construction.
Conditions of Use
1. The medium temperature does not exceed +40℃
2. The pH value of the medium is between 4-10
3. The maximum density of the medium is 1050kg/m³
4. The frequency is 50Hz, and the voltage is 220V single-phase AC, 380V three-phase AC, and the voltage fluctuation range is 0.9-1.1 times the rated value.
5. The diving depth does not exceed 5m
-

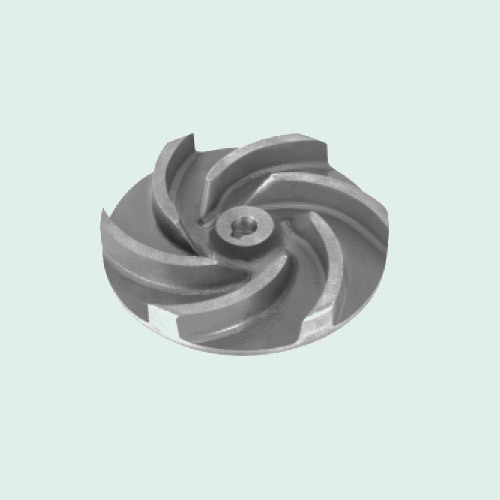

CAST IRON IMPELLER
Efficient & Energy Saving
Double helix no clogging,
good overcurrent capacity, high efficiency
Technical Parameter
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous (mm) (m³/h) (m) (KW) (V) (r/ min) 1 QX(S)1.5-17-0.37 25 1.5 17 0.37 380 3000 2 QDX(S)1.5-17-0.37 25 1.5 17 0.37 220 3000 3 QX(S)3-20-0.55 25 3 20 0.55 380 3000 4 QDX(S)3-20-0.55 25 3 20 0.55 220 3000 5 QX(S)10-12-0.55 50 10 12 0.55 380 3000 6 QDX(S)10-12-0.55 50 10 12 0.55 220 3000 7 QX(S)15-7-0.55 65 15 7 0.55 380 3000 8 QDX(S)15-7-0.55 65 15 7 0.55 220 3000 9 QX(S)15-32-0.75 25 15 32 0.75 380 3000 10 QDX(S)15-32-0.75 25 15 32 0.75 220 3000 11 QX(S)10-16-0.75 50 10 16 0.75 380 3000 12 QDX(S)10-16-0.75 50 10 16 0.75 220 3000 13 QX(S)25-7-0.75 65 25 7 0.75 380 3000 14 QDX(S)25-7-0.75 65 25 7 0.75 220 3000 15 QX(S)3-30-1.1 25 3 30 1.1 380 3000 16 QDX(S)3-30-1.1 25 3 30 1.1 220 3000 17 QX(S)15-14-1.1 50 15 14 1.1 380 3000 18 QDX(S)15-14-1.1 50 15 14 1.1 220 3000 19 QX(S)25-9-1.1 65 25 9 1.1 380 3000 20 QDX(S)25-9-1.1 65 25 9 1.1 220 3000 21 QX(S)40-7-1.1 80 40 7 1.1 380 3000 22 QDX(S)40-7-1.1 80 40 7 1.1 220 3000 23 QX(S)6-32-1.5 25 6 32 1.5 380 3000 24 QDX(S)6-32-1.5 25 6 32 1.5 220 3000 25 QX(S)15-18-1.5 50 15 18 1.5 380 3000 26 QDX(S)15-18-1.5 50 15 18 1.5 220 3000 27 QX(S)25-12-1.5 65 25 12 1.5 380 3000 28 QDX(S)25-12-1.5 65 25 12 1.5 220 3000 29 QX(S)40-9-1.5 80 40 9 1.5 380 3000 30 QDX(S)40-9-1.5 80 40 9 1.5 220 3000 -
