WQG
HIGH LIFT SUBMERSIBLE SEWAGE PUMP
Classification:
Submersible sewage pump
Head:68~235m
Power:5.5~22kW
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: HIGH LIFT SUBMERSIBLE SEWAGE PUMP
- Commodity ID: WQG
Flow:10m³/h<br/> Head:68~235m<br/> Power:5.5~22kW<br/>
Product Description
High lift model with a high head
This sewage pump adopts a multi-stage impeller design, which is characterized by a multi-stage impeller, which has a higher head sewage effect

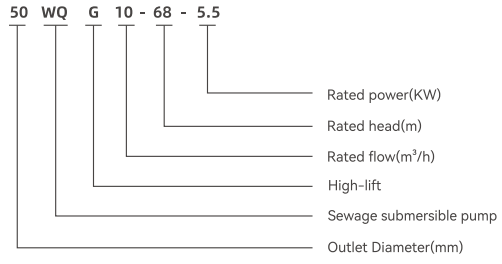

Model Description
Uses and characteristics
This series of electric pumps are widely used in industries, agriculture, construction,municipal environmental protection, and other places. They can pump liquids containing solid particles such as short fibers, paper scraps, sediment, etc, such as mud, mortar,domestic wastewater, sewage, feces, etc. They are ideal water equipment for agricultural drainage and irrigation, river and pond dredging, but are not suitable for use in environments with explosion-proof requirements.
Conditions of Use
1.Medium temperature does not exceed +40℃
2.The PH value of the medium is between 4 and 10
3. The maximum density of the medium is 1050kg/m³
4.The power frequency is 50Hz,and the voltage fluctuation range is 0.9-1.1 times the rated value
5. Diving depth does not exceed 5m
-

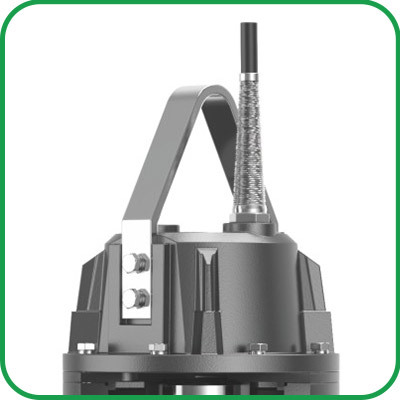

1. Metal Sheath: Anti bending -
2. Dual Bearings: Increase service life and operate more stably -
3. Class H Enameled Wire:Resistant to high temperature of 180℃ -
4. Rotor Shaft: The overcflow part is welded with stainless steel
-

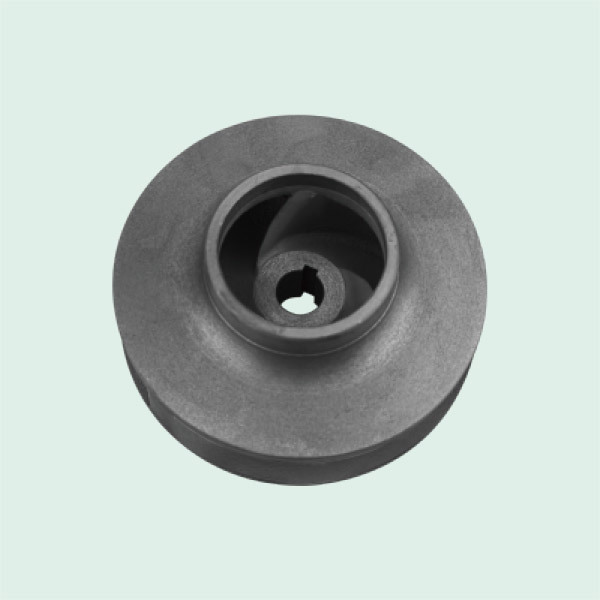

CAST IRON IMPELLER
Efficient & Energy Saving
Double helix no clogging, good overcurrent capacity, high efficiency
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous (mm) (m³/h) (m) (KW) (V) (r/ min) 1 50WQG10-68/2-5.5 50 10 68 5.5 380 3000 2 50WQG10-102/3-7.5 50 10 102 7.5 380 3000 3 50WQG10-136/4-11 50 10 136 11 380 3000 4 50WQG10-170/5-15 50 10 170 15 380 3000 5 50WQG10-200/6-18.5 50 10 200 18.5 380 3000 6 50WQG10-235/7-22 50 10 235 22 380 3000 -
Page information is being organized
-
Page information is being organized
