ASWQ(D)
CUTTING DEVICE SEWAGE SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Head: 10-30
Power:0.75-22kw
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: CUTTING DEVICE SEWAGE SUBMERSIBLE PUMP
- Commodity ID: ASWQ(D)
Flow: 10-400m³/h<br/> Head: 10-30<br/> Power:0.75-22kw
Product Description
This sewage cutting pump is designed with a unique cutting method, and the impeller adopts a semi-open rotary design. The design features high efficiency in cutting dirt, fast discharge, and high efficiency and energy conservation, Cut and crush the debris in general sewage such as plastic bags and cloth strips making it difficut to block the sewage discharge, The impeller is made of 3Cr13 material and has undergone heat treatment to increase wear resistance, rust, and prolong the lifespan of the water pump, resulting in higher efficiency.

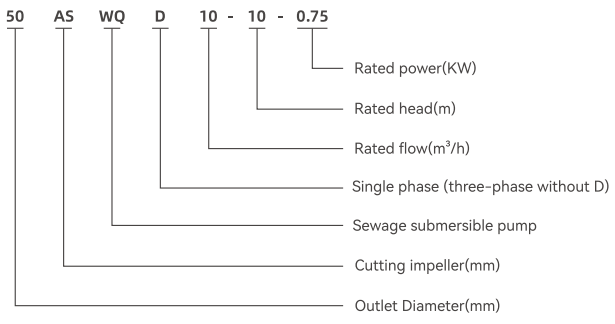

Model Description
Uses and characteristics
This series of electric pumps is used in sewage treatment equipment, pressurized drainage systems, floor garage sewage discharge, sewage discharge with sediment in public places such as restaurants, septic tanks, biogas digesters, industrial and agricultural drainage systems, and municipal engineering drainage systems.
-

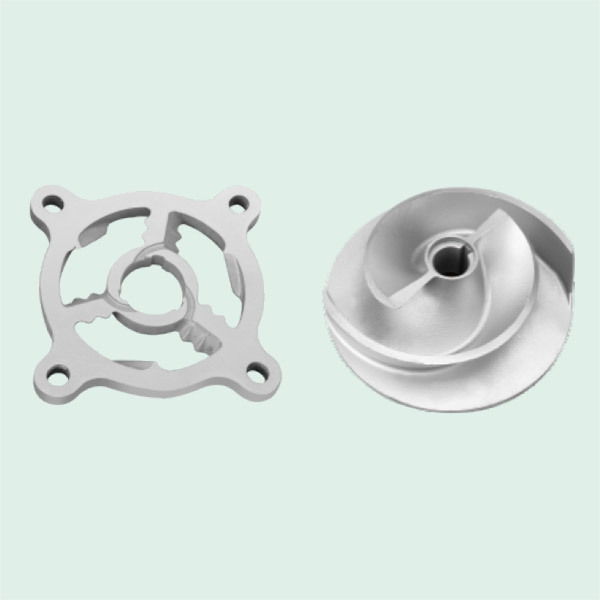

CUTTING IMPELLER(N)
Wear Resistance
It is made of alloy steel casting
Sharp and not easily damaged
Strong cutting & Efficient drainage
-

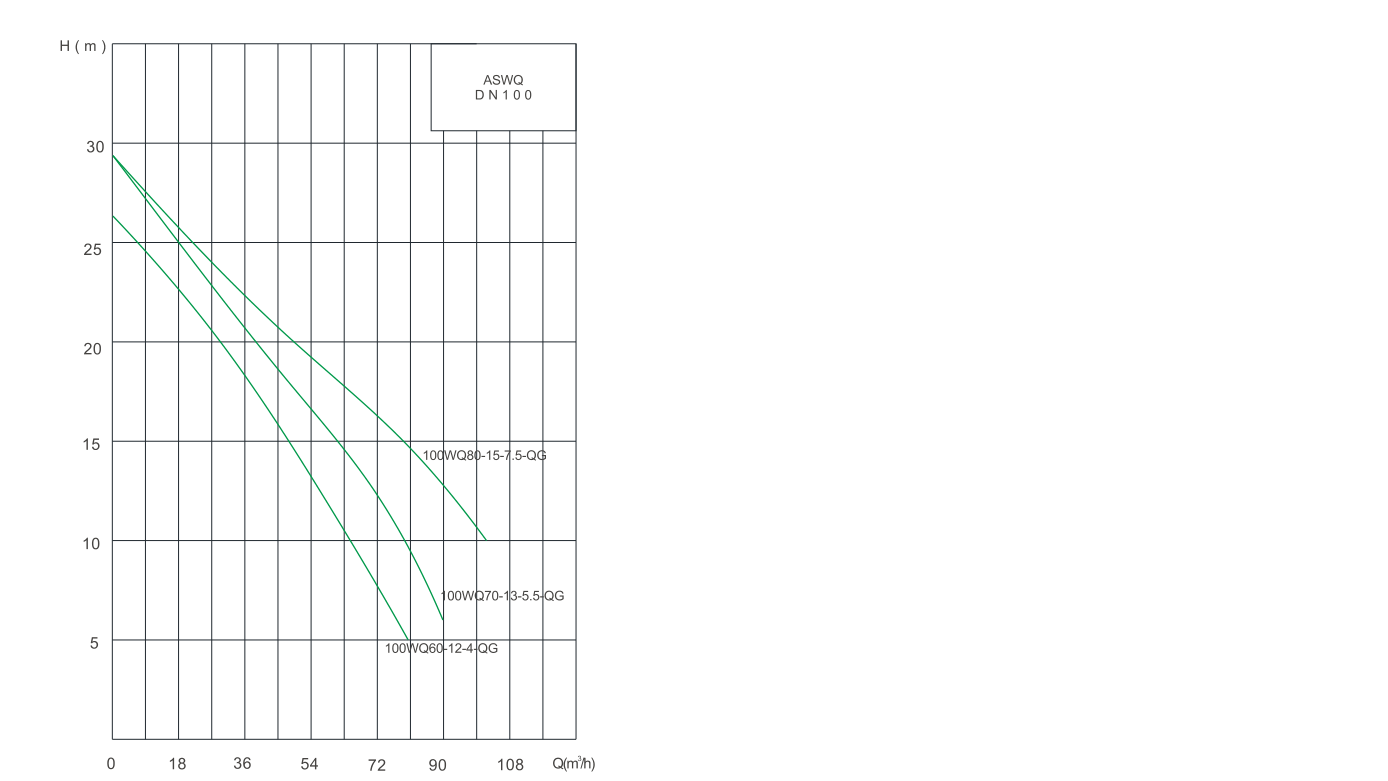

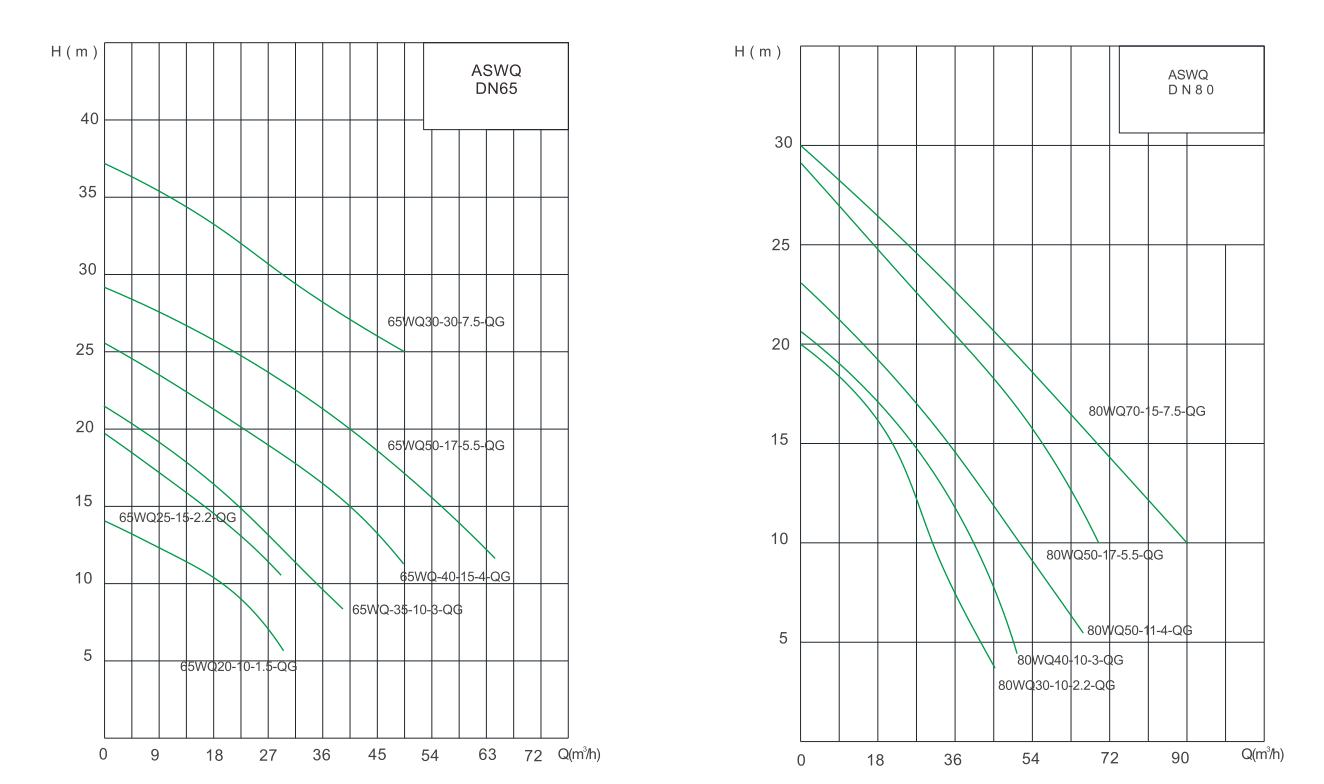

Graph
Technical Parameter
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous Rated frequency (mm) (m³/h) (m) (KW) (V) (r/ min) (Hz) 1 50ASWQ10-10-0.75 50 10 10 0.75 380 2860 50 2 50ASWQD10-10-0.75 50 10 10 0.75 220 2860 50 3 50ASWQ12-10-1.1 50 12 10 1.1 380 2860 50 4 50ASWQD12-10-1.1 50 12 10 1.1 220 2860 50 5 50ASWQ15-15-1.5 50 15 15 1.5 380 2860 50 6 50ASWQD15-15-1.5 50 15 15 1.5 220 2860 50 7 65ASWQ20-12-1.5 65 20 12 1.5 380 2860 50 8 65ASWQD20-12-1.5 65 20 12 1.5 220 2860 50 9 50ASWQ15-20-2.2 50 15 20 2.2 380 2860 50 10 65ASWQ25-15-2.2 65 25 15 2.2 380 2860 50 11 65ASWQD25-15-2.2 65 25 15 2.2 220 2860 50 12 80ASWQ35-10-2.2 80 35 10 2.2 380 2860 50 13 80ASWQD35-10-2.2 80 35 10 2.2 220 2860 50 14 50ASWQ20-20-3 50 20 20 3 380 2860 50 15 65ASWQ35-15-3 65 35 15 3 380 2860 50 16 80ASWQ40-15-3 80 40 15 3 380 2860 50 17 50ASWQ25-22-4 50 25 22 4 380 2860 50 18 65ASWQ40-20-4 65 40 20 4 380 2860 50 19 80ASWQ50-15-4 80 50 15 4 380 2860 50 20 100ASWQ60-13-4 100 60 13 4 380 2860 50 21 65ASWQ50-20-5.5 65 50 20 5.5 380 2860 50 22 80ASWQ50-20-5.5 80 50 20 5.5 380 2860 50 23 100ASWQ70-15-5.5 100 70 15 5.5 380 2860 50 24 65ASWQ30-30-7.5 65 30 30 7.5 380 2860 50 25 80ASWQ70-20-7.5 80 70 20 7.5 380 2860 50 26 100ASWQ100-15-7.5 100 100 15 7.5 380 2860 50 27 150ASWQ150-5-7.5 150 150 5 7.5 380 2860 50 28 100ASWQ80-25-11 100 80 25 11 380 1480 50 29 150ASWQ150-15-11 150 150 15 11 380 1480 50 30 100ASWQ80-30-15 100 80 30 15 380 1480 50 31 150ASWQ200-15-15 150 200 15 15 380 1480 50 32 150ASWQ250-15-18.5 150 250 15 18.5 380 1480 50 33 200ASWQ350-12-18.5 200 350 12 18.5 380 1480 50 34 150ASWQ300-15-22 150 300 15 22 380 1480 50 35 200ASWQ400-10-22 200 400 10 22 380 1480 50 -

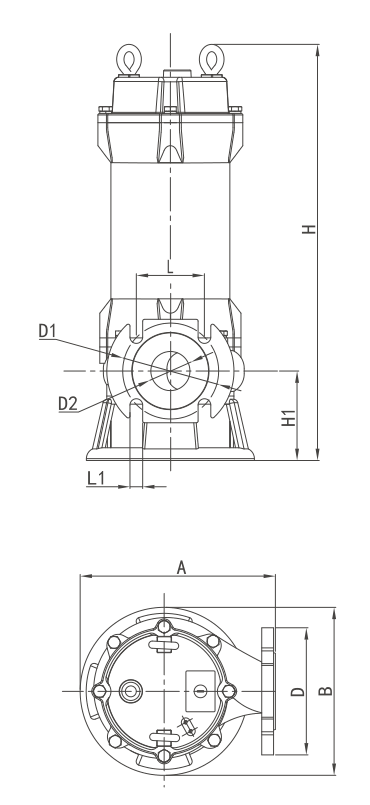

Overall dimension
N0. Model A
(mm)B
(mm)H
(mm)H1
(mm)D D1 n-d D2 1 50ASWQ10-10-0.75 205 175 500 75 φ140 φ110 14 φ50 2 50ASWQD10-10-0.75 205 175 500 75 φ140 φ110 14 φ50 3 50ASWQ12-10-1.1 205 175 500 75 φ140 φ110 14 φ50 4 50ASWQD12-10-1.1 205 175 500 75 φ140 φ110 14 φ50 5 50ASWQ15-15-1.5 250 240 600 120 φ140 φ110 14 φ50 6 50ASWQD15-15-1.5 250 240 600 120 φ140 φ110 14 φ50 7 65ASWQ20-12-1.5 250 240 600 120 φ160 φ130 14 φ65 8 65ASWQD20-12-1.5 250 240 600 120 φ160 φ130 14 φ65 9 50ASWQ15-20-2.2 295 265 650 130 φ140 φ110 14 φ50 10 65ASWQ25-15-2.2 295 265 650 130 φ160 φ130 14 φ65 11 65ASWQD25-15-2.2 295 265 650 130 φ160 φ130 14 φ65 12 80ASWQ35-10-2.2 295 265 650 130 φ190 φ150 14 φ80 13 80ASWQD35-10-2.2 295 265 650 130 φ190 φ150 14 φ80 14 50ASWQ20-20-3 280 240 650 130 φ140 φ110 14 φ50 15 65ASWQ35-15-3 280 240 650 130 φ160 φ130 14 φ65 16 80ASWQ40-15-3 280 240 650 130 φ190 φ150 14 φ80 17 50ASWQ25-22-4 315 265 650 130 φ140 φ110 14 φ50 18 65ASWQ40-20-4 315 265 650 130 φ160 φ130 14 φ65 19 80ASWQ50-15-4 315 265 650 130 φ190 φ150 14 φ80 20 100ASWQ60-13-4 315 265 650 130 φ210 φ170 14 φ100 21 65ASWQ50-20-5.5 325 270 750 140 φ160 φ130 14 φ65 22 80ASWQ50-20-5.5 325 270 750 140 φ190 φ150 18 φ80 23 100ASWQ70-15-5.5 325 270 750 140 φ210 φ170 18 φ100 24 65ASWQ30-30-7.5 335 285 750 140 φ160 φ130 18 φ65 25 80ASWQ70-20-7.5 335 285 750 140 φ190 φ150 18 φ80 26 100ASWQ100-15-7.5 335 285 750 140 φ210 φ170 18 φ100 27 150ASWQ150-5-7.5 335 285 750 140 φ265 φ225 18 φ150 28 100ASWQ80-25-11 600 510 1050 210 φ210 φ170 18 φ100 29 150ASWQ150-15-11 600 510 1050 210 φ265 φ225 18 φ150 30 100ASWQ80-30-15 600 510 1050 210 φ210 φ170 18 φ100 31 150ASWQ200-15-15 600 510 1050 210 φ265 φ225 18 φ150 32 150ASWQ250-15-18.5 600 520 1130 230 φ265 φ225 18 φ150 33 200ASWQ350-12-18.5 600 520 1130 230 φ320 φ280 18 φ200 34 150ASWQ300-15-22 600 520 1130 230 φ265 φ225 18 φ150 35 200ASWQ400-10-22 600 520 1130 230 φ320 φ280 18 φ200
