WQ
SEWAGE SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Head:9-11m
Power:1.5-2.2kw
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail

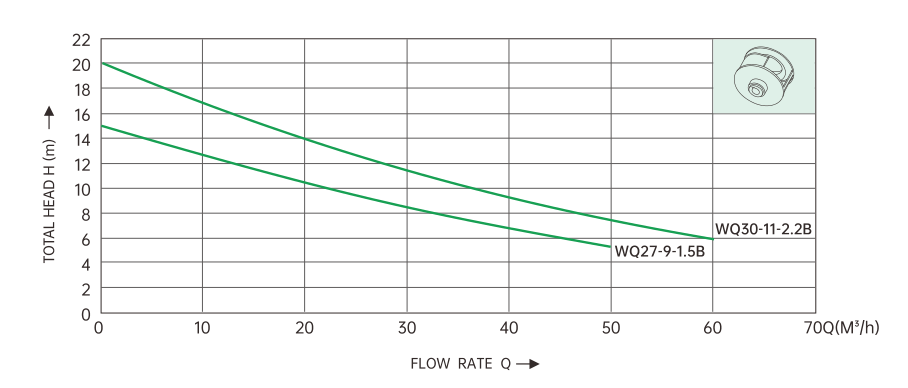

- Curve chart
- Installation diagram
-
- Commodity name: SEWAGE SUBMERSIBLE PUMP
- Commodity ID: WQ
Flow: 27-30m³/h<br/> Head:9-11m<br/> Power:1.5-2.2kw
Application
Wastewater drainage in factories, construction sites and commercial facilities
Drainage system in municipal sewage treatment plants
Drainage station in residential quarters
Municipal projects
Methane pools and field irrigation in the countryside
Conditions of use
Max: immersion depth: 5m
Max: liquid temperature: +40℃
Liquid PH value: 5-9
Liquid kinematic viscosity: 7×10-6~23×10-6m2/s
Max. liquid density: 1.2×10³ kg/m³
Motor
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: lPX8

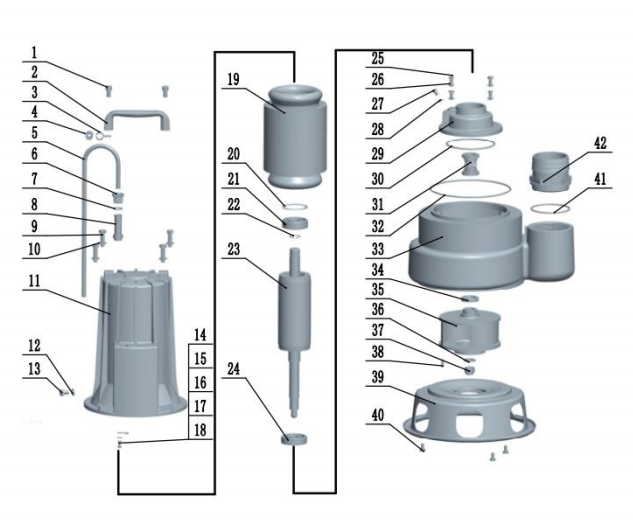

DIAGRAM
NO. DESCRIPTION NO. DESCRIPTION 1 Screw 22 Washer 2 Handle 23 Rotor 3 Cable Presser 24 Bearing 4 Rubber cover 25 Screw 5 Cable 26 Washer 6 Nut 27 Screw 7 Washer 28 Seal 8 Cable protector 29 Bearing holder 9 Bolt 30 O-Ring 10 Washer 31 Mechanical Seal 11 Pump Casing 32 O-Ring 12 Washer 33 Pump body 13 Bolt 34 Oil Seal 14 Screw 35 Impeller 15 Terminal 36 Washer 16 Spring Washer 37 Nut 17 Washer 38 Key 18 Gound plate 39 Net basement 19 Stator 40 Bolt 20 Wave Spring 41 O-Ring 21 Bearing 42 Outlet connector -
Technical Parameter
Model Power Outlet
DiameterVoltage/
FrequencyMax.
FlowMax.
HeadMax.
Diameter of
ParticleG. W. Dimensions (kw) (mm) (V/HZ) (m³/h) (m) (mm) (kg) (cm) WQ27-9-1.5B 1.5 75 220/50 27 9 50 40 35X27X50 WQ30-11-2.2B 2.2 75 220/50 30 11 50 43.5 33X27.5X56 -
Dimensions(mm)

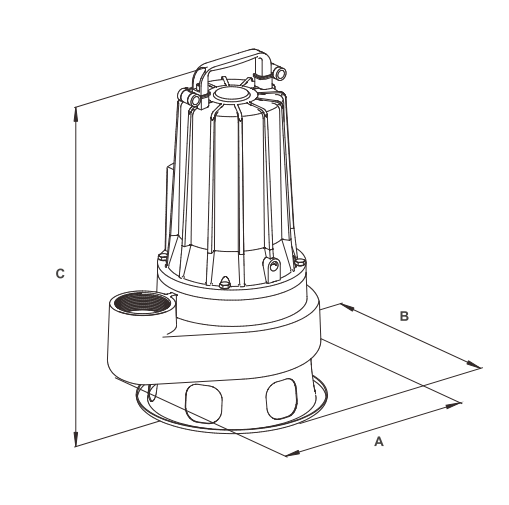

MODEL A B C WQD27-9-1.5B 349 270 521 WQD30-11-2.2B 349 270 521
