ASWQ(D)F
STAINLESS STEEL SEWAGE SUBMERSIBLE PUMP
Classification:
Sewage pump series
Head: 10-15m
Power:0.75-2.2kw
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: STAINLESS STEEL SEWAGE SUBMERSIBLE PUMP
- Commodity ID: ASWQ(D)F
Flow: 10-20m³/h<br/> Head: 10-15m<br/> Power:0.75-2.2kw
Uses and characteristics
Applicable to buildings, hospitals, residential, municipal engineering, road traffic construction, factory sewage, aquaculture, pharmaceutical, beverage, seawater salt water, general corrosive media containing solid particles, long fiber wastewater, sewage.
Conditions of Use
1. Based on the center of the impeller, the depth of submergence shall not exceed 5 meters;
2. The temperature of the conveying medium shall not exceed 40℃;
3. The pH value of the conveying medium is 4-10;
4. The kinematic viscosity of the conveying medium is 7x10-7~23x10-6 m2/s;
5 . The maximum density of the conveying medium is 1050 kg/m³
-

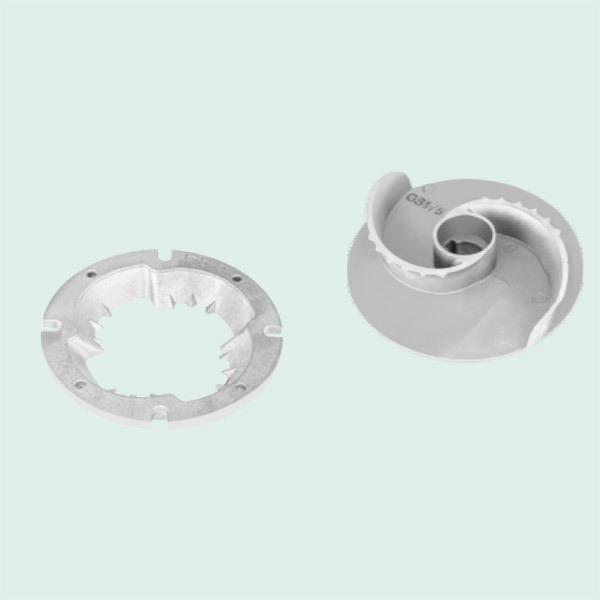

CUTTING IMPELLER(N)
Wear Resistance
It is made of alloy steel casting, Sharp and not easily damaged
Strong cutting & Efficient drainage
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous (mm) (m³/h) (m) (KW) (V) (r/ min) 1 50ASWQDF10-10-0.75 50 10 10 0.75 220 2900 2 50ASWQF10-10-0.75 50 10 10 0.75 380 2900 3 50ASWQDF10-12-1.1 50 10 12 1.1 220 2900 4 50ASWQF10-12-1.1 50 10 12 1.1 380 2900 5 50ASWQDF15-12-1.5 50 15 12 1.5 220 2900 6 50ASWQF15-12-1.5 50 15 12 1.5 380 2900 7 50ASWQDF20-15-2.2 50 20 15 2.2 220 2900 8 50ASWQF20-15-2.2 50 20 15 2.2 380 2900 -
