ASWQ(D)-1
CUTTING DEVICE SEWAGE SUBMERSIBLE PUMP
Classification:
Sewage pump series
Head: 10-15m
Power:0.37-1.5KW
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: CUTTING DEVICE SEWAGE SUBMERSIBLE PUMP
- Commodity ID: ASWQ(D)-1
Flow: 10-20m³/h<br/> Head: 10-15m<br/> Power:0.37-1.5KW
Product Description
This sewage cutting pump is designed with a unique cutting method, and the impeller adopts a semi-open rotary design. The design features high efficiency in cutting dirt, fast discharge, and high efficiency and energy conservation. Cut and crush the debris in general sewage, such as plastic bags and cloth strips, making it difficult to block the sewage discharge. Thimpellerer is made of 3Cr13 material and has undergone heat treatment to increase wear resistance, prevent damage, rust, and prolong the lifespan of the water pump, resulting in higher efficiency.

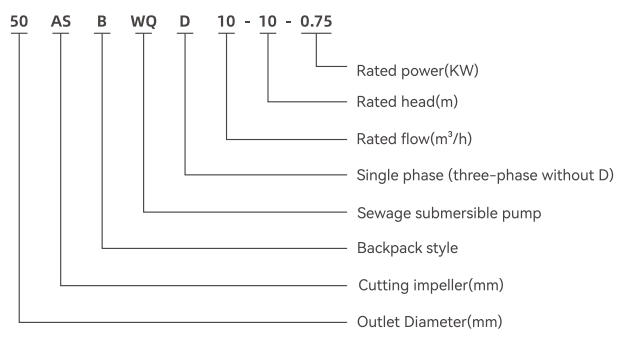

Model Description
Uses and characteristics
This series of electric pumps is used in sewage treatment equipment, pressurized drainage systems, floor ggaragesewage discharge, sewage discharge with sediment in public places such as restaurants, septic tanks, biogas digesters, industrial and agricultural drainage systems, and municipal engineering drainage systems.
-
CUTTING IMPELLER(N)
Wear Resistance
It is made of alloy steel casting
Sharp and not easily damaged
Strong cutting & Efficient drainage
Technical Parameter
NO. Model Pip e diameter Rated flow Rated head Power Voltage Synchronous Current (mm) (m³/h) (m) (KW) (V) (r/ min) (A) 1 50ASBWQ10-10-0.75 50 10 10 0.75 380 3000 1.8 2 50ASBWQD10-10-0.75 50 10 10 0.75 220 3000 5.24 3 50ASBWQ12-10-1.1 50 12 10 1.1 380 3000 2.5 4 50ASBWQD12-10-1.1 50 12 10 1.1 220 3000 7.02 5 50ASBWQ15-15-1.5 50 15 15 1.5 380 3000 3.2 6 50ASBWQD15-15-1.5 50 15 15 1.5 220 3000 9.44 7 65ASBWQ20-12-1.5 65 20 12 1.5 380 3000 3.2 -
Page information is being organized
-

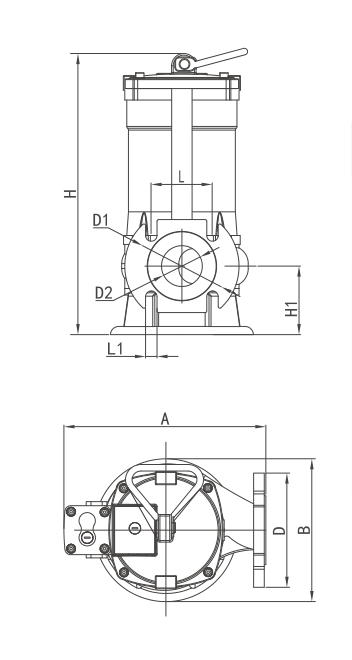

Overall dimension
NO. Model A
(mm)B
(mm)H
(mm)H1
(mm)D D1 n-d D2 1 50ASBWQ10-10-0.75 245 175 380 75 φ140 φ110 4-φ14 φ50 2 50ASBWQD10-10-0.75 245 175 380 75 φ140 φ110 4-φ14 φ50 3 50ASBWQ12-10-1.1 245 175 380 75 φ140 φ110 4-φ14 φ50 4 50ASBWQD12-10-1.1 245 175 380 75 φ140 φ110 4-φ14 φ50 5 50ASBWQ15-15-1.5 435 240 550 125 φ140 φ110 4-φ14 φ50 6 50ASBWQD15-15-1.5 435 240 550 125 φ140 φ110 4-φ14 φ50 7 65ASBWQ20-12-1.5 435 240 550 125 φ160 φ130 4-φ14 φ65
