WQX
SEWAGE SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Head:7~15m
Power: 0.37-1.5kW
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: SEWAGE SUBMERSIBLE PUMP
- Commodity ID: WQX
Flow:5~15m³/h<br/> Head:7~15m<br/> Power: 0.37-1.5kW<br/>
Product Description
The impeller of this sewage pump adopts a semi-open design, which is characterized by high throughput and fast sewage discharge. lt can be used in fields such as wastewater containing solid particles, long fibers, etc

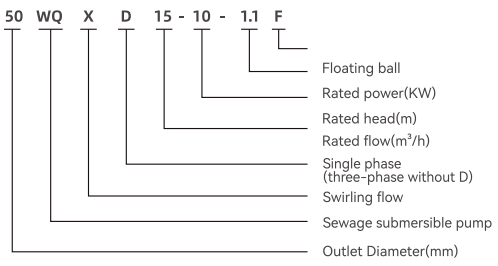

Model Description
Uses and characteristics
This series of electric pumps is a self-developed product with low energy consumption and energy-saving effects, They are widely used in industrial,agricultural, construction, municipal environmental protection and other places.They can pump liquids containing solid particles such as short fibers, paper scraps, sediment, etc., such as mud, mortar, domestic wastewater, sewage,feces, etc. They are ideal water conservancy equipment for agricultural drainage and irrigation, river and pond dredging, but are not suitable for use in environments with explosion-proof requirements.
Conditions of Use
1.Medium temperature does not exceed +40℃
2.The PH value of the medium is between 4 and 10
3.The maximum density of the medium is 1050kg/m³
4. The power frequency is 50Hz, and the voltage fluctuation rangeis 0.9-1.1 times the rated value
5. Diving depth does not exceed 5m
-
1. Class H Enameled Wire:Resistant to high temperature of 180℃ -
2. Rotor Shaft: The overflow part is welded with stainless steel -
3. Larger overflow area, smoother discharge
-

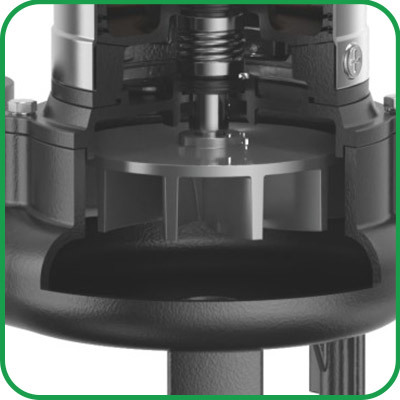

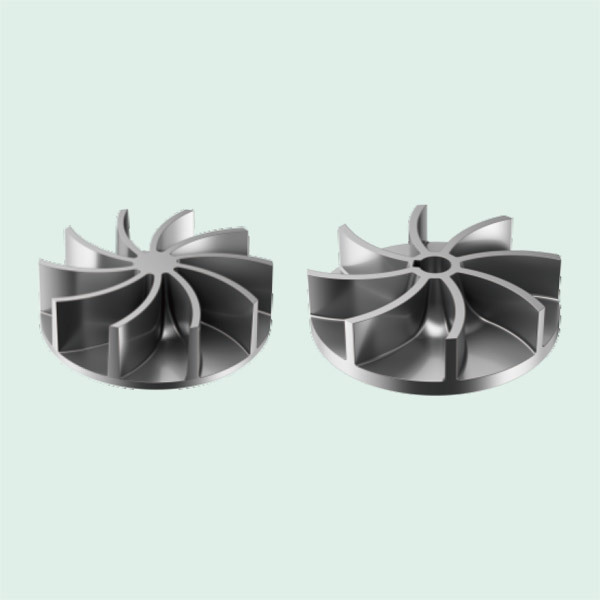

SWIRL IMPELLER
Efficient & Energy Saving
Including good anti-clogging performance, suitable for pumping media containing large particles and long fibers, and the blades are lightly worn and less likely to increase clearances due to wear.
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous (mm) (m³/h) (m) (KW) (V) (r/ min) 1 32WQX5-7-0.37 32 5 7 0.37 380 3000 2 32WQDX5-7-0.37 32 5 7 0.37 220 3000 3 50WQX5-10-0.55 50 5 10 0.55 380 3000 4 50WQDX5-10-0.55 50 5 10 0.55 220 3000 5 50WQX10-10-0.75 50 10 10 0.75 380 3000 6 50WQDX10-10-0.75 50 10 10 0.75 220 3000 7 50WQX12-10-1.1 50 12 10 1.1 380 3000 8 50WQDX12-10-1.1 50 12 10 1.1 220 3000 9 50WQX15-15-1.5 50 15 15 1.5 380 3000 10 50WQDX15-15-1.5 50 15 15 1.5 220 3000 -
