WQ(N)L
SEWAGE SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Head:7~15m
Power: 0.37-1.5kW
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: SEWAGE SUBMERSIBLE PUMP
- Commodity ID: WQ(N)L
Flow:5~15m³/h<br/> Head:7~15m<br/> Power: 0.37-1.5kW<br/>
Product Description
This sewage cutting pump is designed with a unique cutting method, and the impeller adopts a semi-open double helix design. The design features high efficiency in cutting pollutants, fast discharge, and high energy efficiency. Cutting and crushing debris such as plastic bags and cloth strips in general sewage can prevent blockages during discharge. The impeller and cutterhead are made of 440C and 2Cr13 materials, respectively, and have undergone heat treatment to increase wear resistance, prevent damage and rust, and prolong the service life of the water pump; Unique pump design: The channel impeller has high efficiency and unobstructed characteristics, and the maximum particle passing diameter can reach 100mm.

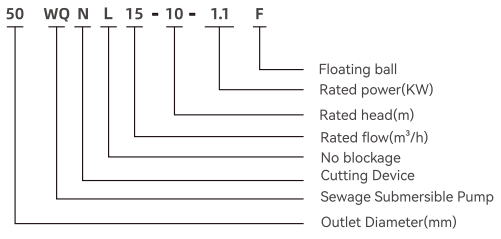

Model Description
Uses and characteristics
This series of electric pumps is a self-developed product with low energy consumption and energy-saving effects. They are widely used in industrial, agricultural, construction, municipal environmental protection, and other places. They can pump liquids containing solid particles such as short fibers, paper scraps, sediment, etc, such as mud, mortar, domestic wastewater, sewage, feces, etc, They are ideal water conservancy equipment for agricuitural drainage and irrigation, river and pond dredging, but are not suitable for use in environments with explosion-proof requirements.
Conditions of Use
1. The medium temperature does not exceed +40℃
2. The PH value of the medium is between 4 and 10
3. The maximum density of the medium is 1050kg/m³
4. The power frequency is 50Hz, and the voltage fluctuation range is 0.9-1.1 times the rated value
5. Diving depth does not exceed 5m
-

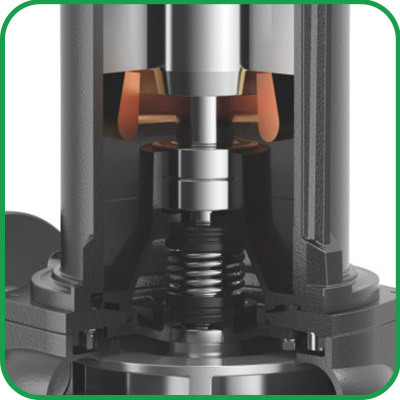

1. Dual Bearings: increase service life and operate more stably -
2. Class H Enameled Wire: Resistant to high temperatures of 180℃ -
3. Rotor Shaft: The overflow part is welded with stainless steel
-
UNOBSTRUCTED IMPELLER(L)
Efficient & Energy Saving
Double helix no clogging,
Good overcurrent capacity, high efficiency -
CUTTING IMPELLER(N)
Wear Resistance
It is made of alloy steel casting
Sharp and not easily damaged
Strong cutting & Efficient drainage
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous (mm) (m³/h) (m) (KW) (V) (r/ min) 1 32WQN(L)5-7-0.37 50 5 10 0.37 380 3000 2 32WQDN(L)5-7-0.37 50 5 10 0.37 220 3000 3 50WQN(L)5-10-0.55 50 5 10 0.55 380 3000 4 50WQDN(L)5-10-0.55 50 5 10 0.55 220 3000 5 50WQN(L)10-10-0.75 50 10 10 0.75 380 3000 6 50WQDN(L)10-10-0.75 50 10 10 0.75 220 3000 7 50WQN(L)15-10-1.1 50 15 10 1.1 380 3000 8 50WQDN(L)15-10-1.1 50 15 10 1.1 220 3000 9 50WQN(L)15-15-1.5 50 15 15 1.5 380 3000 10 50WQDN(L)15-15-1.5 50 15 15 1.5 220 3000 -
