SECOND-GENERATION VERTICAL PIPELINE PUMP

SECOND-GENERATION VERTICAL PIPELINE PUMP

Classification:

Pipeline pumps

Max.Flow:7.2~120m³/h
Max.Head:8~62m
Power: 0.75~7.5kW

Message

E-Mail:admin@lulinpump.com

Tel:400-8820-878

Detail
TP40
TP50
TP65
TP80
TP100

Commodity name: SECOND-GENERATION VERTICAL PIPELINE PUMP
Commodity ID: TP

Max.Flow:7.2~120m³/h<br/> Max.Head:8~62m<br/> Power: 0.75~7.5kW<br/>

● The TP series pipeline pump was designed by our company in collaboration with Jiangsu University. Based on the characteristics of single-stage single-suction pumps and referring to domestic and international industry standards, it was created through scientific, rational, and optimized design with the continuous goal of improving pump efficiency. Its main features are: compact size, small footprint, and moderate weight. Its advantages include: a compact and reasonable structure, energy efficiency, low noise, durability, and easy maintenance, among others.

Main purpose:

● It is designed for pumping diluted, clean, non-corrosive, and room temperature water, as well as liquids with a viscosity below 5°E that have physical and chemical properties similar to water. It is widely used in water supply and drainage, refrigeration, fire fighting, electroplating, chemical engineering, extrusion equipment, environmental sewage treatment, and other system equipment support.

PRODUCT FEATURES

TECHNICAL PARAMETERS

Flow range: 7.2~120 m³/H

Head range: 8~62 m

Caliber range: 40~100 mm

Power range: 0.75~7.5 kW

Speed: 2800/2900/2950 rpm

Medium temperature: -15 ℃ ~ 80 ℃

Ambient temperature: ≤ 40 ℃

STRUCTURE DESCRIPTION

● The entire machine mainly consists of the pump body, impeller, pump cover (vertical cover, motor, and other major parts and components.

● The TP series pumps have their inlet and outlet located on the same central axis, and they are of the same diameter; they can be mounted on pipelines like a valve, making installation easy and simple. The design is top-opening, and for maintenance, only the pump cover and impeller need to be removed, without taking out the pump body or the pipelines on either side of the inlet and outlet. This allows for easy replacement of mechanical seals and the impeller.

● The TP series pumps adopt the most compact horizontal direct-coupled backdoor structure; its advantages include a smaller footprint and easy installation and maintenance (during maintenance, there's no need to disassemble the pump body and its inlet and outlet pipes; simply move the motor backward to remove the impeller, mechanical seals, etc. for maintenance). The pump's inlet and outlet flanges have vent holes, facilitating the release of accumulated gases inside the pump and pressure testing.

● The bottom of the pump has fixed screw holes, making it easy to secure to the installation baseline, enhancing the pump's safe and stable operation.

● The mechanical seal uses a leak-free, wear-resistant mechanical sealing device, ensuring stable and reliable operation with a longer service life.

● The TP pump is driven by the YE2 or YE3 series two-pole motor. TP pumps utilize the low-speed, low-noise 2-pole motors of the YE2 or YE3 series. All rotating components of the motor have undergone strict quality inspections and dynamic balance corrections, making them especially suitable for low-noise environments. The motor uses the extended shaft YE2 or YE3 series squirrel-cage three-phase asynchronous motor, with a protection level of IP55 and insulation class F

Materials:

● The pump body and pump cover (vertical cover) are made of cast iron HT200. The impeller material is either grey cast iron HT250 or impeller cast copper, with the standard being grey cast iron HT200. The motor casing is made of aluminum die-casting. The pump shaft uses SUS304 friction welding. Based on their actual usage environment and conditions, users can choose special materials. (Please specify when ordering.)

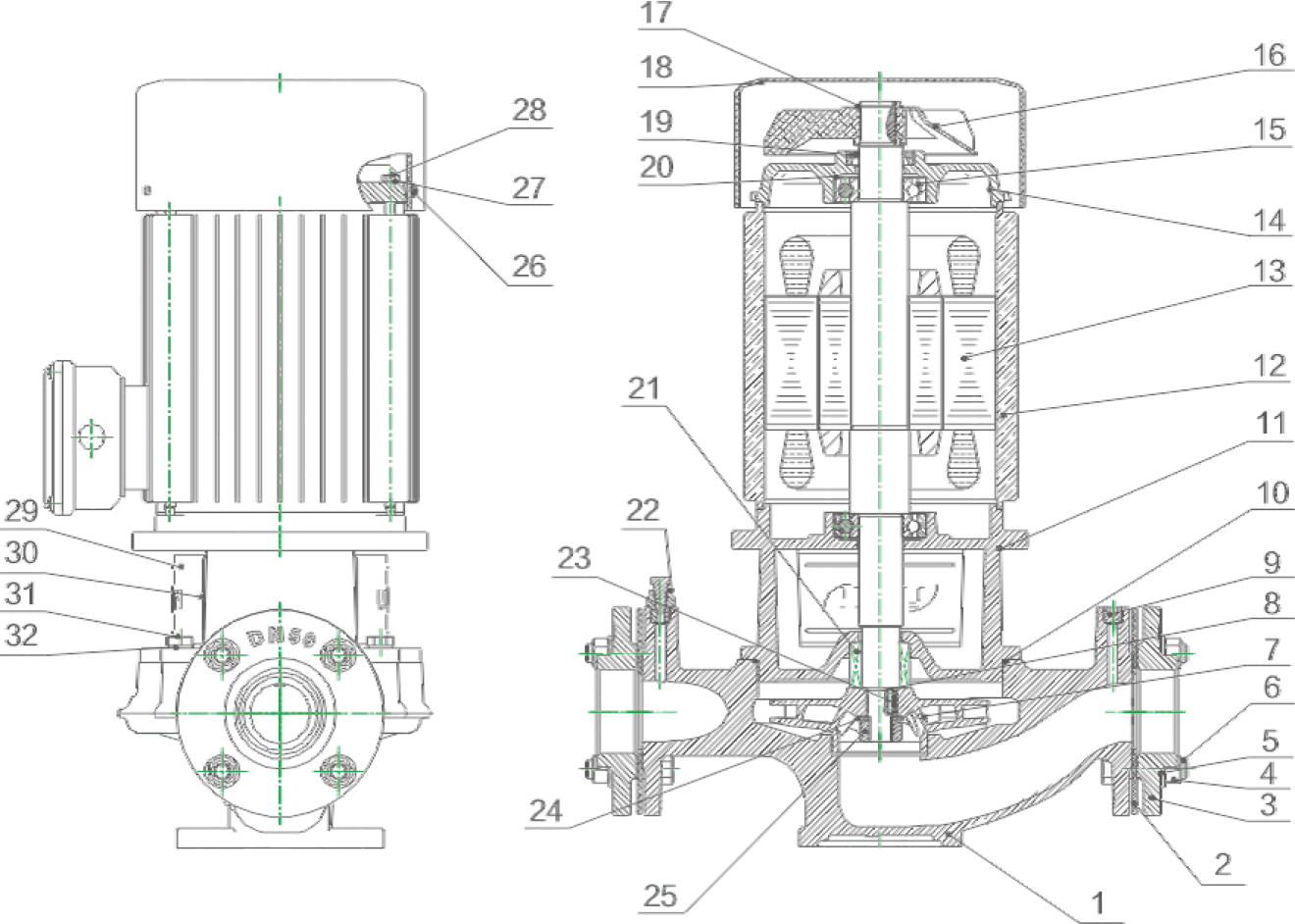

ASSEMBLY SCHEMATIC

Every product, every combination, every detail fully displays different tastes, different personalities,and different cultural connotations.

The inadvertently revealed charm adorns the harmony of the pump industry.

MAIN COMPONENTS AND MATERIALS
The actual appearance and schematic may differ in shape.

NO.	Code	Name
1	TP50-12-01	Pump body
2		DN50Seal gasket
3	PN06/DN50	Flange with neck thread
4	GB/T6170-2015	Type 1 hexagonal nut M12
5	GB/T97.1-2002	Flat washerФ12
6	GB/T5783-2016	Full-threaded hexagonal bolt M12X50
7	TP50-12-02	Impeller
8	TP50-12/1.2-03	Rotor with shaft
9	TD40-09	G1/4 Internal threaded plug
10		O-ring seal135X2.5
11	TP50-12/1.1-04	Connection
12	Y2-80/2	Motor casing component (aluminum)
13	Y2 -80/2-3	Stator coil
14	Y2-80/2	Rear cover
15	6204-zz	Deep groove ball bearing
16		Fan blade
17	GB/T894-2017	Shaft with elastic washer 中19
18		Fan cover
19	JB/T1091-2018	Skeleton oil seal 20X35X7
20	JB-T7590-2005	Steel wave spring D47
21	GY109-19	mechanical seal
22	TD40-10	G1/4 Air valve
23	GB/T1096-2003	Type A flat key 5X5X16
24	GB97.1-2002	Flat washer Ø12
25	GB/T6171-2016	Type 1 fine thread hexagonal nut M12*1.5
26	GB/T818-2016	Cross recessed pan head screw M5X12
27	GB/T859-1987	Light spring washer Ø6
28	GB/T5782-2016	Hexagonal bolt M6X200
29	TP04-1	Protection plate
30	GB/T818-2016	Cross recessed pan head screw M5X6
31	GB/T5783-2016	Full-threaded hexagonal bolt M8X25
32	GB/T859-1987	Light spring washer Ø8

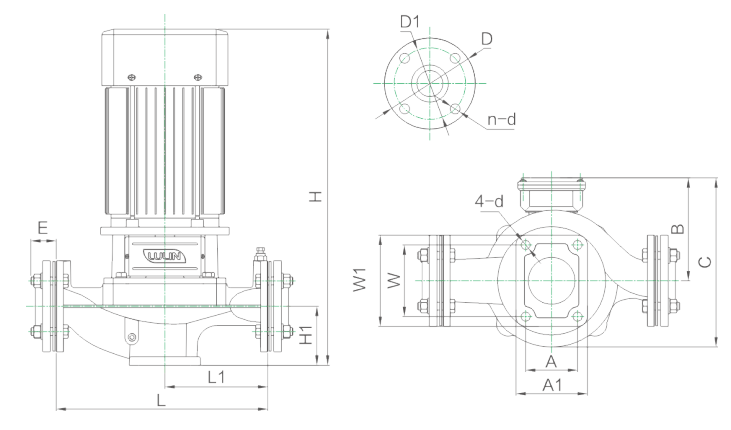

DIMENSIONS

Model	External dimensions												Flange size
Model	L	L1	H	H1	E	B	C	A	A1	W	W1	4-d	D1	D	n-d
TP40-10	305	155	435	85	26	125	210	70	100	110	140	4-φ14	100	130	4-φ14
TP40-15	305	155	435	85	26	125	210	70	100	110	140	4-φ14	100	130	4-φ14
TP40-20	305	155	435	85	26	125	210	70	100	110	140	4-φ14	100	130	4-φ14
TP40-30	330	165	446	90	26	145	255	80	115	120	150	4-φ14	100	130	4-φ14
TP40-50	350	170	575	90	29	170	290	70	100	110	140	4-φ14	100	130	4-φ14
TP50-8	290	150	425	85	32	125	210	70	100	110	140	4-φ14	110	140	4-φ14
TP50-12	305	155	435	85	32	125	210	70	100	110	140	4-φ14	110	140	4-φ14
TP50-15	305	155	447	85	32	145	235	70	100	110	140	4-φ14	110	140	4-φ14
TP50-17	305	155	447	85	32	145	235	70	100	110	140	4-φ14	110	140	4-φ14
TP50-20	305	155	447	85	32	145	235	70	100	110	140	4-φ14	110	140	4-φ14
TP50-25	330	170	446	91	32	145	255	80	115	120	150	4-φ14	110	140	4-φ14
TP50-30	330	170	520	91	32	160	260	80	115	120	150	4-φ14	110	140	4-φ14
TP50-40	330	170	577	91	32	166	280	80	115	120	150	4-φ14	110	140	4-φ14
TP50-50	355	175	642	120	32	190	325	80	115	120	150	4-φ14	110	140	4-φ14
TP50-60	355	175	642	120	32	190	320	80	115	120	150	4-φ14	110	140	4-φ14
TP65-10	310	165	480	115	32	145	240	100	135	140	170	4-φ14	130	160	4-φ14
TP65-16	310	165	480	115	32	145	240	100	135	140	170	4-φ14	130	160	4-φ14
TP65-19	310	165	480	115	32	145	240	100	135	140	170	4-φ14	130	160	4-φ14
TP65-25	340	170	560	120	32	160	270	100	135	140	170	4-φ14	130	160	4-φ14
TP65-30	345	175	610	120	32	170	280	100	135	140	170	4-φ14	130	160	4-φ14
TP65-40	370	180	610	120	32	190	320	100	135	140	170	4-φ14	130	160	4-φ14
TP65-50	370	180	640	125	32	190	320	100	135	140	170	4-φ20	130	160	4-φ14
TP80-14	375	175	612	126	36	170	290	100	135	140	170	4-φ14	150	185	4-φ14
TP80-21	375	175	612	126	36	170	290	100	135	140	170	4-φ14	150	185	4-φ14
TP80-30	370	175	644	126	36	190	320	100	135	140	170	4-φ14	150	185	4-φ14
TP80-40	455	220	663	140	36	190	325	150	160	160	190	4-φ17	160	200	8-φ18
TP100-10	440	205	652	155	40	170	285	150	160	160	190	4-φ14	170	205	4-φ14
TP100-16	380	180	636	150	40	170	280	150	160	160	190	4-φ14	170	205	4-φ14
TP100-19	440	205	685	155	40	190	320	100	135	140	170	4-φ14	170	205	4-φ14
TP100-19A	440	205	685	155	40	190	320	100	135	140	170	4-φ14	170	205	4-φ14
TP100-19B	440	205	685	155	40	190	320	100	135	140	170	4-φ14	170	205	4-φ14
TP100-21	380	180	670	150	40	190	320	150	160	160	190	4-φ14	170	205	4-φ14
TP100-30	380	180	670	150	40	190	320	150	160	160	190	4-φ14	170	205	4-φ14

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Shaft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH) r(m)	Inlet and outlet diameter(mm)	weight (kg)
	m³/h	l/s				kW	v
TP40-10	7.2	2.00	11	2900	0.43	0.75	220/380 50Hz	50	3.2	40	25
	11.4	3.16	10		0.56			55
	15.6	4.30	9		0.72			53
TP40-15	7.2	2.00	16	2900	0.63	1.1	220/380 50Hz	50	3.2	40	29
	11.4	3.16	15		0.79			58.5
	15.6	4.30	12		0.89			57
TP40-20	7.2	2.00	20.5	2900	0.79	1.5	220/380 50Hz	52	3.2	40	33
	11.4	3.16	20		1.03			60
	15.6	4.30	18		1.25			62
TP40-30	7.2	2.00	33	2900	1.32	2.2	220/380 50Hz	44	3.2	40	38
	11.4	3.16	30		1.55			60
	15.6	4.30	27.5		1.96			59
TP40-50	7.2	2.00	53	2900	2.58	4.0	380/660 50Hz	38	3.2	40	61
	11.4	3.16	50		3.10			48
	15.6	4.30	48		3.83			51

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Shaft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH) r(m)	Inlet and outlet diameter(mm)	Weight (kg)
	m³/h	l/s				kW	v
TP40-10	7.2	2.00	11	2900	0.43	0.75	220/380 50Hz	50	3.2	40	25
	11.4	3.16	10		0.56			55
	15.6	4.30	9		0.72			53
TP40-15	7.2	2.00	16	2900	0.63	1.1	220/380 50Hz	50	3.2	40	29
	11.4	3.16	15		0.79			58.5
	15.6	4.30	12		0.89			57
TP40-20	7.2	2.00	20.5	2900	0.79	1.5	220/380 50Hz	52	3.2	40	33
	11.4	3.16	20		1.03			60
	15.6	4.30	18		1.25			62
TP40-30	7.2	2.00	33	2900	1.32	2.2	220/380 50Hz	44	3.2	40	38
	11.4	3.16	30		1.55			60
	15.6	4.30	27.5		1.96			59
TP40-50	7.2	2.00	53	2900	2.58	4.0	380/660 50Hz	38	3.2	40	61
	11.4	3.16	50		3.10			48
	15.6	4.30	48		3.83			51

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Shaft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH) r(m)	Inlet and outlet diameter(mm)	Weight (kg)
	m³/h	l/s				kW	v
TP50-8	10.8	3.0	9.5	2900	0.60	0.75	220/380 50Hz	46.5	3.5	50	26
	18.0	5.0	8		0.63			62.0
	21.6	6.0	7.5		0.73			60.0
TP50-12	10.8	3.0	13	2900	0.68	1.1	220/380 50Hz	56	3.5	50	27
	18.0	5.0	12		0.87			68
	21.6	6.0	11		0.97			67
TP50-15	10.8	3.0	16.2	2900	0.85	1.5	220/380 50Hz	56	3.5	50	32
	18.0	5.0	15		1.08			68
	21.6	6.0	13.8		1.21			67
TP50-17	10.8	3.0	18.4	2900	1.00	1.5	220/380 50Hz	54	3.5	50	32
	18.0	5.0	17		1.26			66
	21.6	6.0	15.6		1.40			67
TP50-20	7.5	2.08	22	2900	1.00	1.5	220/380 50Hz	45	2.5	50	32
	12.5	3.47	20		1.17			58
	15.0	4.17	18.5		1.31			58
TP50-25	10.8	3.0	27	2900	1.72	2.2	220/380 50Hz	46	3.5	50	39
	18.0	5.0	25		2.11			58
	21.6	6.0	21		2.12			58
TP50-30	10.8	3.0	32	2900	2.00	3	220/380 50Hz	46.0	3.5	50	46
	18.0	5.0	30		2.51			58.5
	21.6	6.0	26		2.64			58.0
TP50-40	10.8	3.0	42	2900	2.75	4	380/660 50Hz	45	3.5	50	57
	18.0	5.0	40		3.56			55
	21.6	6.0	33		3.61			58
TP50-50	10.8	3.0	52	2900	3.57	5.5	380/660 50Hz	40	3.5	50	82
	18	5.0	50		4.71			52
	21.6	6.0	42		4.86			58
TP50-60	10.8	3.0	62	2900	4.79	7.5	380/660 50Hz	38	3.5	50	86

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Sha ft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH) r(m)	Inlet and outlet diameter(mm)	Weight (kg)
	m³/h	1/s				kW	v
TP50-8	10.8	3.0	9.5	2900	0.60	0.75	220/380 50Hz	46.5	3.5	50	26
	18.0	5.0	8		0.63			62.0
	21.6	6.0	7.5		0.73			60.0
TP50-12	10.8	3.0	13	2900	0.68	1.1	220/380 50Hz	56	3.5	50	27
	18.0	5.0	12		0.87			68
	21.6	6.0	11		0.97			67
TP50-15	10.8	3.0	16.2	2900	0.85	1.5	220/380 50Hz	56	3.5	50	32
	18.0	5.0	15		1.08			68
	21.6	6.0	13.8		1.21			67
TP50-17	10.8	3.0	18.4	2900	1.00	1.5	220/380 50Hz	54	3.5	50	32
	18.0	5.0	17		1.26			66
	21.6	6.0	15.6		1.40			67
TP50-20	7.5	2.08	22	2900	1.00	1.5	220/380 50Hz	45	2.5	50	32
	12.5	3.47	20		1.17			58
	15.0	4.17	18.5		1.31			58
TP50-25	10.8	3.0	27	2900	1.72	2.2	220/380 50Hz	46	3.5	50	39
	18.0	5.0	25		2.11			58
	21.6	6.0	21		2.12			58
TP50-30	10.8	3.0	32	2900	2.00	3	220/380 50Hz	46.0	3.5	50	46
	18.0	5.0	30		2.51			58.5
	21.6	6.0	26		2.64			58.0
TP50-40	10.8	3.0	42	2900	2.75	4	380/660 50Hz	45	3.5	50	57
	18.0	5.0	40		3.56			55
	21.6	6.0	33		3.61			58
TP50-50	10.8	3.0	52	2900	3.57	5.5	380/660 50Hz	40	3.5	50	82
	18	5.0	50		4.71			52
	21.6	6.0	42		4.86			58
TP50-60	10.8	3.0	62	2900	4.79	7.5	380/660 50Hz	38	3.5	50	86
	18.0	5.0	60		5.88			50
	21.6	6.0	52		5.99			51

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Shaft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH) r(m)	Inlet and outlet diameter(mm)	Weight (kg)
	m³/h	l/s				kW	v
TP65-10	15	4.17	11	2900	0.74	1.5	220/380 50Hz	60	3.5	65	38
	25	6.94	10		0.97			70
	30	8.33	9		1.07			69
TP65-16	15	4.17	17.6	2900	1.20	2.2	220/380 50Hz	60	3.5	65	41
	25	6.94	16		1.55			70
	30	8.33	14.5		1.71			69
TP65-19	15	4.17	21	2900	1.43	2.2	220/380 50Hz	60	3.5	65	41
	25	6.94	19		1.85			70
	30	8.33	17		2.01			69
TP65-25	15	4.17	27	2900	2.08	3	220/380 50Hz	53	3.5	65	51
	25	6.94	25		2.60			65
	30	8.33	22		2.89			62
TP65-30	15	4.17	32	2900	2.49	4	380/660 50Hz	52.5	3.5	65	61
	25	6.94	30		3.16			64.5
	30	8.33	27		3.56			62.0
TP65-40	15	4.17	43	2900	3.44	5.5	380/660 50Hz	51	3.5	65	83
	25	6.94	40		4.53			60
	30	8.33	35		4.92			58
TP65-50	15	4.17	53	2900	4.61	7.5	380/660 50Hz	47	3.5	65	88
	25	6.94	50		6.10			56
	30	8.33	45		6.70			55

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Shaft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH) r(m)	Inlet and outlet diameter(mm)	Weight (kg)
	m³/h	1/s				kW	v
TP65-10	15	4.17	11	2900	0.74	1.5	220/380 50Hz	60	3.5	65	38
	25	6.94	10		0.97			70
	30	8.33	9		1.07			69
TP65-16	15	4.17	17.6	2900	1.20	2.2	220/380 50Hz	60	3.5	65	41
	25	6.94	16		1.55			70
	30	8.33	14.5		1.71			69
TP65-19	15	4.17	21	2900	1.43	2.2	220/380 50Hz	60	3.5	65	41
	25	6.94	19		1.85			70
	30	8.33	17		2.01			69
TP65-25	15	4.17	27	2900	2.08	3	220/380 50Hz	53	3.5	65	51
	25	6.94	25		2.60			65
	30	8.33	22		2.89			62
TP65-30	15	4.17	32	2900	2.49	4	380/660 50Hz	52.5	3.5	65	61
	25	6.94	30		3.16			64.5
	30	8.33	27		3.56			62.0
TP65-40	15	4.17	43	2900	3.44	5.5	380/660 50Hz	51	3.5	65	83
	25	6.94	40		4.53			60
	30	8.33	35		4.92			58
TP65-50	15	4.17	53	2900	4.61	7.5	380/660 50Hz	47	3.5	65	88
	25	6.94	50		6.10			56
	30	8.33	45		6.70			55

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Shaft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH) r(m)	Inlet and outlet diameter(mm)	Weight (kg)
	m³/h	l/s				kW	v
TP80-14	30	8.30	16	2900	2.00	4	220/380 50Hz	65	2.5	80	50
	42	1.67	14		2.20			72
	54	15.00	12		2.55			69
TP80-21	30	8.30	24	2900	2.80	5.5	380/660 50Hz	67	2.5	80	62
	42	11.67	21		3.25			74
	54	15.00	16		3.93			71
TP80-30	30	8.30	33	2900	4.22	7.5	380/660 50Hz	62.0	2.5	80	88
	42	11.67	30		4.70			72.5
	54	15.00	23		5.46			65.0
TP80-40	30	8.30	43	2900	5.38	3	380/660 50Hz	65.0	2.5	80	102
	42	11.67	40		6.60			69.5
	54	15.00	32		7.00			67.0

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Shaft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH) r(m)	Inlet and outlet diameter(mm)	Weight (kg)
	m³/h	l/s				kW	v
TP80-14	30	8.30	16	2900	2.00	4	220/380 50Hz	65	2.5	80	50
	42	1.67	14		2.20			72
	54	15.00	12		2.55			69
TP80-21	30	8.30	24	2900	2.80	5.5	380/660 50Hz	67	2.5	80	62
	42	11.67	21		3.25			74
	54	15.00	16		3.93			71
TP80-30	30	8.30	33	2900	4.22	7.5	380/660 50Hz	62.0	2.5	80	88
	42	11.67	30		4.70			72.5
	54	15.00	23		5.46			65.0
TP80-40	30	8.30	43	2900	5.38	3	380/660 50Hz	65.0	2.5	80	102
	42	11.67	40		6.60			69.5
	54	15.00	32		7.00			67.0

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Shaft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH) r(m)	Inlet and outlet diameter(mm)	Weight (kg)
	m³/h	l/s				kW	v
TP100-10	50	13.9	11	2900	2.40	4	380/660 50Hz	62	4	100	71
	80	22.2	10		2.90			75
	110	30.6	9		3.64			74
TP100-16	35	9.72	19	2900	2.82	4	380/660 50Hz	64	4	100	67
	48	13.30	16		2.90			71
	60	16.70	13		3.07			69
TP100-19	60	16.7	21	2900	5.44	7.5	380/660 50Hz	69	4	100	94
	90	25.0	19		6.20			75
	120	33.3	14		6.85			74
TP100-19A	50	13.9	17	2900	3.73	5.5	380/660 50Hz	62	4	100	90
	80	22.2	15		4.35			75
	110	30.6	11.5		4.53			76
TP100-19B	50	13.9	19	2900	4.17	5.5	380/660 50Hz	62	4	100	90
	66	22.2	18		4.31			75
	80	30.6	15		4.41			74
TP100-21	39	10.8	24	2900	3.98	5.5	380/660 50Hz	64	3	100	83
	60	16.7	21		4.70			73
	75	20.8	16		4.74			69
TP100-30	30	8.3	32	2900	4.48	7.5	380/660 50Hz	62	3.5	100	86
	50	13.9	30		5.27			70
	60	16.7	23		5.77			68

PERFORMANCE PARAMETERS

Model	Flow Q		Head H(m)	Speed (r/ min)	Shaft power (kW)	Motor		Efficiency η(%)	Net Positive Suction Head (NPSH)r(m)	Inlet and outlet diameter(mm)	Weight (kg)
	m³/h	l/s				kW	v
TP100-10	50	13.9	11	2900	2.40	4	380/660 50Hz	62	4	100	71
	80	22.2	10		2.90			75
	110	30.6	9		3.64			74
TP100-16	35	9.72	19	2900	2.82	4	380/660 50Hz	64	4	100	67
	48	13.30	16		2.90			71
	60	16.70	13		3.07			69
TP100-19	60	16.7	21	2900	5.44	7.5	380/660 50Hz	69	4	100	94
	90	25.0	19		6.20			75
	120	33.3	14		6.85			74
TP100-19A	50	13.9	17	2900	3.73	5.5	380/660 50Hz	62	4	100	90
	80	22.2	15		4.35			75
	110	30.6	11.5		4.53			76
TP100-19B	50	13.9	19	2900	4.17	5.5	380/660 50Hz	62	4	100	90
	66	22.2	18		4.31			75
	80	30.6	15		4.41			74
TP100-21	39	10.8	24	2900	3.98	5.5	380/660 50Hz	64	3	100	83
	60	16.7	21		4.70			73
	75	20.8	16		4.74			69
TP100-30	30	8.3	32	2900	4.48	7.5	380/660 50Hz	62	3.5	100	86
	50	13.9	30		5.27			70
	60	16.7	23		5.77			68

Keywords:

Pipeline pumps

COOKIES

required

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

analyze

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

Feature

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

advertise

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.

SECOND-GENERATION VERTICAL PIPELINE PUMP

COOKIES

Sorry，当前栏目暂无内容!

Sorry，The current column has no content!
