WF(N)L
CUTTING SEWAGE SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Head:9~55m
Power:0.75~7.5kW
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail
- Curve chart
- Installation diagram
-
- Commodity name: CUTTING SEWAGE SUBMERSIBLE PUMP
- Commodity ID: WF(N)L
Flow: 10~80m³/h<br/> Head:9~55m<br/> Power:0.75~7.5kW
Product Description
This sewage cutting pump is designed with a unique cutting method，and the impeller adopts a semi open double helix design. The design features high efficiency in cutting pollutants, fast discharge, and high energy efficiency.Cutting and crushing debris such as plastic bags and cloth strips in general sewage can prevent blockages during discharge. The impeller and cutterhead are made of 440C and 2Cr13materials, respectively, and have undergone heat treatment to increase wear resistance, prevent damage and rust, and prolong the service life of the water pump; Unique pump design: The channel impeller has high efficiency and unobstructed characteristics, and the maximum particle passing diameter can reach 100mm.

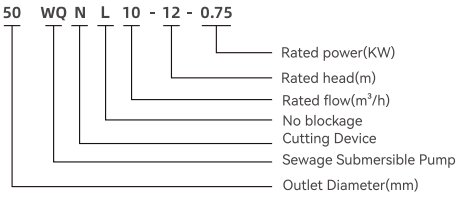

Model Description
Uses and characteristics
This series of electric pumps is a self-developed product with low energy consumption and energy-saving effects. They are widely used in industrial, agricultural, construction, municipal environmental protection and other places. They can pump liquids containing solid particles such as short fibers, paper scraps, sediment, etc., such as mud, mortar, domestic wastewater, sewage, feces, etc.They are ideal water conservancy equipment for agricultural drainage and irrigation，river and pond dredging, but are not suitable for use in environments with explosion-proof requirements.
Conditions of Use
1. Medium temperature not exceeding+40℃
2. The pH value of the medium is between 4 and 10
3. The maximum density of the medium is 1200kg/m³
4. The power frequency is 50Hz, and the voltage fluctuation range is 0.9-1.1 times the rated value
5. Diving depth not exceeding 5m
-

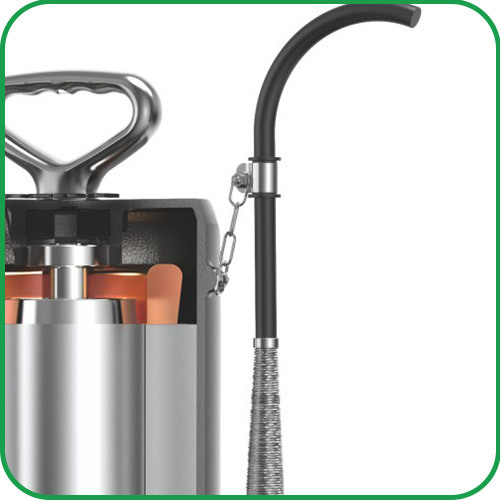

1. Chain: Anti-pulling -
2. Metal Sheath: Anti-bending -

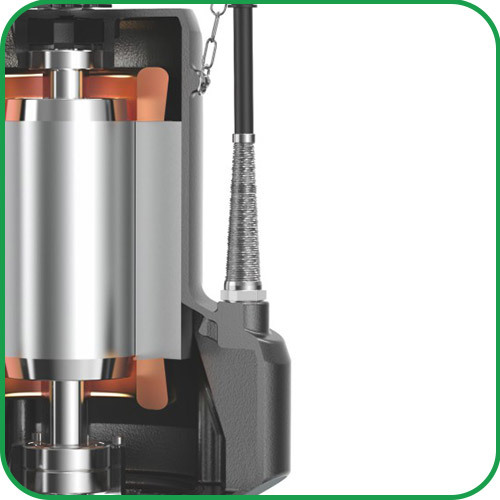

3. Dual Bearings: Longer service life & more stable operation -
4. Class H Enameled Wire:
Resistant to high temperature of 180℃ -
5.Rotor Shaft: The overflow part is welded with stainless steel -

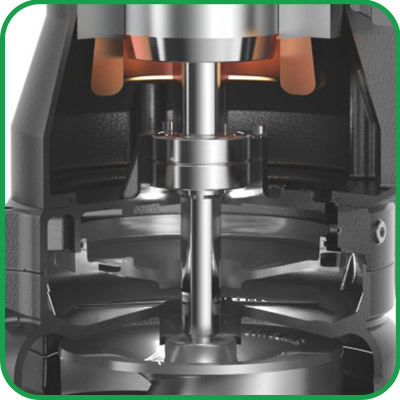

6. Ceramic Shaft Sleeve: Wear-resistant,high hardness,long service life, strong corrosion resistance
-
UNOBSTRUCTED IMPELLER(L)
Efficient & Energy Saving
Double helix no clogging,
Good overcurrent capacity, high efficiency -
CUTTING IMPELLER(N)
Wear Resistance
Is made of alloy steel casting
Sharp and not easily damaged
Strong cutting & Efficient drainage
-
Technical Parameter
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous (mm) (m³/h) (m) (KW) (V) (r/ min) 1 50WF(N)L10-12-0.75 50 10 12 0.75 380 3000 2 50WFD(N)L10-12-0.75 50 10 12 0.75 220 3000 3 50WF(N)L12-15-1.1 50 12 15 1.1 380 3000 4 50WFD(N)L12-15-1.1 50 12 15 1.1 220 3000 5 50WF(N)L15-18-1.5 50 15 18 1.5 380 3000 6 50WFD(N)L15-18-1.5 50 15 18 1.5 220 3000 7 50WF(N)L10-30-2.2 50 10 30 2.2 380 3000 8 50WFD(N)L10-30-2.2 50 10 30 2.2 220 3000 9 65WF(N)L30-14-2.2 65 30 14 2.2 380 3000 10 65WFD(N)L30-14-2.2 65 30 14 2.2 220 3000 11 80WF(N)L45-9-2.2 80 45 9 2.2 380 3000 12 80WFD(N)L45-9-2.2 80 45 9 2.2 220 3000 13 50WF(N)L12-33-3 50 12 33 3 380 3000 14 65WF(N)L35-17-3 65 35 17 3 380 3000 15 80WF(N)L50-12-3 80 50 12 3 380 3000 16 50WF(N)L15-35-4 50 15 35 4 380 3000 17 65WF(N)L25-28-4 65 25 28 4 380 3000 18 80WF(N)L48-18-4 80 45 18 4 380 3000 19 50WF(N)L15-50-5.5 50 15 50 5.5 380 3000 20 65WF(N)L-30-32-5.5 65 30 32 5.5 380 3000 21 80WF(N)L50-22-5.5 80 50 22 5.5 380 3000 22 100WF(N)L70-15-5.5 100 70 15 5.5 380 3000 23 50WF(N)L20-55-7.5 50 20 55 7.5 380 3000 24 65WF(N)L35-40-7.5 65 35 40 7.5 380 3000 25 80WF(N)L60-25-7.5 80 60 25 7.5 380 3000 26 100WF(N)L80-20-7.5 100 80 20 7.5 380 3000 Note: WF can be customized to unblocked impeller or cutting impeller.
-
