WQ(N)L TYPE C
SEWAGE SUBMERSIBLE PUMP
Classification:
Submersible sewage pump
Head:10~50m
Power: 0.75~7.5kW
E-Mail:admin@lulinpump.com
Tel:400-8820-878
- Detail

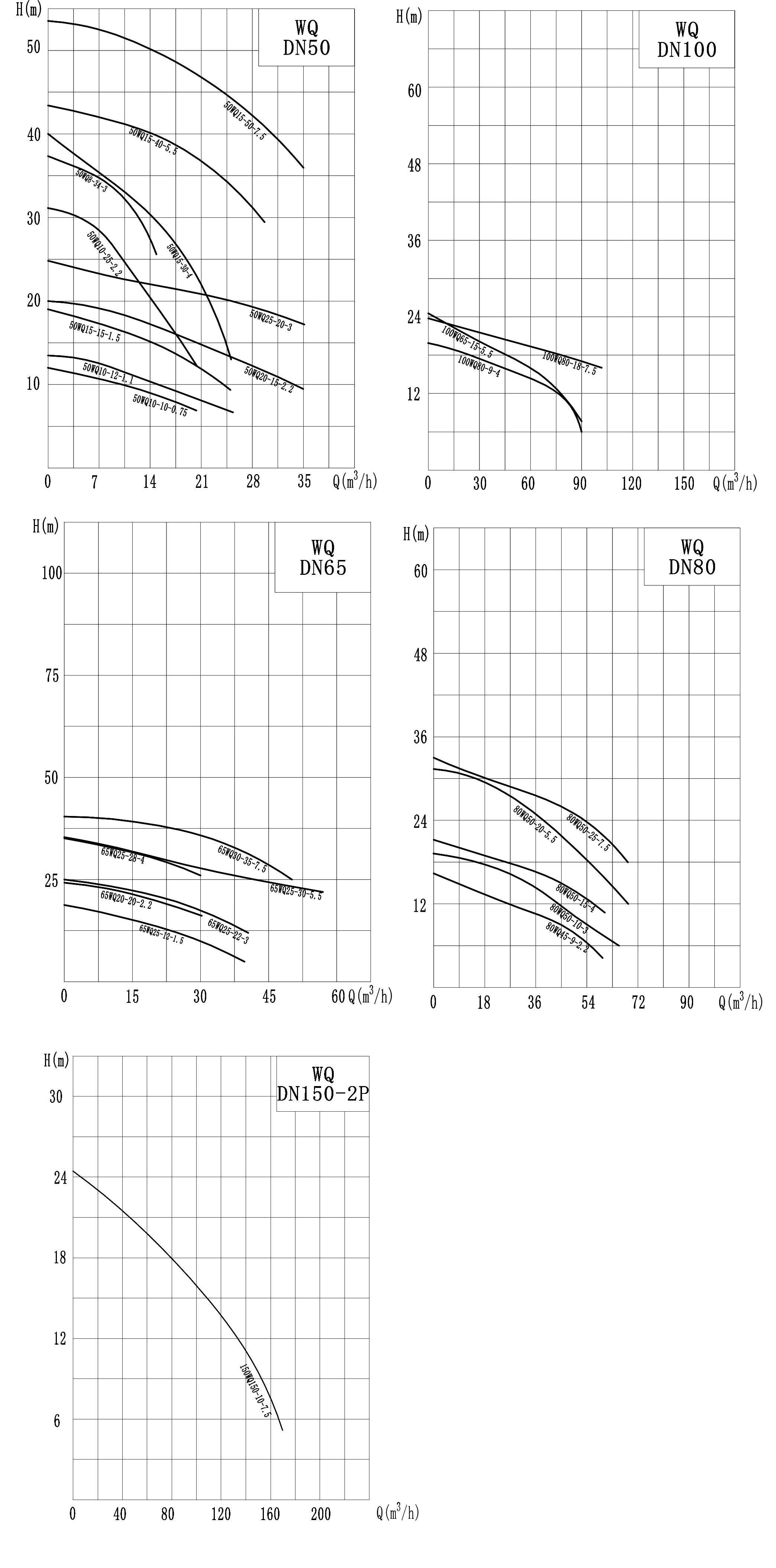

- Curve chart
- Installation diagram
-
- Commodity name: SEWAGE SUBMERSIBLE PUMP
- Commodity ID: WQ(N)L TYPE C
Flow: 10~150m³/h<br/> Head:10~50m<br/> Power: 0.75~7.5kW<br/>
Product Description
The electric pump follows the GB 24674-2021 standard and can be equipped with a stirring device according to customer requirements. This device generates a strong stirring force with the rotation of the motor shaft, stirring the sediment in the sewage tank into suspended solids and then discharging them.
The pump motor is manufactured using advanced technology imported from abroad, featuring efficient non-standard design, reliable operation, and low cost. The motor casing is made of high-quality stainless steel material, and the motor is self-cooled by water. When the pump is working, the motor part can be exposed to the water for long-term operation, avoiding the fatal problem of only allowing a small part of the motor to be exposed during the operation of domestic sewage pumps, otherwise, it may cause the motor to burn out. Unique pump design: The channel impeller has high efficiency and non dogging characteristics, with a maximum particle diameter of up to 100mm

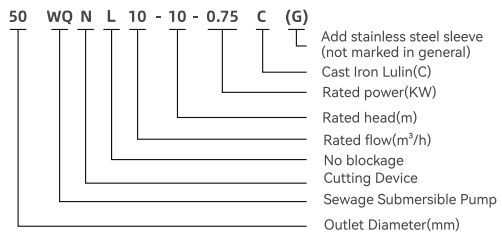

Model Description
Uses and characteristics
This series of electric pumps is a self-developed product with low energy consumption and energy-saving effects, They are widely used in industrial, agricultural, construction, municipal environmental protection, and other places. They can pump liquids containing solid particles such as short fibers, paper scraps, sediment, etc, such as mud, mortar, domestic wastewater, sewage, feces, etc. They are ideal water conservancy equipment for agricultural drainage and irrigation, as well as river and pond dredging, but they are not suitable for use in environments with explosion-proof requirements.
Conditions of Use
1. Medium temperature not exceeding +40℃
2. The pH value of the medium is between 4 and 10
3.The maximum density of the medium is 1050 kg/m³
4. The power frequency is 50Hz, and the voltage fluctuation range is 0.9-1.1 times the rated value
5. Diving depth not exceeding 5m
-
1. Cooling System: Dry construction, the motor is cooled by a patented closed-loop cooling system -
2. Class H enameled Wire: Resistant to high temperature of 180℃ -
3. Rotor Shaft: The overflow part is welded with stainless steel
-
UNOBSTRUCTED IMPELLER(L)
Efficient & Energy Saving
Double helix no clogging,
Good overcurrent capacity, high efficiency -
CUTTING IMPELLER(N)
Wear Resistance
It is made of alloy steel casting
Sharp and not easily damaged
Strong cutting & Efficient drainage
Technical Parameter
NO. Model Pipe diameter Rated flow Rated head Power Voltage Synchronous Current (mm) (m³/h) (m) (KW) (V) (r/ min) (A) 1 50WQ10-10-0.75C(G) 50 10 10 0.75 380 2900 1.8 2 50WQ10-12-1.1C(G) 50 10 12 1.1 380 2900 2.5 3 50WQ15-15-1.5C(G) 50 15 15 1.5 380 2900 3.2 4 65WQ18-15-1.5C(G) 65 18 15 1.5 380 2900 3.2 5 50WQ15-20-2.2C(G) 50 15 20 2.2 380 2900 4.8 6 50WQ10-30-2.2C(G) 50 10 30 2.2 380 2900 4.8 7 65WQ25-18-2.2C(G) 65 25 18 2.2 380 2900 4.8 8 80WQ45-9-2.2C(G) 80 45 9 2.2 380 2900 4.8 9 50WQ25-20-3C(G) 50 25 20 3 380 2900 6.4 10 50WQ8-34-3C(G) 50 8 34 3 380 2900 6.4 11 65WQ35-17-3C(G) 65 35 17 3 380 2900 6.4 12 80WQ50-10-3C(G) 80 50 10 3 380 2900 6.4 13 50WQ15-30-4C(G) 50 15 30 4 380 2900 8.2 14 65WQ25-28-4C(G) 65 25 28 4 380 2900 8.2 15 80WQ50-17-4C(G) 80 50 17 4 380 2900 8.2 16 100WQ80-10-4C(G) 100 80 10 4 380 2900 8.2 17 50WQ10-40-5.5C(G) 50 10 40 5.5 380 2900 11.5 18 65WQ25-32-5.5C(G) 65 25 32 5.5 380 2900 11.5 19 80WQ50-20-5.5C(G) 80 50 20 5.5 380 2900 11.5 20 100WQ65-15-5.5C(G) 100 65 15 5.5 380 2900 11.5 21 50WQ15-50-7.5C(G) 50 15 50 7.5 380 2900 16.6 22 65WQ40-30-7.5C(G) 65 40 30 7.5 380 2900 16.6 23 80WQ50-25-7.5C(G) 80 50 25 7.5 380 2900 16.6 24 100WQ80-21-7.5C(G) 100 80 21 7.5 380 2900 16.6 25 150WQ150-10-7.5C(G) 150 150 10 7.5 380 2900 16.6 -
-

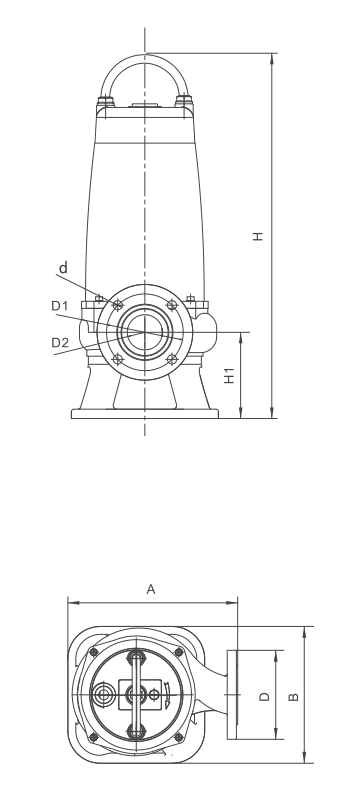

Overall dimension
NO. Model A
(mm)B
(mm)H
(mm)H1
(mm)D D1 n-d D2 1 50WQ10-10-0.75C(G) 245 210 375 110 50 φ110 4-φ14 φ50 2 50WQ10-12-1.1C(G) 245 210 375 110 50 φ110 4-φ14 φ50 3 50WQ15-15-1.5C(G) 255 200 425 110 50 φ110 4-φ14 φ50 4 65WQ18-15-1.5C(G) 255 200 425 130 65 φ130 4-φ14 φ65 5 50WQ15-20-2.2C(G) 255 200 425 110 50 φ110 4-φ14 φ50 6 50WQ10-30-2.2C(G) 265 240 435 110 50 φ110 4-φ14 φ50 7 65WQ25-18-2.2C(G) 255 200 425 130 65 φ130 4-φ14 φ65 8 80WQ45-9-2.2C(G) 290 250 460 150 80 φ150 4-φ18 φ80 9 50WQ25-20-3C(G) 255 200 465 110 50 φ110 4-φ14 φ50 10 50WQ8-34-3C(G) 265 240 475 110 50 φ110 4-φ14 φ50 11 65WQ35-17-3C(G) 255 200 470 130 65 φ130 4-φ14 φ65 12 80WQ50-10-3C(G) 290 250 500 150 80 φ150 4-φ18 φ80 13 50WQ15-30-4C(G) 265 240 475 110 50 φ110 4-φ14 φ50 14 65WQ25-28-4C(G) 270 240 470 130 65 φ130 4-φ14 φ65 15 80WQ50-17-4C(G) 290 250 500 150 80 φ150 4-φ18 φ80 16 100WQ80-10-4C(G) 290 250 500 170 100 φ170 4-φ18 φ100 17 50WQ10-40-5.5C(G) 305 245 515 110 50 φ110 4-φ14 φ50 18 65WQ25-32-5.5C(G) 305 245 525 130 65 φ130 4-φ14 φ65 19 80WQ50-20-5.5C(G) 305 245 525 150 80 φ150 4-φ18 φ80 20 100WQ65-15-5.5C(G) 320 270 540 170 100 φ170 4-φ18 φ100 21 50WQ15-50-7.5C(G) 305 245 580 110 50 φ110 4-φ14 φ50 22 65WQ40-30-7.5C(G) 305 245 590 130 65 φ130 4-φ14 φ65 23 80WQ50-25-7.5C(G) 305 240 590 150 80 φ150 4-φ18 φ80 24 100WQ80-21-7.5C(G) 325 265 610 170 100 φ170 4-φ18 φ100 25 150WQ150-10-7.5C(G) 340 295 635 225 150 φ225 8-φ18 φ150
